S0607 Volvo TD40A DAF Starter Motor Wholesale

S0607 Starter Motor Distributor Application Guide for Volvo TD40A and DAF Roadrunner

For a fleet parts team, S0607 identifies one Volvo TD40A and DAF Roadrunner requirement. The 12V 3.0kW 9T catalog configuration for compact commercial-vehicle applications provides a clear fitment boundary for sample, stock and replacement reviews.

Send the full S0607 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

S0607 Starter Motor Drive-End Drawing for Aftermarket Distributors

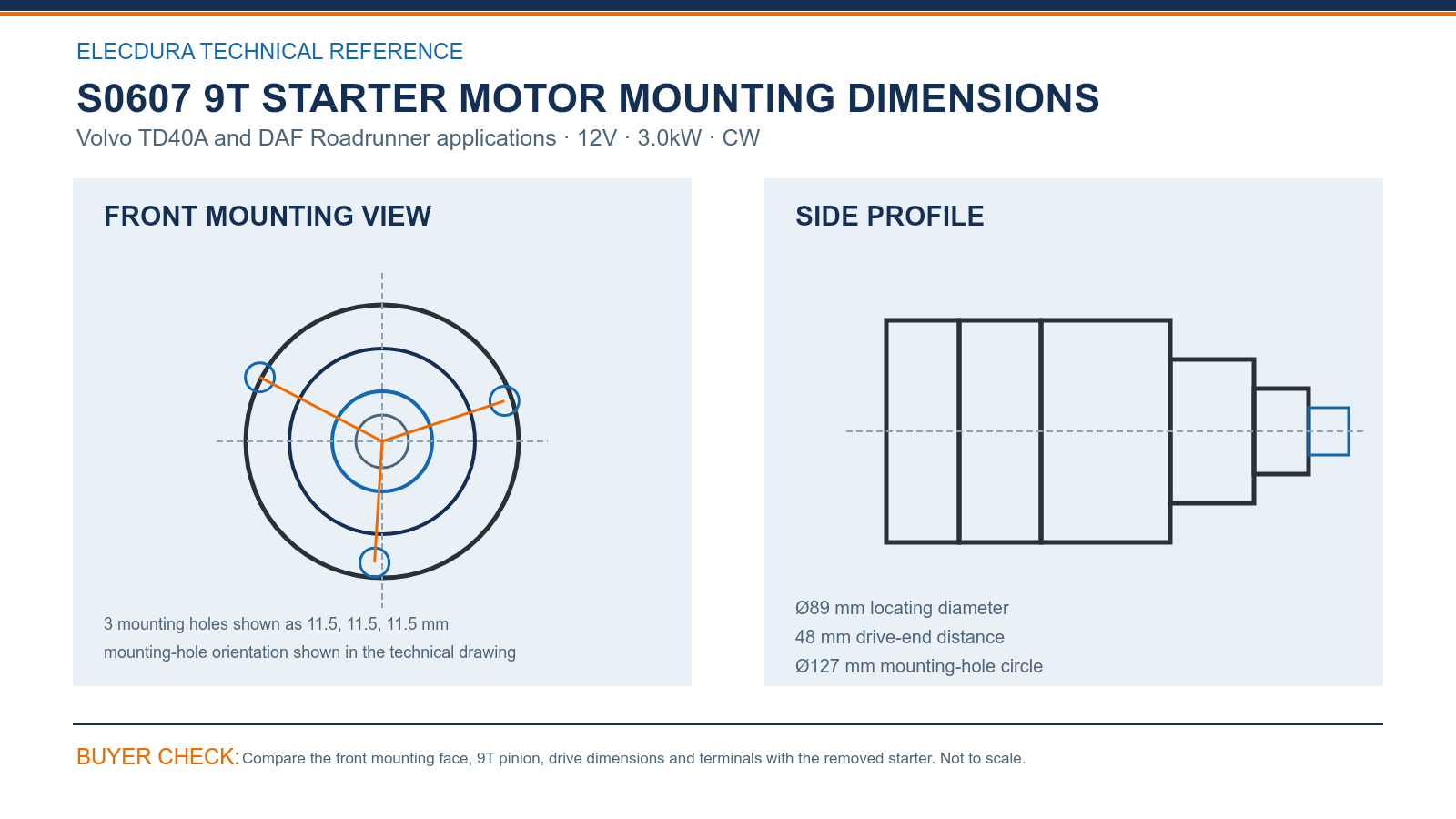

S0607 Volvo TD40A and DAF Roadrunner 12V 3.0kW 9T starter mounting dimensions.

A warehouse can confirm the S0607 interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 mounting holes shown as 11.5, 11.5, 11.5 mm, then verify the 48 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S0607, electrical and mechanical identity must agree: 12V, 3.0kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0607 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S0607, 0001359119, 0001367049, 0986012780, 0986012781, 11.130.811, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0607 Starter Motor Fleet Supply and Replenishment Support

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S0607 quantity, destination and required arrival date.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0607 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S0607; the product decision itself still depends on the complete reference, 12V 3.0kW rating, drive end, mounting face and terminal layout.

S0607 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming S0607 during a Volvo TD40A DAF branch inspection?

Align the removed starter and S0607 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11.5, 11.5, 11.5 mm and 48 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Before removing S0607, what should the workshop test under load during a Volvo TD40A DAF branch electrical check?

Before fitting S0607, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does S0607 require a physical comparison for Volvo applications during branch sourcing?

For S0607, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 3.0kW, 9T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with S0607 identify an interchangeable unit in a Volvo TD40A DAF branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S0607, 0001359119, 0001367049, 0986012780, 0986012781 to locate possible matches, then confirm 12V, 3.0kW, 9T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which operating factors should guide a fleet's S0607 reserve quantity in a Volvo TD40A DAF branch program?

Review workshop consumption by the stated Volvo TD40A and DAF Roadrunner population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical S0607 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for S0607 during a Volvo TD40A DAF branch receiving check?

Use a first-lot sample to confirm S0607, 12V, 3.0kW, 9T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S0607 without delay in a Volvo TD40A DAF branch sourcing program?

List S0607 together with the supported equipment record, 12V, 3.0kW, 9T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S0607 in a Volvo TD40A DAF branch review?

For S0607, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S0607 Send a Starter Motor Distributor Enquiry

Prepare the S0607 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
