M009T62171 Volvo Starter Motor 24V 5.5kW 12T

M009T62171 Heavy-Duty Truck Starter Motor for VOLVO FM12

For engine-parts specialists opening a first commercial order, this aftermarket heavy-duty truck starter motor is specified for VOLVO FM12 with 24V, 5.5kW and 12T. The page keeps the replacement identity, technical definition and trade order information in one place.

For regional parts suppliers confirming an incoming batch, the product is positioned for professional aftermarket supply, with product identification, fitment boundaries, inspection options and commercial terms visible before the buyer requests pricing.

M009T62171 Starter Motor Specifications and Technical Drawing

For importers preparing an OE-based quote, the product identity combines M009T62171, VOLVO FM12, 24V, 5.5kW and 12T. Keeping those facts together helps buyers separate this starter from adjacent versions.

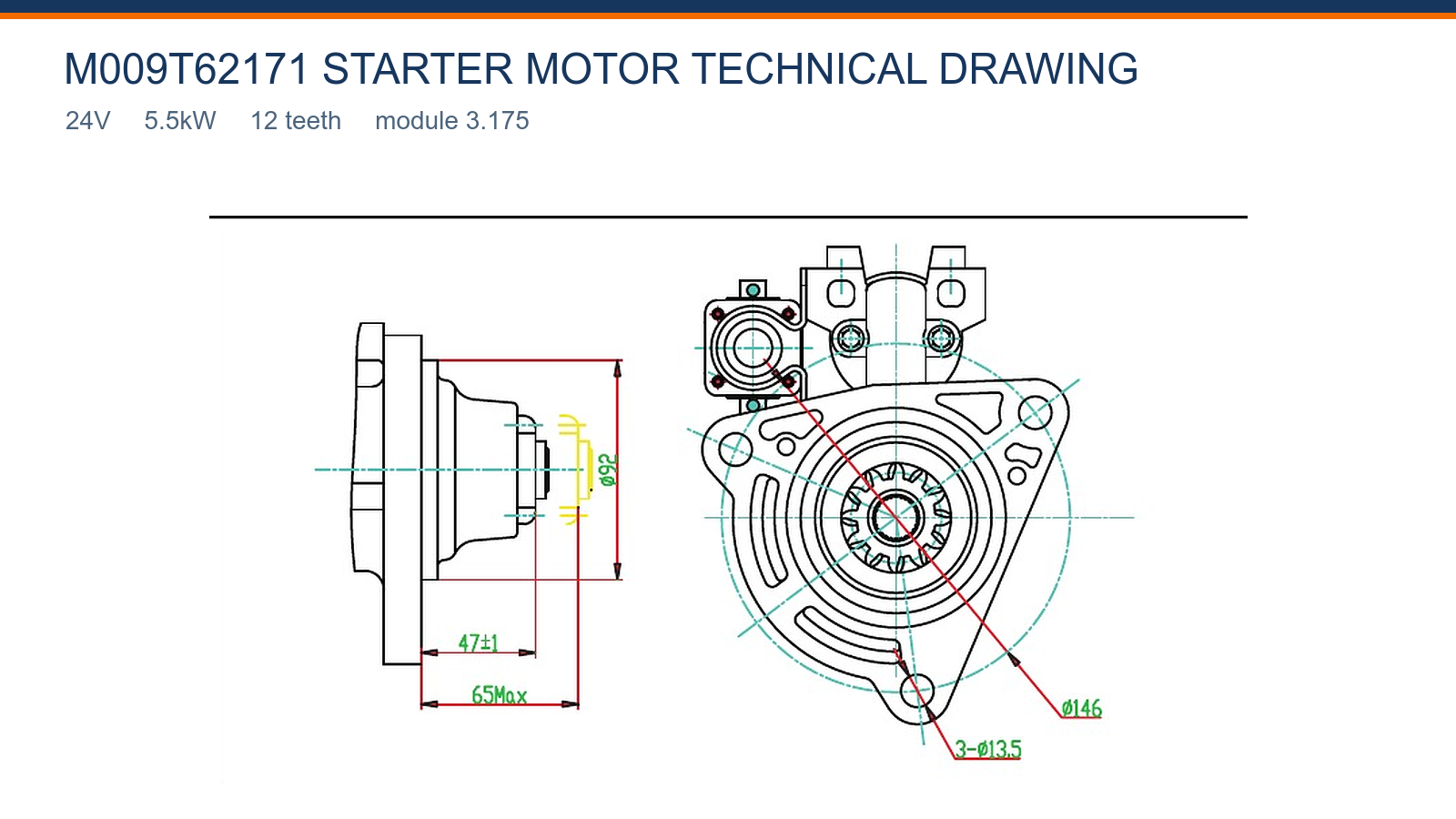

For product managers checking repeat-order specifications, the source-faithful technical drawing records the available mounting information for M009T62171, including 3×Ø13.5, 47±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M009T62171 Aftermarket Replacement and Application

For technical sales teams checking version-defining data, VOLVO FM12 is the stated application for M009T62171. Buyers comparing M009T62171, M009T62173 should confirm that the starter being replaced shares the same 24V system, 5.5kW output and 12T drive before adding the item to a distributor order.

For fitment reviewers comparing the flange and terminals, start with the complete reference and application, then compare the 12T drive, flange shape and terminal orientation. A physical difference should be resolved before volume pricing is accepted.

M009T62171 Wholesale Supply for Distributors and Importers

For wholesale program managers planning mixed-model inventory, M009T62171 is available for professional aftermarket supply to commercial-vehicle distributors, fleet-parts suppliers and importers. Ask for wholesale pricing with quantity, destination and packaging requirements; standard terms are 20 pcs MOQ, 7–15 days after confirmation and 18 months warranty.

For sales teams updating a customer item master, the order specification may include armature, solenoid, no-load or load testing together with label and packaging requirements. This gives receiving teams practical points for sampling a batch without treating appearance alone as proof of fitment.

M009T62171 Starter Motor Buyer FAQ

How should a distributor confirm module 3.175 for repeatable sourcing?

For distributors confirming electrical ratings, module 3.175 is part of the gear geometry for M009T62171. Confirm it together with the 12-tooth count and pinion diameter; another module changes tooth pitch even when the number of teeth is unchanged. The old starter or ring-gear specification should therefore support the module match before a substitute is accepted.

What must be matched before quoting VOLVO FM12 when confirming the quote position?

For technical buyers reviewing a replacement proposal, VOLVO FM12 identifies the intended commercial-vehicle family, but it should not be used by itself. Pair the application with M009T62171, the 24V electrical system and the 12-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration ahead of commercial and delivery confirmation.

How can an importer validate M009T62171 cartons and units before comparing delivery options?

For engine-parts specialists updating a customer item master, sample cartons from different positions in the shipment and compare the M009T62171 labels, 24V marking, 12-tooth pinion, flange shape and terminal protection with the procurement specification. Photograph any mixed marking, damaged terminal or different drive end before the unit is fitted, and isolate those pieces so the rest of the lot can be assessed consistently.

What evidence best identifies M009T62171 drive-end photograph before an installation slot is booked?

For fleet-parts buyers checking application evidence, the drive-end image for M009T62171 should be used to count 12 teeth and compare the flange, locating shoulder and pinion rest position. Ask for the replaced starter to be photographed from the corresponding angle. A side view alone may hide the deciding tooth and mounting information, so keep the direct drive-end view with the RFQ.

Which check should lead 12T and module 3.175 when preparing a fitment request?

For technical sales teams preparing an OE-based quote, the supplied drive uses 12 teeth with module 3.175. Count the old pinion teeth and compare outside diameter, rest position and engagement depth before ordering. The 3.175 module is part of the gear definition, so another pitch must not be combined on the same line. This check protects the ring gear from an incorrect mesh.

How should a workshop distinguish M009T62171 drawing dimensions when preparing a technical inquiry?

For fitment reviewers checking repeat-order specifications, read the M009T62171 drawing as a comparison aid, not as permission to ignore the starter removed from the machine. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

What evidence best identifies M009T62171, M009T62173 when several versions look alike?

For application specialists matching the existing starter, M009T62171, M009T62173 should be treated as one inquiry group only after the unit in hand is compared. Ask the customer for the complete label and clear views of the drive end, flange and terminals. If a suffix, housing shape or terminal clocking differs, keep it as a separate quotation line instead of assuming that the shared number guarantees interchangeability.

What should receiving teams compare on M009T62171 inside a mixed starter shipment for repeatable sourcing?

For sales teams preparing distributor pricing, give each carton line its own reference, 24V, 5.5kW and 12T marking. The packing list should preserve those same fields. Receiving can then compare labels and drive-end appearance without opening every carton, while any mixed or unclear unit is isolated for review.

Request a Wholesale Quote for M009T62171 Heavy-Duty Truck Starter Motor

For warehouse planners reviewing customer demand, to source M009T62171 for a distributor or importer program, send the OE group, VOLVO FM12, planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
