M009T82171-24V-8.5KW-12T-3.175M Volvo Starter Motor

M009T82171-24V-8.5KW-12T-3.175M Heavy-Duty Truck Starter Motor for VOLVO-D10DEAE2, D12D

For wholesale program managers opening a first bulk order, Elecdura offers M009T82171-24V-8.5KW-12T-3.175M as an aftermarket heavy-duty truck starter motor for VOLVO-D10DEAE2, D12D. The 24V, 8.5kW and 12T configuration is intended for professional replacement sourcing by commercial-vehicle distributors, fleet-parts suppliers and importers.

For sales teams confirming an incoming batch, the goal is a repeatable supply line: one agreed product identity, one packaging definition and one set of incoming checks. This is useful for importers building category coverage as well as fleet suppliers replenishing an existing starter reference.

M009T82171-24V-8.5KW-12T-3.175M Starter Motor Specifications and Technical Drawing

For purchasing teams preparing an OE-based quote, this reference group can cover nearby starter versions. Keep M009T82171-24V-8.5KW-12T-3.175M, 24V, 8.5kW and 12T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

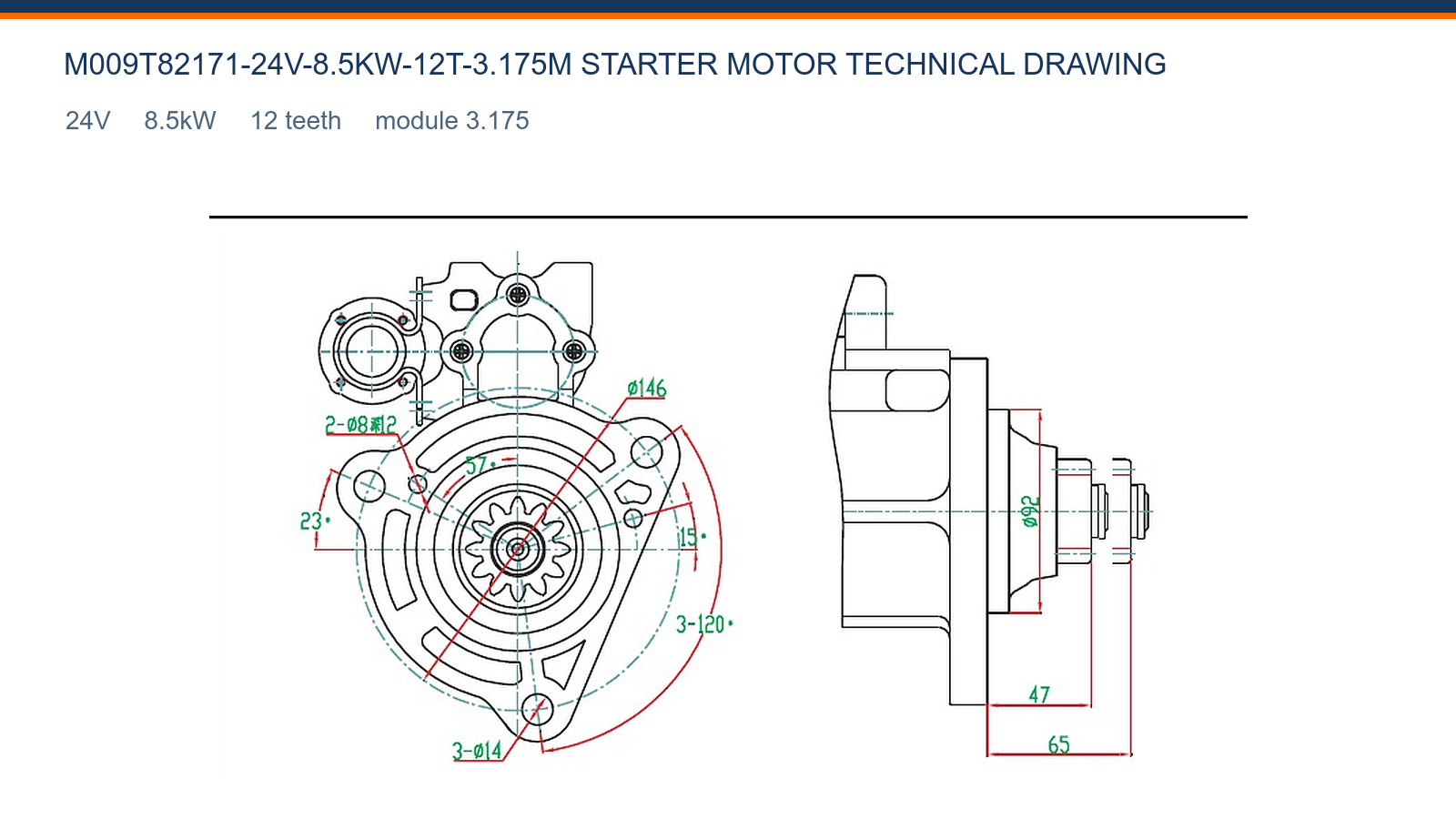

For distributors separating similar housings, the source-faithful technical drawing records the available mounting information for M009T82171-24V-8.5KW-12T-3.175M, including 2×Ø8, 3×Ø14, Ø146; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M009T82171-24V-8.5KW-12T-3.175M Aftermarket Replacement and Application

For service-parts networks checking version-defining data, M009T82171-24V-8.5KW-12T-3.175M, M009T82171, 11127679 forms the usable OE and cross-reference group for this product, while VOLVO-D10DEAE2, D12D is the stated application. Cross-reference numbers help buyers find the product, but a direct replacement should still agree on voltage, output, pinion and the visible mounting configuration.

For importers confirming electrical ratings, use the gallery to compare the flange, 12T pinion and rear connections before approving the order. Keep module 3.175 with the tooth count. A changed mounting or terminal feature should be quoted as another starter version.

M009T82171-24V-8.5KW-12T-3.175M Wholesale Supply for Distributors and Importers

For inventory buyers planning mixed-model inventory, Elecdura supplies M009T82171-24V-8.5KW-12T-3.175M for wholesale and distributor orders with a standard MOQ of 20 pcs, an indicative 7–15 day lead time after order confirmation and an 18-month warranty under agreed terms. Neutral packaging and private-label review are available for qualified programs.

For fleet-parts buyers updating a customer item master, Elecdura can align product identification, electrical testing and packaging records with the buyer's order. The exact inspection scope depends on the agreed quantity and market requirements and should be stated before production planning.

M009T82171-24V-8.5KW-12T-3.175M Starter Motor Buyer FAQ

How should a distributor confirm 2×Ø8, 3×Ø14 and Ø146 for a documented fitment decision?

For technical sales teams confirming electrical ratings, use the supplied technical drawing to compare 2×Ø8, 3×Ø14 and Ø146. Take each measurement from the same face shown or described, then compare the locating shoulder, bolt pattern and drive-end projection as one set. A single matching diameter is not enough if the hole pattern or axial reach places the pinion differently.

Which specification deserves priority for VOLVO-D10DEAE2, D12D when confirming the quotation line?

For fitment reviewers reviewing a replacement proposal, VOLVO-D10DEAE2, D12D identifies the intended commercial-vehicle family, but it should not be used by itself. Pair the application with M009T82171-24V-8.5KW-12T-3.175M, the 24V electrical system and the 12-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration before price and delivery are finalized.

How should a distributor confirm M009T82171-24V-8.5KW-12T-3.175M rear-terminal photograph before an installation slot is booked?

For application specialists confirming the stated application, use the rear view of M009T82171-24V-8.5KW-12T-3.175M to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in VOLVO-D10DEAE2, D12D. A correct drive end with an unusable terminal position is not a complete fitment match.

What should receiving teams compare on 24V and 8.5kW for a documented fitment decision?

For replacement-parts sellers checking application evidence, M009T82171-24V-8.5KW-12T-3.175M is defined as 24V and 8.5kW. Confirm the machine electrical system and the old starter rating together, because voltage determines system compatibility while output supports the required engine-starting load. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

Which specification deserves priority for M009T82171-24V-8.5KW-12T-3.175M locating face when confirming the RFQ entry?

For service-parts networks preparing an OE-based quote, the M009T82171-24V-8.5KW-12T-3.175M flange should sit flat against the VOLVO-D10DEAE2, D12D mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

Which check should lead M009T82171-24V-8.5KW-12T-3.175M among Volvo versions for repeatable sourcing?

For importers separating similar housings, M009T82171-24V-8.5KW-12T-3.175M should remain separate from another Volvo starter whenever voltage, output, tooth count, module, flange geometry or terminal position changes. For this line, retain 24V, 8.5kW and 12T together in the purchasing description. That specification bundle gives sales, warehouse and technical teams one consistent basis for reviewing alternatives.

How can a buyer screen M009T82171-24V-8.5KW-12T-3.175M side-profile photograph before accepting a substitute?

For product managers matching the starter removed from the machine, the side profile of M009T82171-24V-8.5KW-12T-3.175M shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use measured axial references where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

What should purchasing verify first for M009T82171-24V-8.5KW-12T-3.175M cartons and units before comparing delivery options?

For fleet-parts buyers preparing distributor pricing, sample cartons from different positions in the shipment and compare the M009T82171-24V-8.5KW-12T-3.175M labels, 24V marking, 12-tooth pinion, flange shape and terminal protection with the buying description. Photograph any mixed marking, damaged terminal or different drive end ahead of installation, and isolate those pieces so the rest of the lot can be assessed consistently.

Request a Wholesale Quote for M009T82171-24V-8.5KW-12T-3.175M Heavy-Duty Truck Starter Motor

For private-label buyers reviewing customer demand, provide M009T82171-24V-8.5KW-12T-3.175M, VOLVO-D10DEAE2, D12D, expected order quantity and destination. Include photos or measurements when the original unit in hand differs in suffix or mounting appearance, and Elecdura will review the correct version before pricing.
