S0228 Volvo 4200 Perkins Starter Motor Wholesale

S0228 Starter Motor Wholesale Fitment for Volvo Construction Equipment 4200 and Perkins 4.236

Volvo equipment dealers, Perkins service distributors and construction-parts wholesalers use S0228 to keep Volvo Construction Equipment 4200 and Perkins 4.236 demand tied to one 24V, 4.0kW, 11T CW configuration. The practical distinction is the 24V 4.0kW 11T module-3 catalog configuration, which should be checked before a similar heavy-duty housing is accepted.

Send the full S0228 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

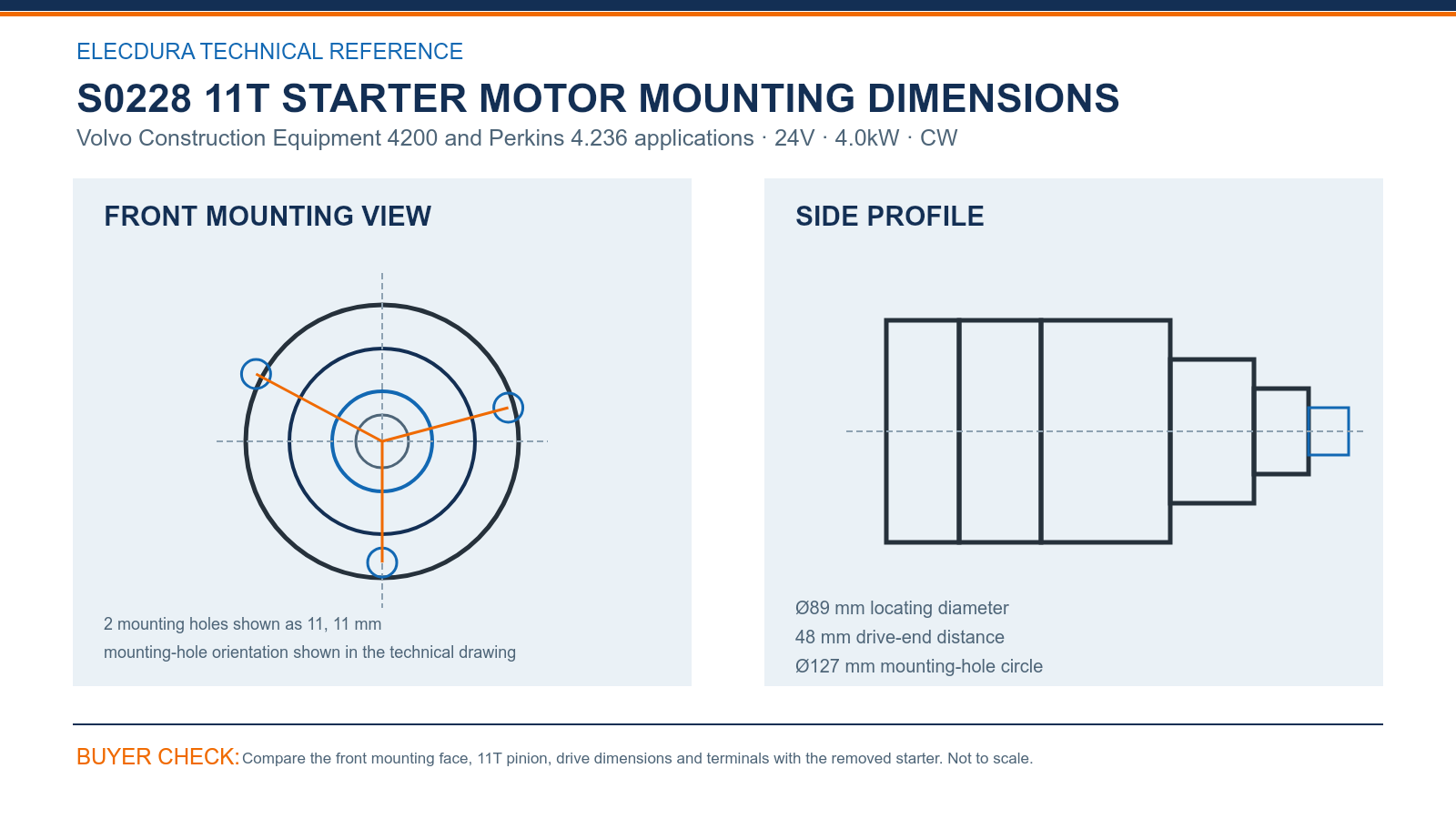

S0228 Starter Motor Drive-End Drawing for Aftermarket Distributors

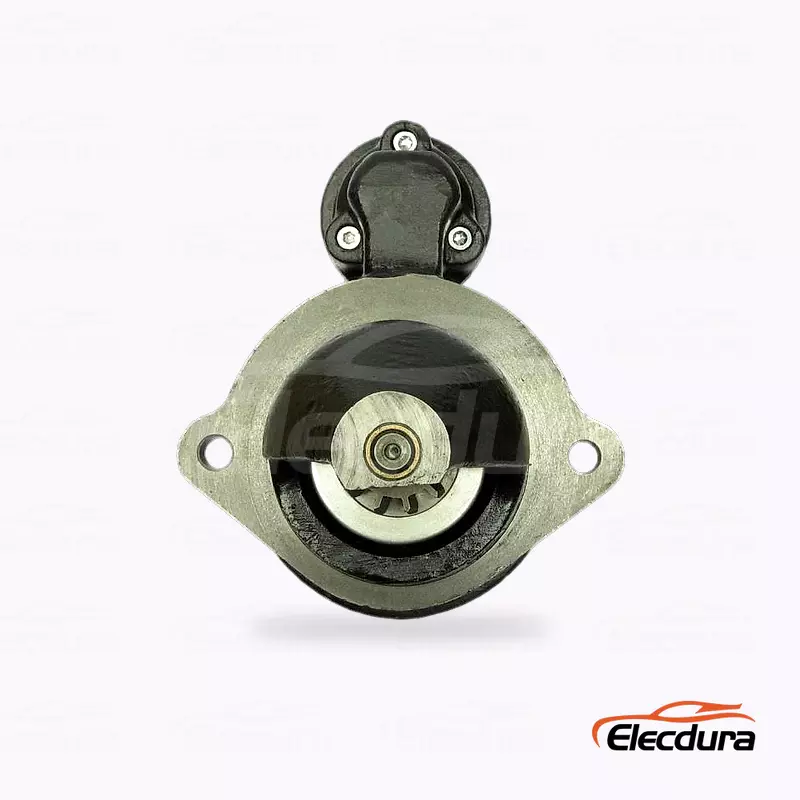

For S0228 first-lot sampling, place the old and new starters in the same front-facing position. Check 2 mounting holes shown as 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S0228 mounting check, verify 24V, 4.0kW, 11T and CW with module 3. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S0228 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S0228, 114170, 0001368004, STB4804MN, 605720100021, 4785484, STR50313 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

S0228 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S0228, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S0228 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0228 remains tied to the stated Volvo Construction Equipment 4200 and Perkins 4.236 application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0228 Starter Motor Questions from Commercial Buyers

Before removing S0228, what should the workshop test under load during a Volvo 4200 Perkins fleet electrical check?

Before fitting S0228, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for S0228 during a Volvo 4200 Perkins fleet inspection?

For S0228, compare 2 mounting holes shown as 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 48 mm drive-end distance in the side view. Add 11T, CW and terminal orientation; this is more reliable than an angled overall photograph.

What should a distributor match before ordering S0228 for Volvo Construction Equipment 4200 and Perkins 4.236 during fleet sourcing?

Use the full old-unit number and Volvo Construction Equipment 4200 and Perkins 4.236 record. Compare the 11T pinion, 2 mounting holes shown as 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order S0228 from an alternate OE number in a Volvo 4200 Perkins fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0228 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

How can S0228 stock be separated by application risk in a Volvo 4200 Perkins fleet program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0228 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S0228 during a Volvo 4200 Perkins fleet receiving check?

For S0228, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 2 mounting holes shown as 11, 11 mm, Ø89 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S0228 in a Volvo 4200 Perkins fleet sourcing program?

Send the complete OE number, exact Volvo Construction Equipment 4200 and Perkins 4.236 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 4.0kW 11T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S0228 after installation in a Volvo 4200 Perkins fleet review?

Keep the carton or product traceability code and note when and where S0228 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

S0228 Request Starter Motor Wholesale Pricing

Email info@elecdurauto.com with S0228, the supported Volvo Construction Equipment 4200 and Perkins 4.236 record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 4.0kW, 11T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
