S0797S Volvo TD50B TD60B Starter Motor Wholesale

S0797S Starter Motor Wholesale Application Support for Volvo BM TD50B and Volvo Penta TD60B

For Volvo BM TD50B and Volvo Penta TD60B, S0797S gives distributors a focused starting point for quotation and branch inventory. Confirm 12V, 3.0kW, 9T and CW, with particular attention to 12V 3.0kW 9T catalog configuration for the Volvo TD50B and TD60B group, before combining demand from different fleets or workshops.

For the first S0797S order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S0797S Starter Motor Specification Table for B2B Sourcing

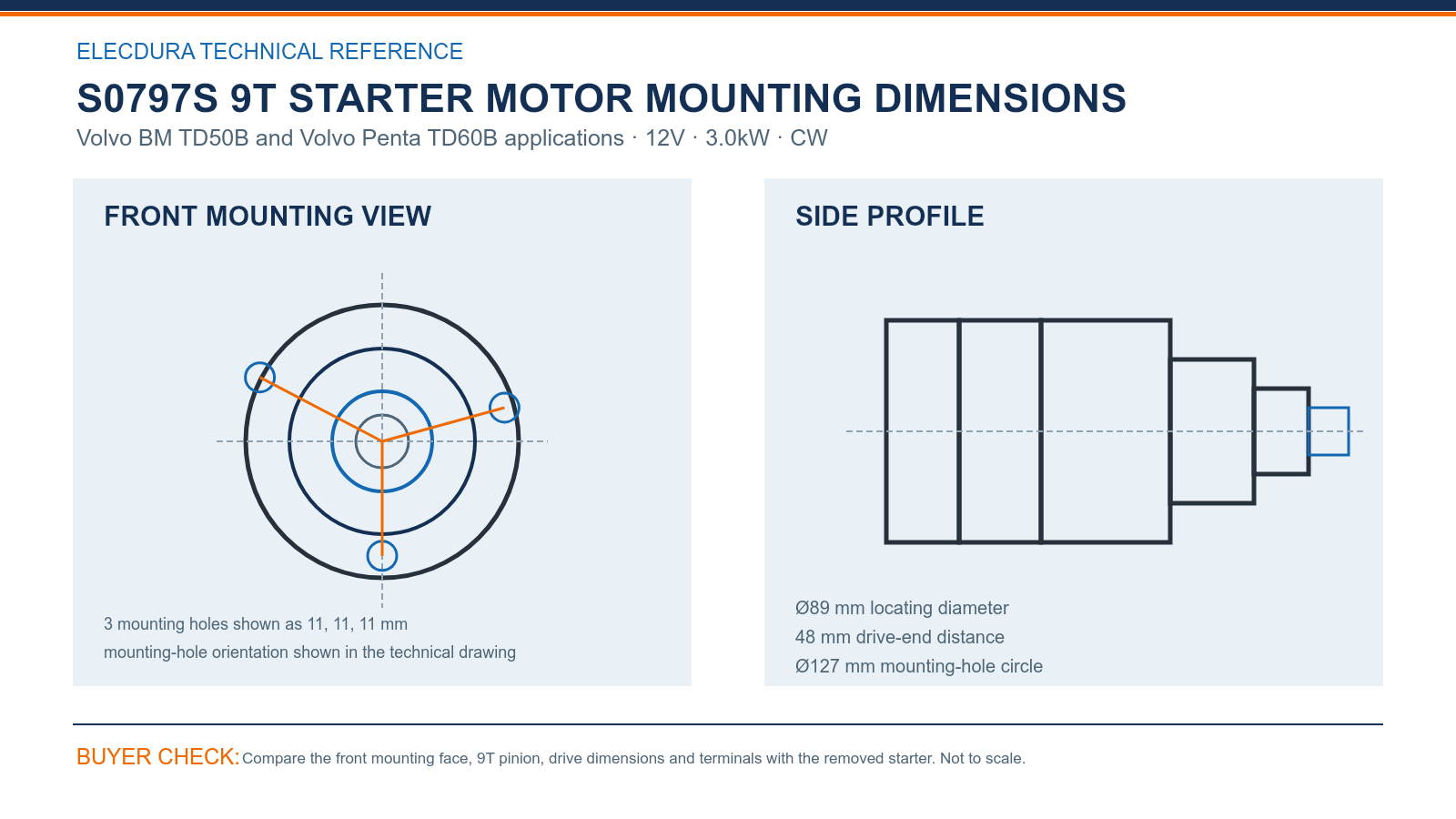

S0797S Volvo BM TD50B and Volvo Penta TD60B 12V 3.0kW 9T starter mounting dimensions.

For S0797S first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

The S0797S drive-end decision is completed by 9T, module 3 and CW, together with 12V and 3.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S0797S Starter Motor Reference Matching for B2B Quotations

The S0797S cross-reference group includes S0797S, 113482, 0001359013, 0001359044, 0001359087, 0001359089, 0001367045. Use these numbers to search supplier systems, then confirm 12V, 3.0kW, 9T, CW, mounting geometry and terminals.

For S0797S, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0797S Starter Motor Wholesale Supply and Export Planning

Wholesale planning for S0797S can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Volvo BM TD50B and Volvo Penta TD60B population, recent consumption and transfer time between service locations. Keeping S0797S, the 9T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0797S, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0797S Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S0797S during a Volvo TD50B TD60B service-network receiving check?

For S0797S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

How should a buyer compare the old unit with the S0797S technical image during a Volvo TD50B TD60B service-network inspection?

For S0797S, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. Count the 9T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

How can an importer avoid mixing S0797S with a similar drive-end version during service-network sourcing?

For S0797S in Volvo BM TD50B and Volvo Penta TD60B, confirm the machine or engine identity and read the full old-unit label. Check 9T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

When does a cross-reference related to S0797S need a separate quotation in a Volvo TD50B TD60B service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0797S group is acceptable only when 12V, 3.0kW, 9T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why should voltage-drop results accompany an enquiry for S0797S during a Volvo TD50B TD60B service-network electrical check?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for S0797S installation and for any later service discussion with the supplier.

How should Volvo BM distributors plan stock for S0797S in a Volvo TD50B TD60B service-network program?

Keep industrial, agricultural and marine demand tied to the accepted product view. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S0797S in a Volvo TD50B TD60B service-network sourcing program?

A useful RFQ states S0797S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S0797S in a Volvo TD50B TD60B service-network review?

For a service review of S0797S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0797S Ask for Starter Motor Export Pricing

Email info@elecdurauto.com with S0797S, the supported Volvo BM TD50B and Volvo Penta TD60B record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 3.0kW, 9T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
