S1025 Volvo Cummins Mack Starter Motor Distributor

S1025 Starter Motor Fleet Replacement Supply for Volvo D12, Cummins ISC or ISL, Mack MP10 and Navistar DT466

S1025 supports Volvo D12, Cummins ISC or ISL, Mack MP10 and Navistar DT466 sourcing where buyers need a defined electrical and drive-end match. Its 12V, 7.2kW, 12T CW specification must remain linked to the shared 12-tooth heavy-truck interface across four stated engine families; a visually related unit may belong on a different RFQ line.

Before comparing S1025 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S1025 Starter Motor Technical Data for Fleet Parts Buyers

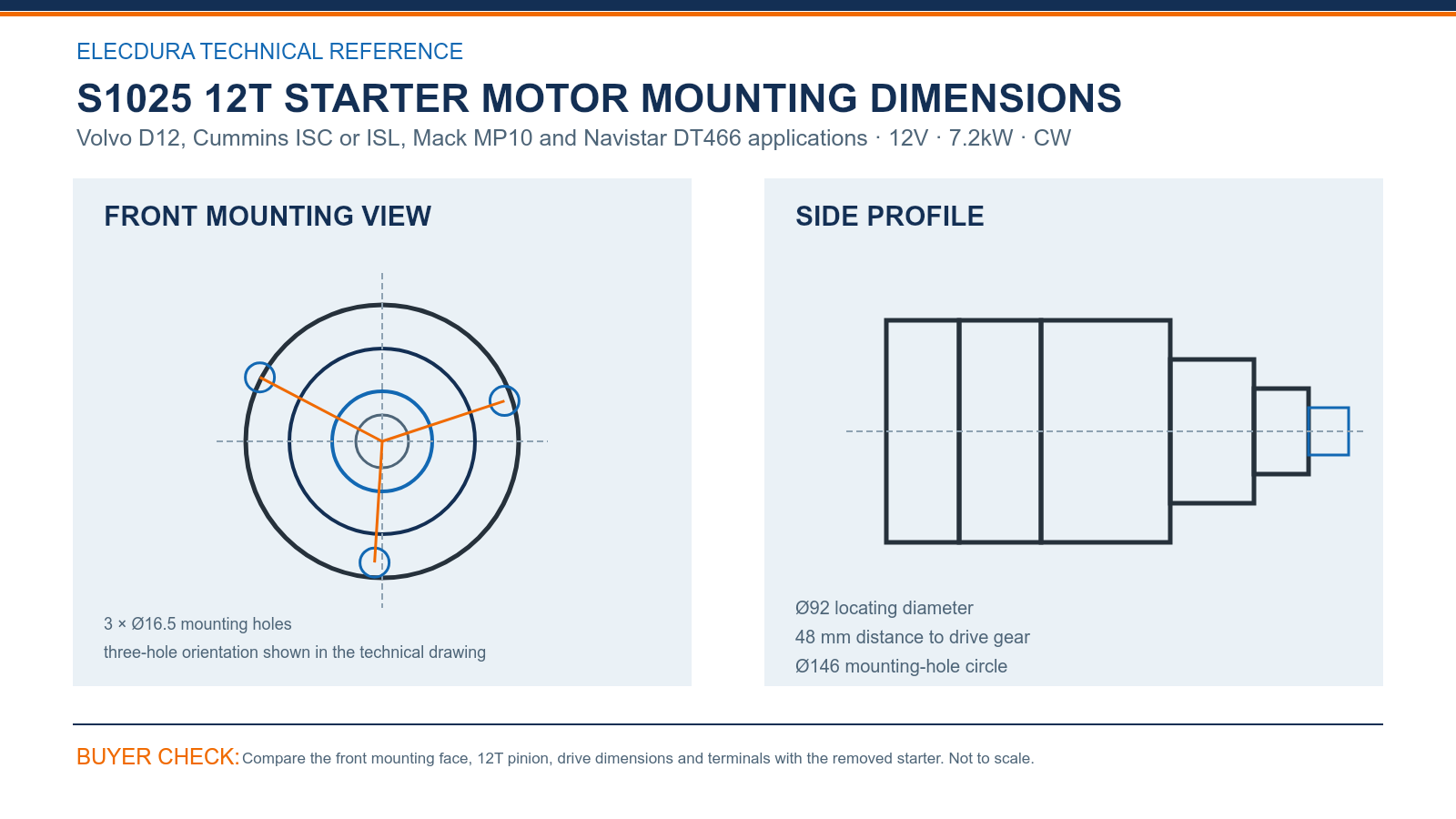

S1025 Volvo Cummins Mack 12V 7.2kW 12T starter mounting dimensions.

The S1025 dimensional review starts at the mounting face: verify 3 × Ø16.5 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. Then compare the 48 mm distance to drive gear. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S1025, electrical and mechanical identity must agree: 12V, 7.2kW, 12T, module 3.175 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S1025 Starter Motor Cross-Reference Review for Fleet Buyers

The S1025 cross-reference group includes S1025, 19011515, 19011517, 19011526, 8200058, 8200186, 8200218. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 7.2kW, 12T, CW, mounting geometry and terminals.

If a mixed S1025 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S1025 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S1025 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Volvo D12, Cummins ISC or ISL, Mack MP10 and Navistar DT466 population, recent consumption and transfer time between service locations. Keeping S1025, the 12T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S1025, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S1025 Starter Motor Questions from Commercial Buyers

Before removing S1025, what should the workshop test under load in a Volvo Cummins Mack workshop workshop?

Before fitting S1025, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does S1025 require a physical comparison for Volvo applications during workshop sourcing?

For S1025, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 7.2kW, 12T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with S1025 identify an interchangeable unit in a Volvo Cummins Mack workshop sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1025, 19011515, 19011517, 19011526, 8200058 to locate possible matches, then confirm 12V, 7.2kW, 12T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which mounting-face points distinguish the specified S1025 version during a Volvo Cummins Mack workshop inspection?

Place the removed starter and S1025 on the same mounting-face orientation. Compare Ø92 locating diameter, Ø146 mounting-hole circle, the 3 × Ø16.5 mounting holes and the 48 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can S1025 stock be separated by application risk in a Volvo Cummins Mack workshop program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S1025 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S1025 during a Volvo Cummins Mack workshop receiving check?

For S1025, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø16.5 mounting holes, Ø92 locating diameter and the specified 12T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S1025 in a Volvo Cummins Mack workshop sourcing program?

Send the complete OE number, exact Volvo D12, Cummins ISC or ISL, Mack MP10 and Navistar DT466 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 7.2kW 12T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S1025 after installation in a Volvo Cummins Mack workshop review?

Keep the carton or product traceability code and note when and where S1025 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S1025 Ask for Starter Motor Export Pricing

Prepare the S1025 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
