3604677RX Cummins Hyster Mack Starter Motor Wholesale

3604677RX Starter Motor Distributor Application Guide for Cummins-powered Hyster and Mack applications with related Volvo references

For a fleet parts team, 3604677RX identifies one Cummins-powered Hyster and Mack applications with related Volvo references requirement. The 24V 4.0kW 10T module-2.54 drive within the 3604677RX and 8200064 sourcing family provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 3604677RX with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

3604677RX Starter Motor Mounting Dimensions for Distributor Approval

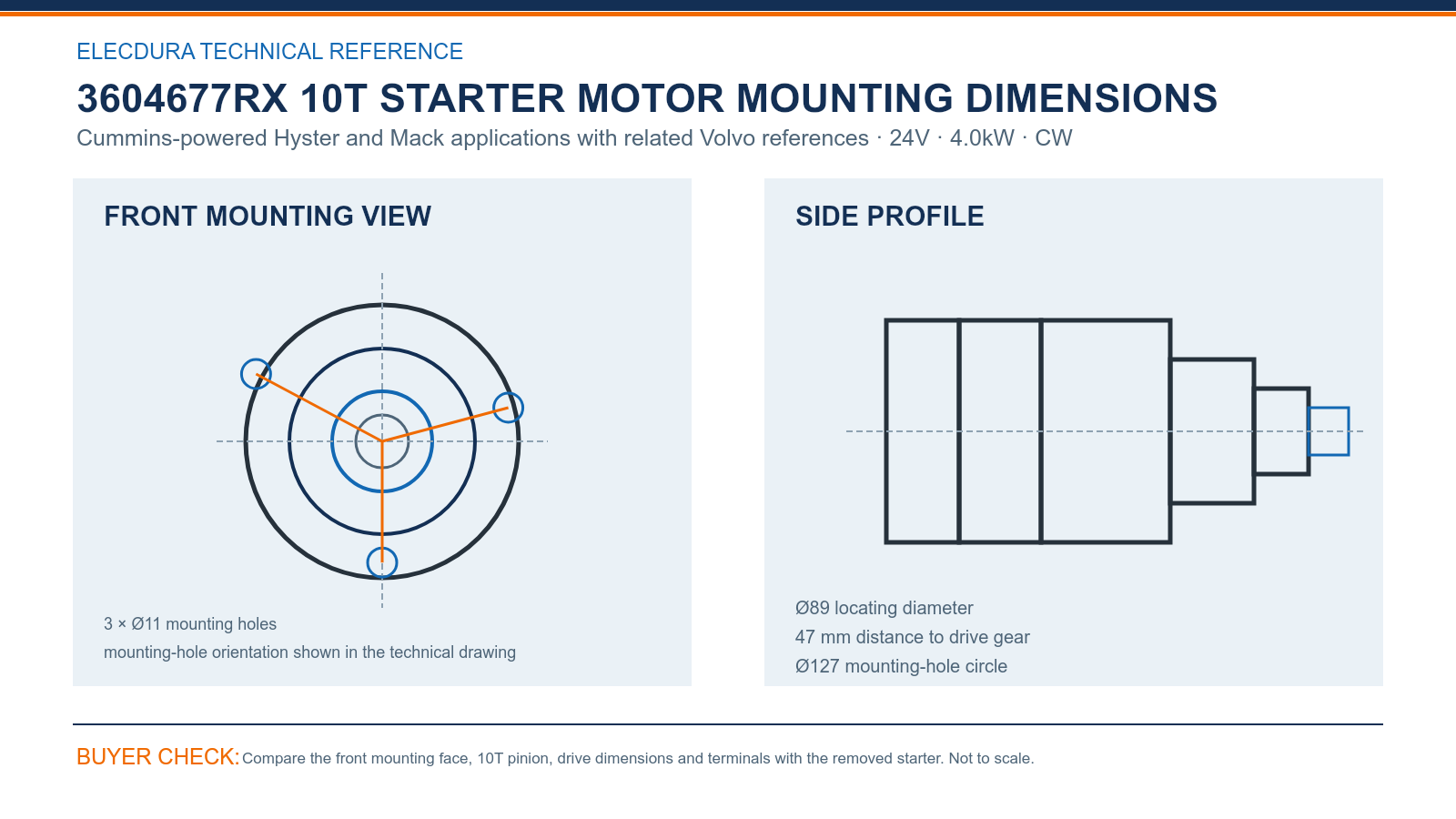

Use the 3604677RX technical drawing to check Ø89 locating diameter, 47 mm distance to drive gear and Ø127 mounting-hole circle. Add the 3 × Ø11 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 3604677RX comparison with 24V, 4.0kW, the 10T drive, module 2.54 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

3604677RX Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S1130, 3604677RX, 3675204RX, 3904057, 3909914, 3918377, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

3604677RX Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 3604677RX, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

State the exact Hyster, Mack or Cummins application because the shared reference group does not make every installation identical. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for 3604677RX; the product decision itself still depends on the complete reference, 24V 4.0kW rating, drive end, mounting face and terminal layout.

3604677RX Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming 3604677RX during a Cummins Hyster Mack branch inspection?

Place the removed starter and 3604677RX on the same mounting-face orientation. Compare Ø89 locating diameter, Ø127 mounting-hole circle, the 3 × Ø11 mounting holes and the 47 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Before removing 3604677RX, what should the workshop test under load in a Cummins Hyster Mack branch workshop?

Before fitting 3604677RX, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does 3604677RX require a physical comparison for Cummins applications during branch sourcing?

For 3604677RX, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 4.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with 3604677RX identify an interchangeable unit in a Cummins Hyster Mack branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1130, 3604677RX, 3675204RX, 3904057, 3909914 to locate possible matches, then confirm 24V, 4.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which operating factors should guide a fleet's 3604677RX reserve quantity in a Cummins Hyster Mack branch program?

Review workshop consumption by the stated Cummins-powered Hyster and Mack applications with related Volvo references population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical 3604677RX reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for 3604677RX during a Cummins Hyster Mack branch receiving check?

Use a first-lot sample to confirm 3604677RX, 24V, 4.0kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote 3604677RX without delay in a Cummins Hyster Mack branch sourcing program?

List 3604677RX together with the supported equipment record, 24V, 4.0kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for 3604677RX in a Cummins Hyster Mack branch review?

For 3604677RX, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

3604677RX Send a Starter Motor Distributor Enquiry

For a focused 3604677RX quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
