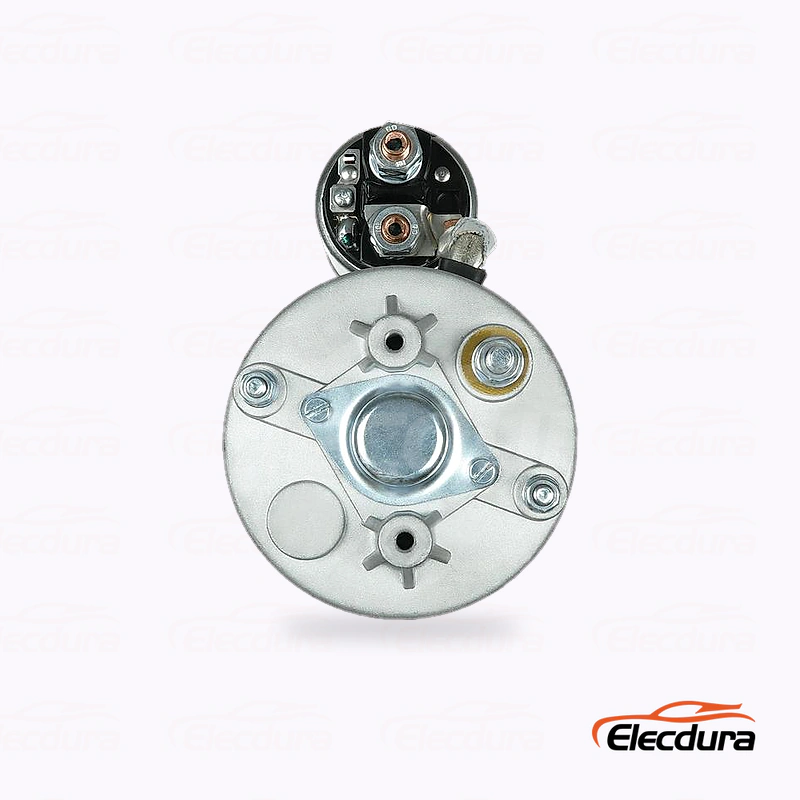

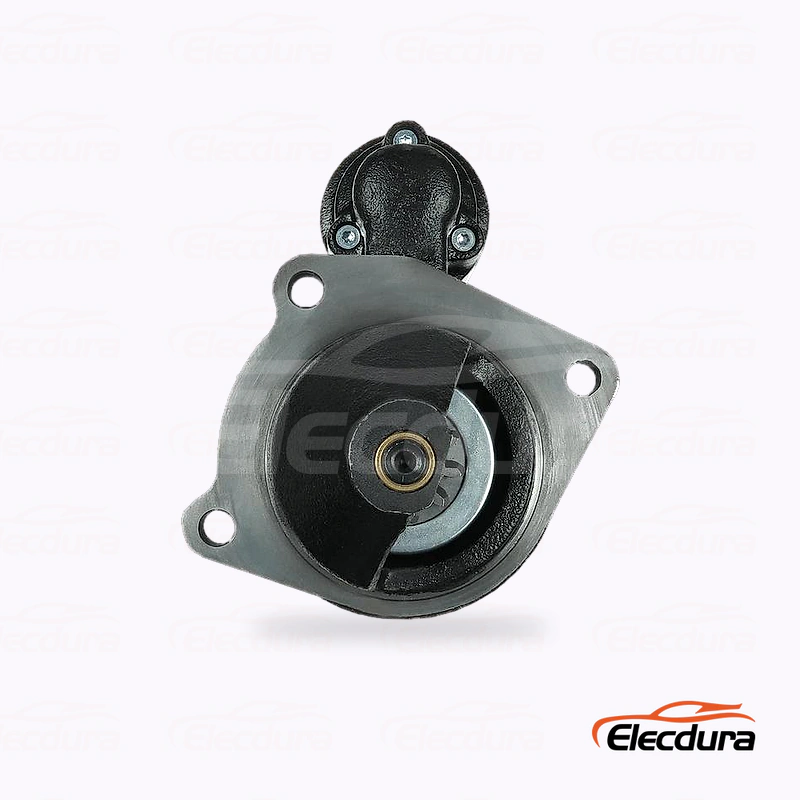

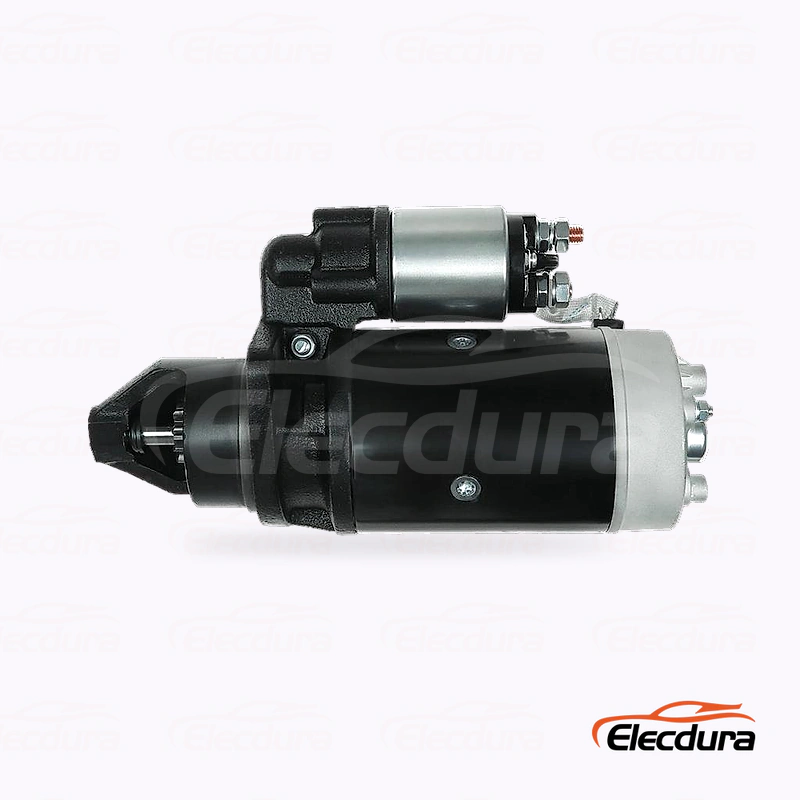

S0804S Volvo BM 4400 LM846 Starter Motor Wholesale

S0804S Starter Motor Fleet Replacement Supply for Volvo BM 4400 D60A and LM846 D50B

S0804S supports Volvo BM 4400 D60A and LM846 D50B sourcing where buyers need a defined electrical and drive-end match. Its 24V, 3.0kW, 9T CW specification must remain linked to the 24V 3.0kW 9T module-3 catalog configuration; a visually related unit may belong on a different RFQ line.

For the first S0804S order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S0804S Starter Motor Specification Table for B2B Sourcing

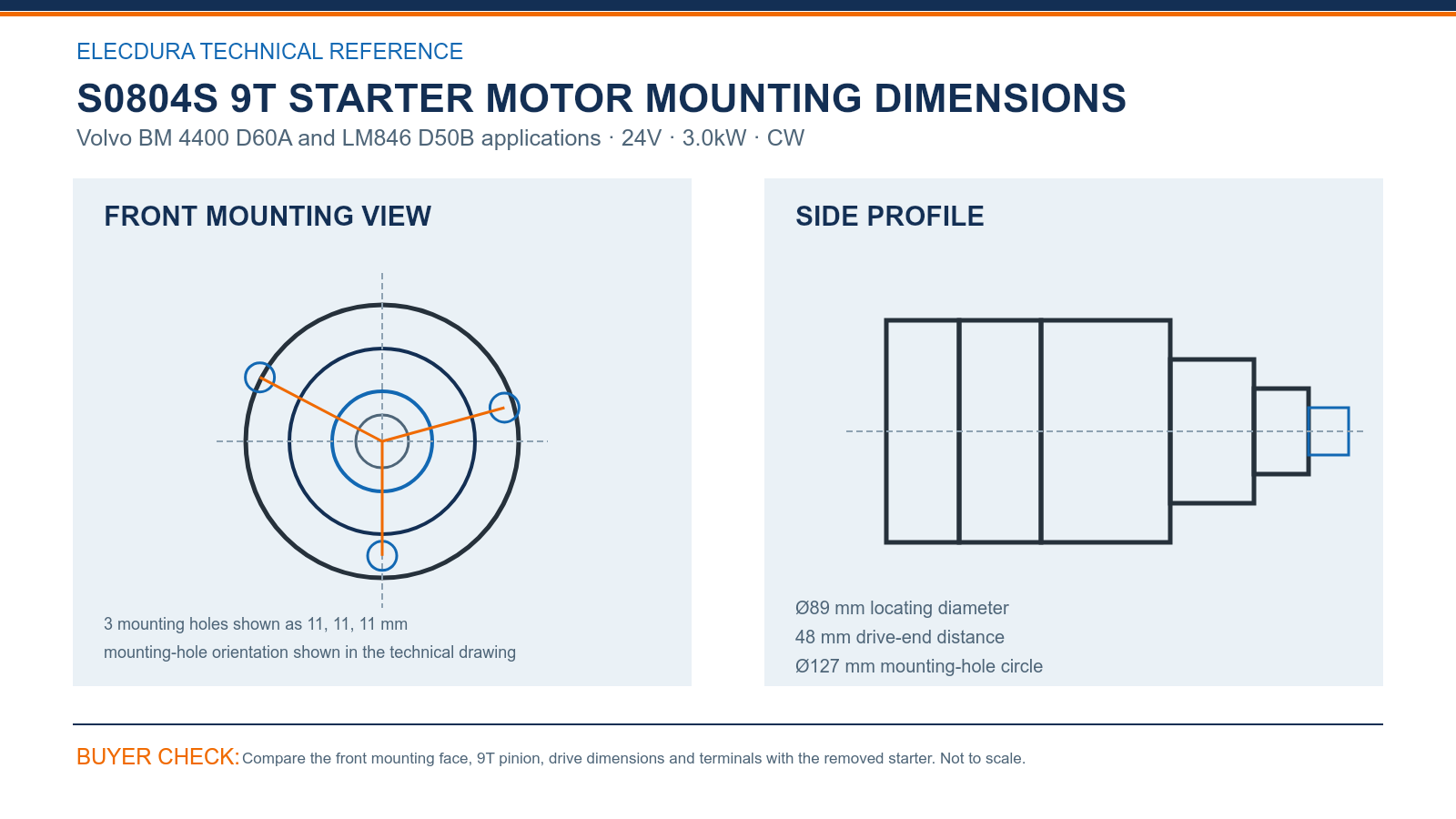

Compare S0804S at the 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 48 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S0804S, electrical and mechanical identity must agree: 24V, 3.0kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0804S Starter Motor Reference Group for Wholesale Sourcing

The S0804S cross-reference group includes S0804S, 112132, 0001360023, 0001360036, 0001368030, 0986011370, 11.130.766. Use these numbers to search supplier systems, then confirm 24V, 3.0kW, 9T, CW, mounting geometry and terminals.

For S0804S, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0804S Starter Motor Bulk Order Packing and Lead-Time Support

Elecdura can prepare S0804S orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S0804S label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0804S continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0804S Starter Motor Questions from Commercial Buyers

Before removing S0804S, what should the workshop test under load during a Volvo BM 4400 LM846 workshop diagnosis?

Before fitting S0804S, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What should an importer include in the replenishment forecast for S0804S in a Volvo BM 4400 LM846 workshop program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S0804S, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a distributor match before ordering S0804S for Volvo BM 4400 D60A and LM846 D50B during workshop sourcing?

Use the full old-unit number and Volvo BM 4400 D60A and LM846 D50B record. Compare the 9T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order S0804S from an alternate OE number in a Volvo BM 4400 LM846 workshop sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0804S electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which S0804S dimensions are practical for a warehouse inspection during a Volvo BM 4400 LM846 workshop inspection?

For S0804S, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and 48 mm drive-end distance. Record the 9T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

Which first-lot checks protect a distributor receiving S0804S during a Volvo BM 4400 LM846 workshop receiving check?

For S0804S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S0804S in a Volvo BM 4400 LM846 workshop sourcing program?

Send the complete OE number, exact Volvo BM 4400 D60A and LM846 D50B details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 3.0kW 9T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S0804S after installation in a Volvo BM 4400 LM846 workshop review?

Keep the carton or product traceability code and note when and where S0804S was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

S0804S Start a Starter Motor Wholesale Enquiry

A complete RFQ for S0804S should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 3.0kW 9T CW starter, MOQ, packaging, warranty and shipping choices.
