6C1Q-6K682-DE / 1449608
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
100 pcs
7 - 15 Days
12 Months
| Quantity: | |
|---|---|
Product Description

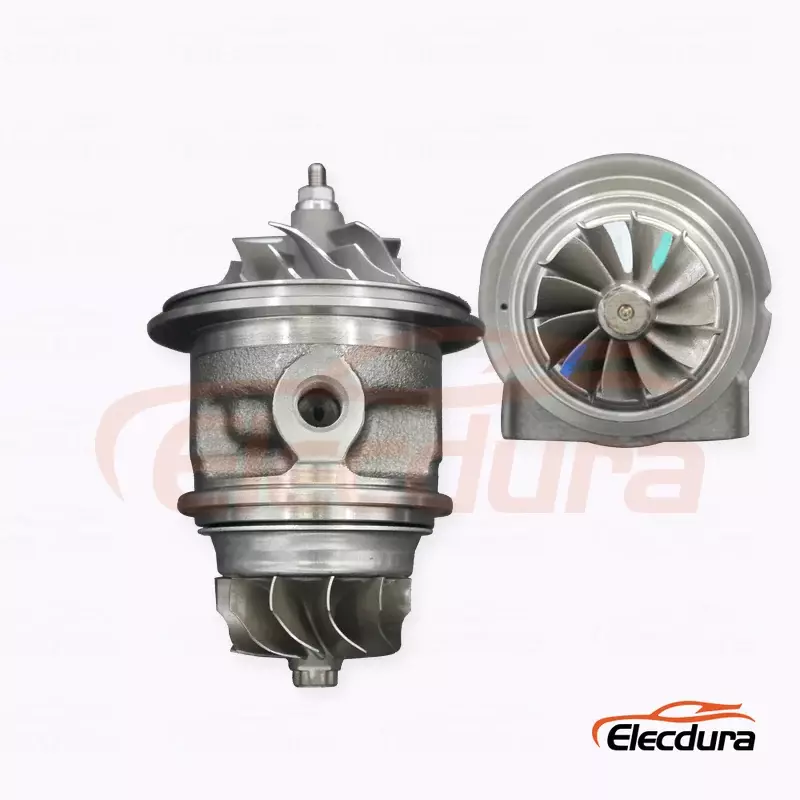

TD03L4 49131-05400 supports Ford Transit 2.4 TDCi commercial van and service-fleet repair.
The Ford OE is normalized to 6C1Q-6K682-DE, correcting the catalog character ambiguity.
Power rating, suffix and bearing-housing layout remain necessary checks within the 49131-054 family.
| Specification | Details |
|---|---|
| Product Type | Turbo Core / CHRA Cartridge |
| Fit Turbo Model | TD03L4 |
| Turbo Part Number | 49131-05400 / 49131-05403 |
| OE Reference Number | 6C1Q-6K682-DE / 1449608 |
| Engine / Application Reference | Ford Transit Puma 2.4L TDCi commercial repair reference |
| Engine Model | Puma 2.4L TDCi |
| Application Reference | Ford Transit commercial van reference |
| Reference Year | 2006 onward reference |
| Supply Direction | Commercial Van and Service Fleet Supply |
| MOQ | 100 pcs |
| Warranty | 12 Months |
| Supplier Brand | Elecdurauto |
| Data Correction | 6C1Q uses digit 1, not letter I |
| Reference Type | Reference Number |
|---|---|
| Turbo Part Number | 49131-05400 / 49131-05403 |
| OE Reference Number | 6C1Q-6K682-DE / 1449608 |
| Cross Reference | 49131-05401 / 49131-05402 / 6C1Q-6K682-DF |
| Matching Item | Reference Information |
|---|---|
| Turbo Model | TD03L4 |
| Turbo Part Number | 49131-05400 / 49131-05403 |
| OE Reference Number | 6C1Q-6K682-DE / 1449608 |
| Engine Model | Puma 2.4L TDCi |
| Application Reference | Ford Transit commercial van reference |
| Turbo Nameplate Photo | Recommended |
| Original Turbo / Cartridge Photo | Recommended when numbers are unclear |
| Special Matching Note | Catalog 6CIQ character is corrected to Ford format 6C1Q |
| Application Reference | Engine | Reference Year | Matching Basis |
|---|---|---|---|
| Ford Transit commercial van reference | Puma 2.4L TDCi | 2006 onward reference | 49131-05400 / 05403 and 6C1Q-6K682-DE align with Ford Transit 2.4 TDCi applications. |
Transit workshops gain a cartridge option for high-mileage delivery and recovery vehicles.
Correct OE formatting improves search and order accuracy.
Suffix-controlled stock prevents nearby TD03 versions from being merged.
Elecdurauto supplies the core for aftermarket commercial fleet programs.
Ford OE formatting uses the digit 1 in 6C1Q, while the catalog entry contains a character that can be read as I. Multiple matching records support 6C1Q-6K682-DE with 49131-05400. Correcting the character improves search and matching accuracy, while the turbo nameplate and Transit 2.4 TDCi engine remain required confirmation points. The TD03L4 49131-05400 evidence should remain attached to the distributor order and repair record.
49131-05400, -05401, -05402, and -05403 appear across related Transit service records. They may represent production or housing updates. Distributors should keep 49131-05400 as the main reference and record other suffixes separately until housing, wheel, and OE information agree. A shared TD03 family name does not guarantee one cartridge. The TD03L4 49131-05400 evidence should remain attached to the distributor order and repair record.
Ford Transit 2.4 TDCi applications were sold at several power levels with different turbo references. Recording engine output, year, and OE number helps distinguish TD03L4 49131-05400 from nearby Transit units. Power rating cannot replace the nameplate, but it provides a useful cross-check when repair buyers submit incomplete information. The TD03L4 49131-05400 evidence should remain attached to the distributor order and repair record.
Buyers should provide photographs of the bearing housing, oil ports, coolant fittings if present, and installed orientation. TD03 family applications can vary in housing layout even when the cartridge looks similar. Confirming the layout before dispatch reduces installation delays and helps the workshop route lines correctly after fitting TD03L4 49131-05400. The TD03L4 49131-05400 evidence should remain attached to the distributor order and repair record.
Ford Transit housings for TD03L4 49131-05400 should retain the correct 2.4 TDCi orientation, actuator mounting, and oil or coolant connections. The wastegate lever needs free travel and the turbine scroll must be free from cracking caused by repeated heat cycles. Because Transit service vehicles can accumulate high mileage, technicians should also examine exhaust-manifold distortion and compressor-inlet damage. Cartridge repair is sensible only after those checks show that the surrounding hardware can control and protect the new rotating assembly.
A cartridge option helps delivery, recovery, and service fleets return 2.4 TDCi vehicles to operation when housings remain reusable. Fleet records should store OE number, power rating, failure cause, and installation date. Elecdurauto supports number-led repeat procurement so distributors can plan stock from actual Transit demand rather than broad van listings. The TD03L4 49131-05400 evidence should remain attached to the distributor order and repair record.
