VG15600900017 HOWO Starter Motor Wholesale Supply

VG15600900017 Starter Motor B2B Fitment Guide for HOWO and SINOTRUK heavy trucks

HOWO truck-parts exporters, Sinotruk fleet distributors and heavy-duty starter wholesalers can use VG15600900017 as the commercial identity for the starter required in HOWO and SINOTRUK heavy trucks. The order should preserve the 10T pinion and the 24V 7.5kW 10T module-3.175 configuration tied to the full HOWO reference, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full VG15600900017 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

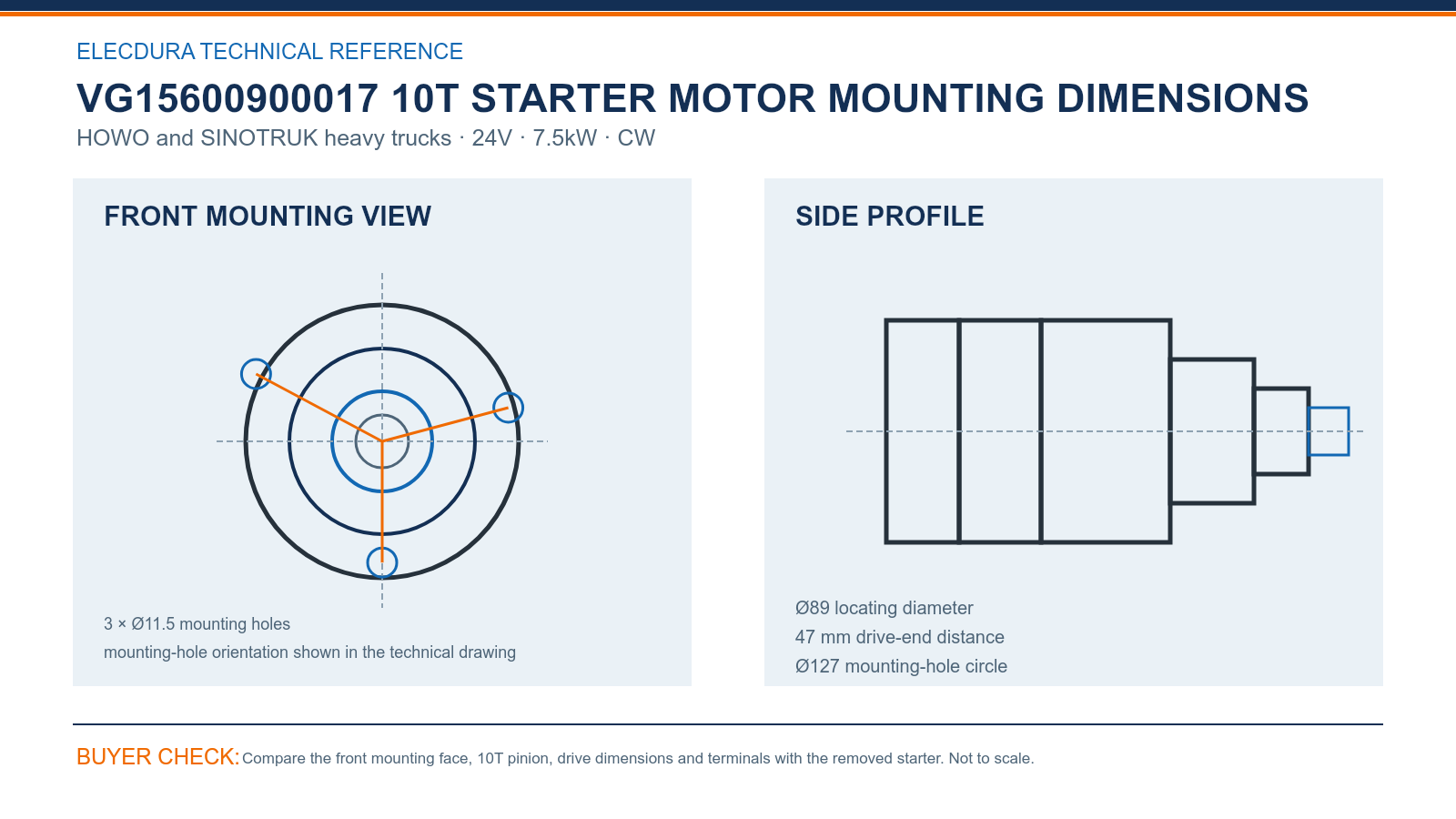

VG15600900017 Starter Motor Drive-End Drawing for Aftermarket Distributors

For VG15600900017 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø11.5 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 47 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the VG15600900017 mounting check, verify 24V, 7.5kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

VG15600900017 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: 8200901, VG15600900017, STD3325ML can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 7.5kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

VG15600900017 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of VG15600900017, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted VG15600900017 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved VG15600900017 configuration remains defined by 24V, 7.5kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

VG15600900017 Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for VG15600900017 in a HOWO dealer sourcing program?

A number match narrows the search but does not finish it. For VG15600900017, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of VG15600900017 in a HOWO dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing VG15600900017. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How should a fleet workshop verify VG15600900017 against the removed starter during dealer sourcing?

For VG15600900017, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 10T, Ø127 mounting-hole circle, Ø89 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Which VG15600900017 dimensions are practical for a warehouse inspection during a HOWO dealer inspection?

The first-lot check should cover 3 × Ø11.5 mounting holes, Ø89 locating diameter and 47 mm drive-end distance. Add the 10T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What demand information helps set a sensible reorder level for VG15600900017 in a HOWO dealer program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For VG15600900017, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

Which physical points should be checked before VG15600900017 enters branch stock during a HOWO dealer receiving check?

For VG15600900017, match carton and product labels to the purchase order, then sample 24V, 10T, 3 × Ø11.5 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about VG15600900017 in a HOWO dealer sourcing program?

A useful RFQ states VG15600900017, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned VG15600900017 starter in a HOWO dealer review?

For a service review of VG15600900017, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

VG15600900017 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with VG15600900017, the supported HOWO and SINOTRUK heavy trucks record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 7.5kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
