1J0907521 VW Audi Climatronic Blower Motor Resistor

Confirm Climatronic before Sourcing 1J0907521 Blower Resistors

The most important qualification is the HVAC control type. Exact-product evidence identifies 1J0907521 for Climatronic or electronically regulated air-conditioning systems across supported Volkswagen Group vehicles. A manual fan-speed panel can require a different resistor even when the model, year and installation area appear similar.

Sales teams should ask for a dashboard-control photograph and the removed-part number before quotation. That small step prevents a wide multi-brand application list from being mistaken for universal fitment and gives technical staff a reliable basis for approving the red-housing module.

Map 1J0907521 across VW, Audi, SEAT and Skoda Programs

The controlled range spans Transporter T4/Eurovan, Golf, Bora, New Beetle, Passat, Sharan and other Volkswagen platforms, plus Audi A3, A4, 80 and TT, SEAT Alhambra/Leon and Skoda Superb applications. This breadth is valuable for wholesalers, but the vehicle year and HVAC type must remain visible on every demand line.

Transporter T4 commercial-vehicle demand should not be hidden inside a generic passenger-car forecast. Keep the T4/Eurovan quantity separate until its approved sample has been compared with the same connector and insert profile used for Golf, Audi or other platform orders.

Control 1J0907521, 357907521 and 5DS00646701 Crosses

357907521 is a repeatedly supported predecessor/cross, while 5DS00646701 and 657364M are included in the controlled source group. These numbers improve search coverage, but the distributor should keep 1J0907521 as the public primary identity and retain each incoming reference exactly as supplied by the customer.

Cross approval should compare the red connector housing, terminal arrangement, insert profile and mounting direction. The broad vehicle family makes visual substitutions especially risky: a similarly colored or shaped resistor from a manual HVAC system must not enter the Climatronic bin.

• Keep 1J0907521 primary on cartons and public product data.
• Retain 357907521 and 5DS00646701 as searchable crosses.
• Record model, year and electronic HVAC configuration.
• Hold any sample with a different terminal or insert layout.

1J0907521 Incoming QC and Blower-Circuit Claim Review

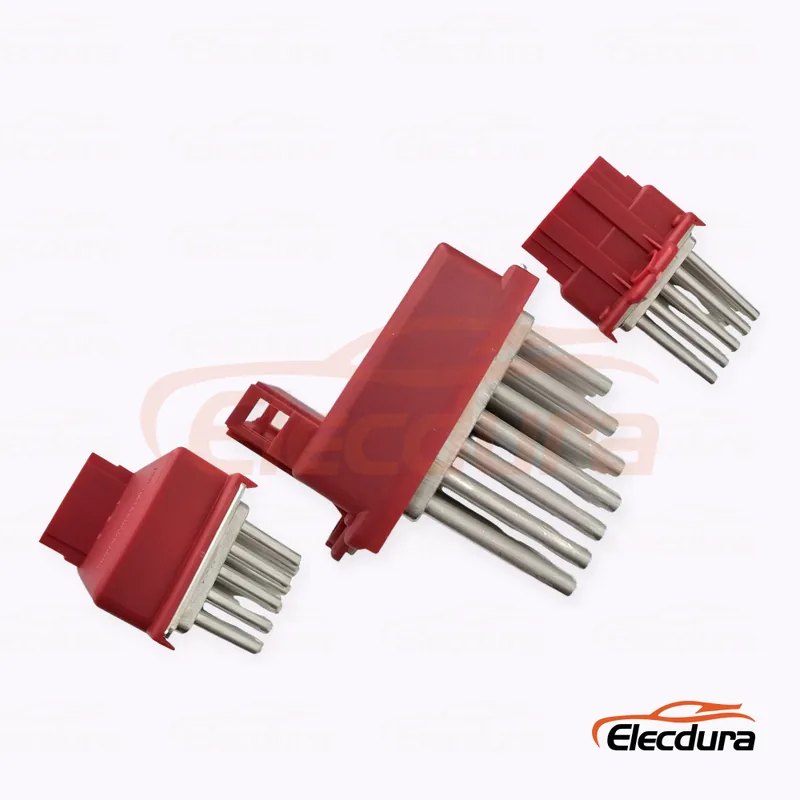

The golden sample should show the OE label, red connector face, terminal positions, full housing and insert side. Incoming inspection then has a concrete release standard for multi-brand lots, private-label packing and later replenishment rather than relying on a broad application description.

When selected fan speeds are lost, inspect blower-motor current, connector tension, wiring and airflow before replacing the resistor. A high-load motor or heat-damaged plug can reproduce the failure and should be documented so a distributor claim reflects the actual circuit condition.

1J0907521 Climatronic Blower Resistor Questions for Distributors

Is 1J0907521 suitable for manual HVAC fan controls?

The verified product scope is for Climatronic or electronically regulated air-conditioning systems. A manual fan-speed panel can use another resistor architecture, so buyers should confirm the dashboard controls and removed-part OE rather than ordering from model and year alone. A dashboard photograph provides a fast, auditable check for remote quotations.

Why does 1J0907521 cover so many Volkswagen Group vehicles?

Several VW, Audi, SEAT and Skoda platforms share related electronic blower-control architecture. That platform coverage makes the part attractive for wholesale stock, but each order still needs model, year and Climatronic confirmation because not every HVAC option within those vehicles uses the same resistor. Keep platform volumes separate until every intended application has passed sample approval.

Can 357907521 be stored as 1J0907521 inventory?

357907521 is a well-supported cross or earlier reference. Consolidate it only after the red connector housing, terminal arrangement, insert profile, mounting direction and electronic HVAC application match the approved 1J0907521 sample, while retaining both numbers in searchable data. Document the consolidation decision in the receiving standard before combining bins.

What role does 5DS00646701 play in the product identity?

It is another verified cross in the OE group and can support purchasing searches. It should not replace the public primary OE or bypass physical inspection; receiving teams still need to compare the terminal layout, housing and vehicle configuration with the golden sample. Retain 5DS00646701 on the inquiry record so cross-based demand remains traceable.

Which light-commercial application is important for this product?

Volkswagen Transporter T4 and Eurovan applications are part of the controlled scope when equipped with the applicable electronically regulated HVAC system. Distributors should keep this van demand visible rather than assuming a Golf or Audi sample automatically covers every Transporter configuration. Approve a dedicated T4 sample when commercial-vehicle volume is commercially significant.

What should a 1J0907521 sample photograph set show?

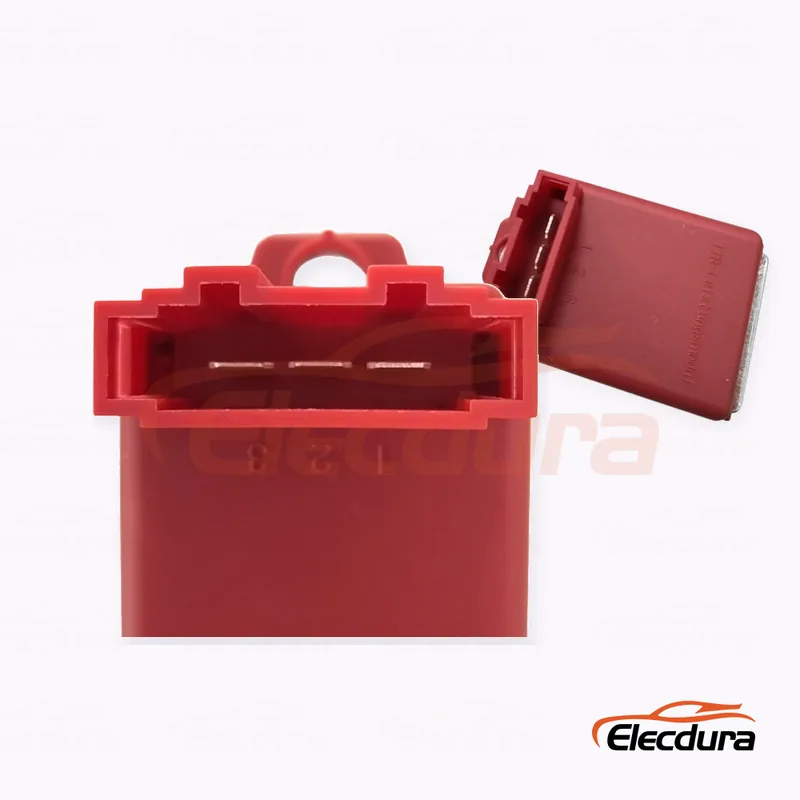

Include the readable OE marking, straight-on red connector face, all terminal positions, the full housing, insert side and mounting direction. Add the vehicle model/year and a dashboard HVAC-control photograph so the physical sample remains tied to a confirmed Climatronic application. Those images become the receiving reference for later private-label production lots.

What incoming-QC checks prevent cross-family mixing?

Verify the primary and secondary labels, red housing shape, connector keying, terminal count and spacing, insert profile and mounting features against the approved sample. Any unit from a manual-control family or with different terminals should be isolated before relabeling or private-label packing. Recheck the same features whenever the factory batch or packing identity changes.

What can cause repeated failure after fitting 1J0907521?

Excessive blower-motor current, poor terminal tension, overheated wiring or restricted airflow can overload the resistor. The workshop should test the motor under load and document connector condition before the distributor decides whether the returned module represents a part defect or a system problem. Attach the current and connector findings to the claim before authorizing replacement.

What information completes a wholesale RFQ for 1J0907521?

Send the complete OE or controlled cross, vehicle make/model/year, confirmation of Climatronic or electronic HVAC, connector photographs, quantity by platform, destination, packaging and sample requirements. A separate Transporter T4 quantity is useful when commercial-vehicle demand is included. State the initial sample quantity and validation market for every new program.

Request 1J0907521 Climatronic Samples and Multi-Platform Pricing

Provide 1J0907521 or the source cross, vehicle model/year, Climatronic confirmation and clear images of the red connector and insert side. Elecdura will return a quotation tied to the correct electronic blower-control configuration.

For multi-platform programs, state the Volkswagen, Audi, SEAT, Skoda and Transporter T4 volume split, destination, private-label needs and receiving criteria. This keeps broad search coverage without turning the product into a universal resistor claim.
