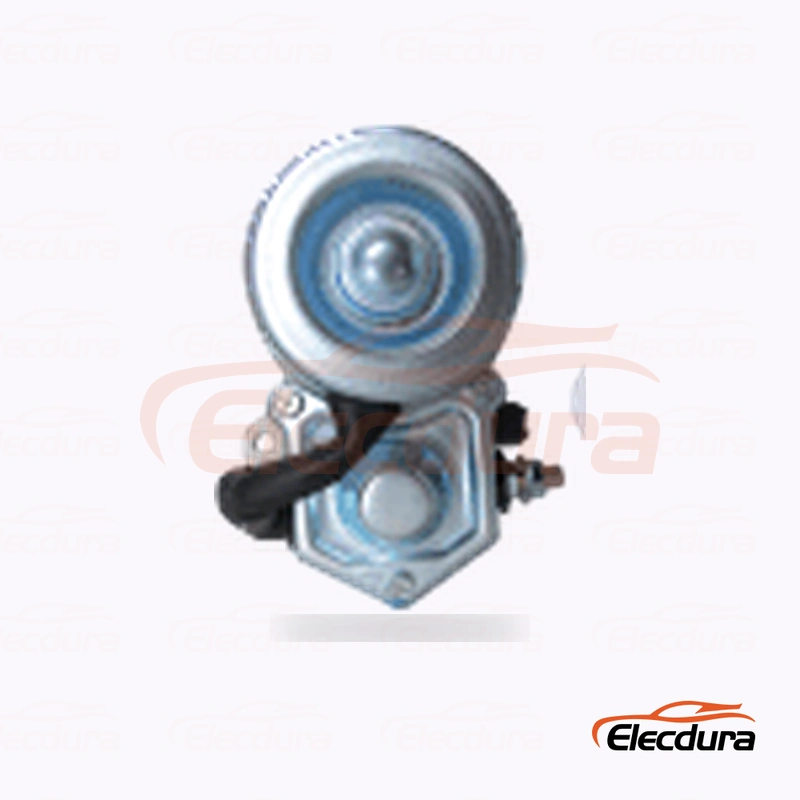

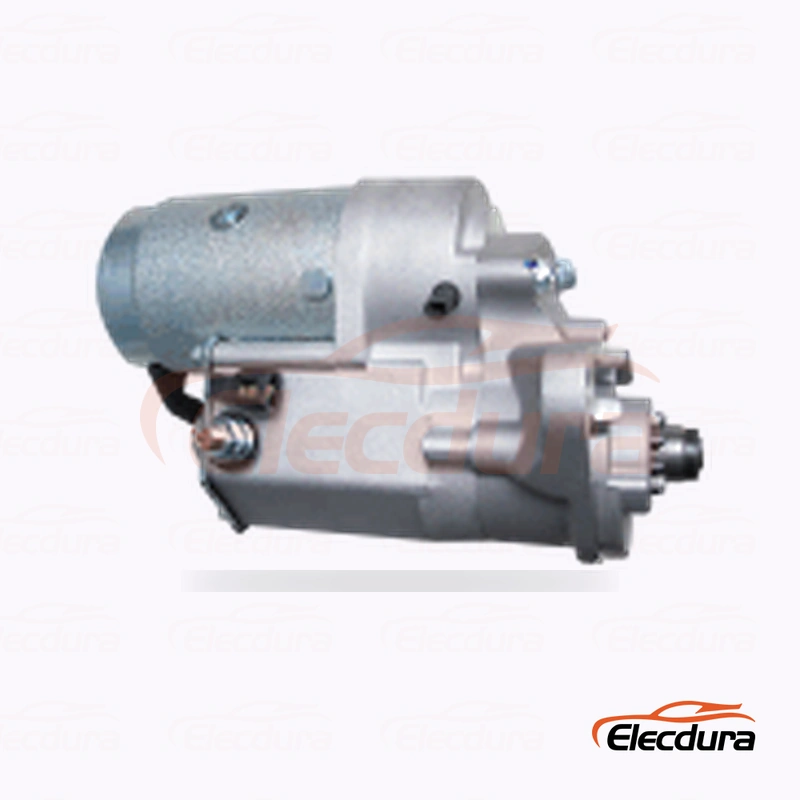

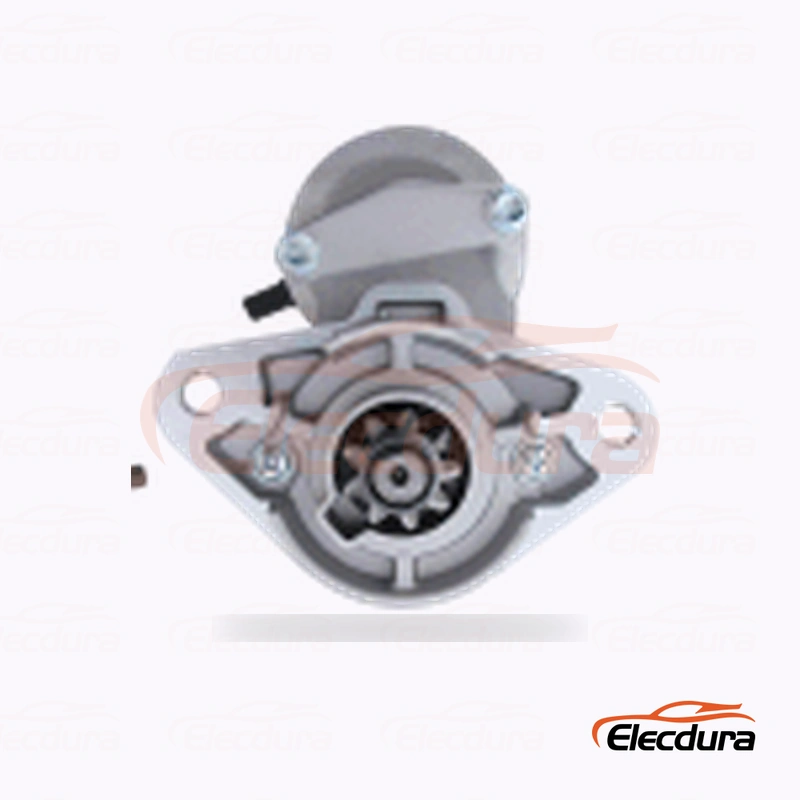

0001109035 Perkins 100 and 400 Series Starter Motor 12V 2.0kW 9T

0001109035 Perkins 100 and 400 Series Starter Motor B2B Supply for Aftermarket Buyers

0001109035 gives aftermarket buyers a defined 12V, 2.0kW, 9-tooth clockwise configuration for Perkins 100 and 400 Series engines used in JCB, Caterpillar, Volvo Penta and compact industrial equipment. Link the complete reference group to the buyer’s machine or engine record, then approve the mounting geometry, pinion position and terminal layout before releasing distributor stock.

0001109035 Starter Motor B2B Production and Test Video for Wholesale Supply

This video introduces Elecdura starter-motor production and supply capabilities. Use the specification, cross-reference details and fitment checks on this page when evaluating 0001109035.

0001109035 Starter Motor Distributor Specifications for Distributor Sourcing

0001109035 Starter Motor OE Cross-Reference Review for Bulk Procurement

Use 0001109035 as the primary purchasing reference and cross-check U5MK8260, U5MK8261, 1850866, 18949. These numbers identify the candidate starter family, but approval still requires the exact suffix, electrical rating, drive end, mounting geometry, pinion and terminal layout to match the removed unit or signed sample.

0001109035 Starter Motor Bulk Fitment Approval for B2B Supply

Before accepting 0001109035 as a replacement, obtain the full vehicle, machine or engine record and compare machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance. Cross-reference overlap is useful for finding the family, but it cannot replace a physical match. Store the approved label and four-angle photo set with the account so later orders use the same configuration.

0001109035 Starter Motor Wholesale Receiving Inspection for Aftermarket Buyers

Receiving control should link the carton, unit label and inspection sample to 0001109035. Verify electrical rating, drive-end geometry, mounting bores, terminal position, housing protection and lot identity; photograph deviations and keep affected units separate while the supplier responds. Batch evidence makes repeat purchases more predictable and gives warranty teams a clear record if field feedback appears.

0001109035 Starter Motor MOQ and Private-Label Supply for Fleet Replacement

0001109035 Starter Motor Distributor FAQ for Wholesale Supply

What should be diagnosed before replacing a 0001109035 starter motor?

Inspect battery bank balance, cranking voltage, cable and ground drop, control relay, ring gear and engine drag before condemning the starter. Record battery voltage at rest and during the start command, then measure voltage drop under load; a weak supply or poor ground can imitate starter failure. Inspect the mounting surface and gear engagement as well. Attach these results, the old-unit label and failure symptoms to the claim so the supplier can distinguish a product defect from an upstream electrical or mechanical problem.

How should a distributor request B2B pricing for 0001109035?

Send 0001109035 and all visible OE numbers, the full application or engine record, required quantity, destination and target delivery date. Add clear photos of the label, drive end, mounting face and terminals, plus any dimensional drawing available. State packaging, private-label, sample and inspection requirements at the start. A technically complete RFQ lets the supplier quote one verified configuration and reduces clarification delays after price approval.

What approval sequence is recommended for 0001109035 procurement?

The standard MOQ is 20 pieces, subject to final order confirmation, and a sample or pre-production approval should precede volume release when fitment evidence is incomplete. Mark the approved sample with 0001109035, buyer application and revision date. Repeat orders should reference that same approval plus any packaging specification. If the supplier, suffix or physical design changes, treat it as a new approval rather than assuming the previous decision still applies.

What packaging options are available for 0001109035 distributors?

Neutral packaging and private-label review are available for qualified orders. The carton and inner protection should prevent movement, terminal damage and contamination while keeping the product reference, lot identity and quantity readable. Private-label artwork must not remove the technical identifiers used for fitment and claims. Agree label content, barcode needs, carton strength and destination handling prior to production so the packaging supports both sales presentation and receiving control.

What records support a fair 0001109035 warranty review?

The standard warranty is 18 months under agreed sales terms, but a claim still needs traceable supporting evidence. Record the invoice or lot, installed application, old and supplied references, installation date, symptoms and electrical test results. Include photographs of the unit, terminals, mounting and pinion. Do not dismantle or discard the product before instructions are agreed. Complete supporting evidence speeds technical review and prevents a battery, wiring or ring-gear problem from being misclassified.

Which reference numbers should buyers confirm for 0001109035?

Use 0001109035 as the control reference and cross-check U5MK8260, U5MK8261, 1850866, 18949. Retain the complete old-unit label plus drive-end, mounting-face and rear-terminal photos with the quotation and purchase line so repeat orders remain tied to the approved unit.

Which applications should buyers confirm for the 0001109035 starter motor?

The specified application is Perkins 100 and 400 Series engines used in JCB, Caterpillar, Volvo Penta and compact industrial equipment. Because a model or engine family can include production changes, confirm the machine, vehicle or engine record and the complete old-unit suffix before promising fitment. Keep the approved record tied to one physical starter configuration.

Which electrical and drive specifications define 0001109035?

The specified configuration is 12V, 2.0kW, 9-tooth clockwise configuration. Voltage must match the electrical system, while power, tooth count and rotation affect cranking performance and ring-gear engagement. Put all four values on the sample-approval sheet and verify the physical pinion before releasing a distributor quantity.

Why is suffix-level verification important for 0001109035?

Confirm the complete 0001109035 / U5MK8260 / U5MK8261 / 1850866 / 18949 group together with the 12V, 2.0kW, 9-tooth clockwise configuration. Similar appearance or a shared partial number is not enough; compare machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance against the removed unit or approved sample and keep the signed sample with the purchase record.

Request a B2B Quote for 0001109035 Starter Motors

Send the complete reference, Perkins 100 and 400 Series engines used in JCB, Caterpillar, Volvo Penta and compact industrial equipment, old-unit photos, quantity, destination and packaging or inspection requirements. Elecdura will use that evidence to review one defined aftermarket starter configuration for your quotation.
