114335 Isuzu Starter Motor 12V 2.5kW 9T Wholesale Supply

114335 Isuzu Starter Motor Support for Commercial Parts Buyers

114335 is a recognized Cargo reference, but an Isuzu buyer still needs to identify the vehicle, engine or industrial machine that carries the removed starter. The three-hole face is not evenly spaced, so a general 12V 9T description cannot confirm the mounting pattern or terminal access.

Send the Isuzu model, engine and serial information, the complete old-unit number, and square photographs of the face, pinion and terminals. Elecdura compares the 51°/39°/39° orientation, locator and drive position with the identified unit before returning the wholesale configuration.

1. Keep the application and old reference together.

2. Measure the face rather than estimating from appearance.

3. Use the same checkpoints when stock arrives.

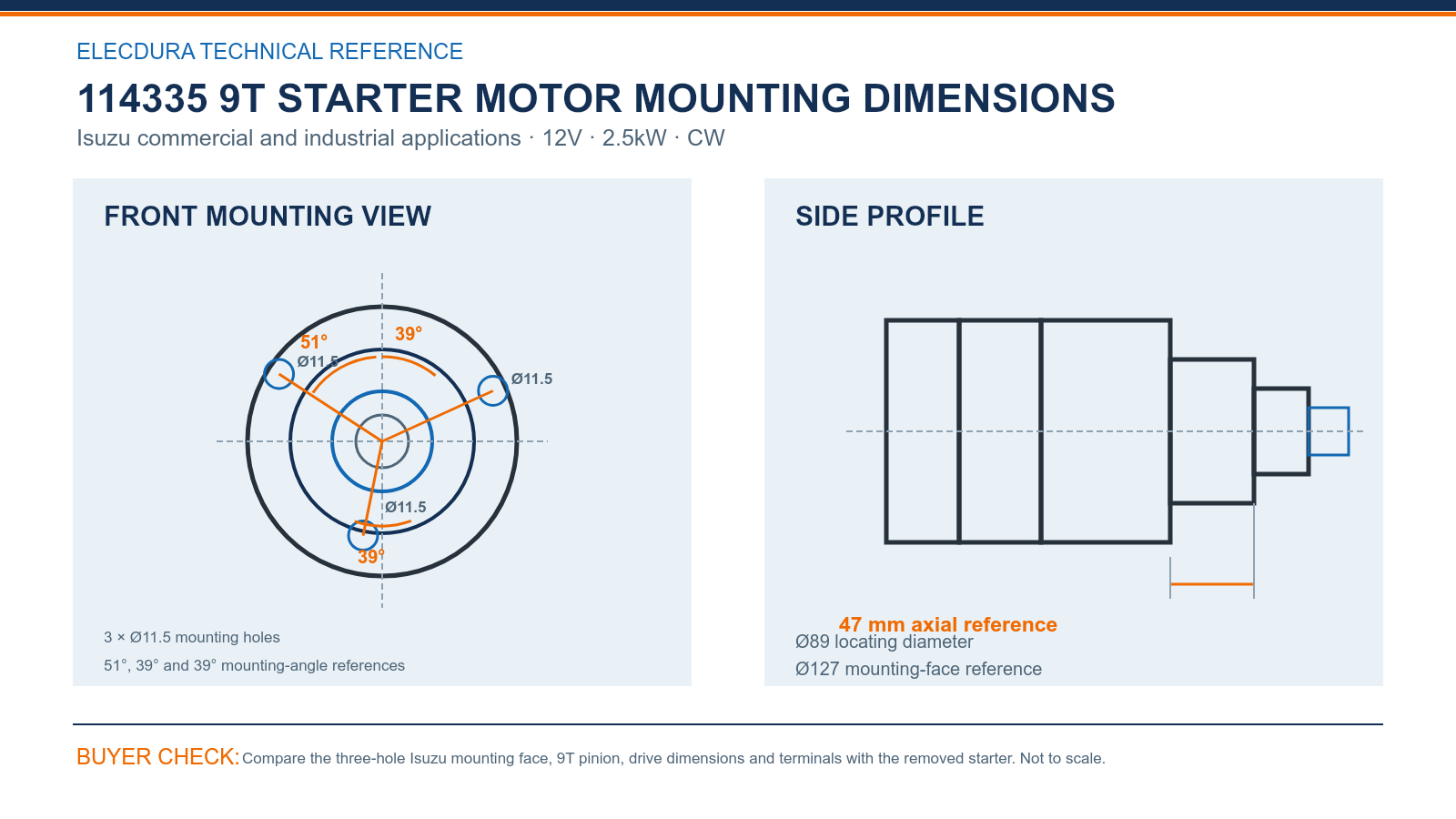

114335 Starter Motor Specifications and B2B Fitment Drawing

114335 9T starter motor mounting and drive-end dimensions for buyer-side comparison.

Isuzu buyers should compare 3 × Ø11.5 mounting holes, 51°, 39° and 39° mounting-angle references, Ø89 locating diameter, 47 mm axial reference and Ø127 mounting-face reference. The asymmetric three-hole pattern is a stronger fitment clue than a general 12V 9T listing when the exact vehicle or industrial installation varies.

Send the Isuzu model and engine details with square face, pinion and terminal photographs, and take dimensions from the old unit rather than the illustration. The resulting 114335 comparison gives importers a clear basis for the first order and later incoming inspection.

114335 Starter Motor Cargo and Bosch Reference Checks for Importers

The reference trail can include STR6079, 700.541.113.900 and Bosch F042S00077. Use the complete number from the removed starter together with the Isuzu model and engine details, then confirm the electrical, drive and housing identity before quotation.

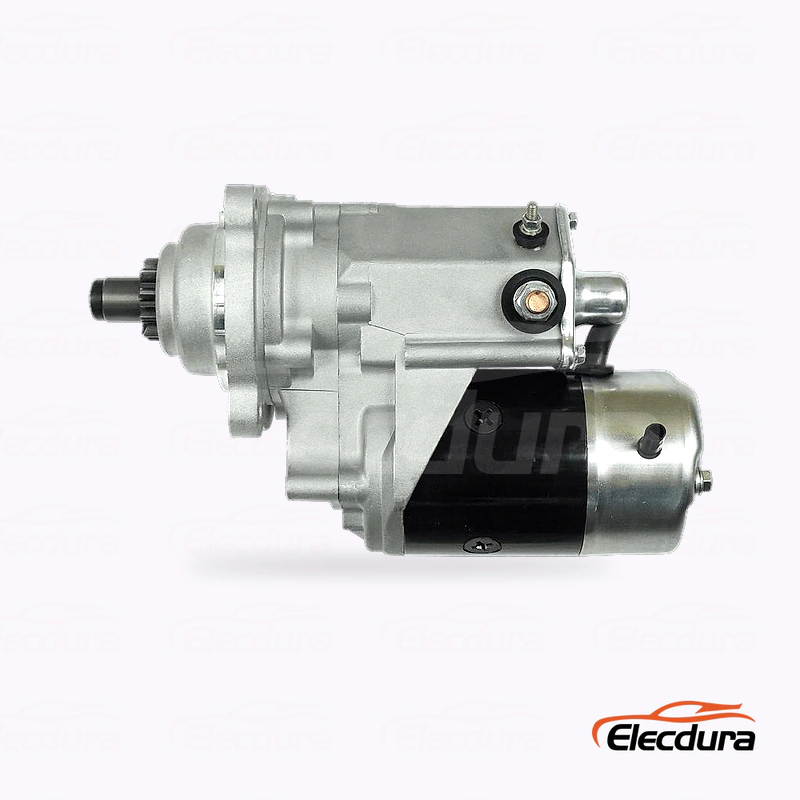

• Electrical identity: 12V and 2.5kW.

• Drive identity: 9 teeth, module 3 and clockwise rotation.

• Housing identity: three Ø11.5 holes, Ø89 locator and Ø127 face.

114335 Starter Motor Wholesale Planning for Isuzu Service Stock

When application coverage is broad, an importer should build demand from confirmed customer records rather than assuming one Cargo number serves every Isuzu vehicle or engine. Retain the first successful installation by model, engine, face photograph and terminal orientation, then assign repeat quantities only to matching records.

Elecdura can quote a controlled first quantity, neutral cartons and later replenishment after the buyer provides destination, forecast and packaging needs. Complete carton labels help warehouse staff keep this 9T three-hole unit separate from other Isuzu starters with different mounting faces.

The video presents Elecdura starter-motor assembly and electrical testing. Send the Isuzu application, Cargo or Bosch number, face, pinion and terminal photographs, quantity and destination so the reply can cover the defined 12V 2.5kW 9T unit and wholesale terms.

114335 Starter Motor Wholesale FAQ

What Isuzu information should accompany a 114335 inquiry?

Provide the vehicle or machine model, engine type, serial or chassis information and the complete number on the removed starter. Add clear photographs of the label, three-hole face, nine-tooth pinion and terminals. Combining the Isuzu identity with physical evidence lets Elecdura prepare one professional quotation without implying that the same starter fits every Isuzu application.

Which specifications should an importer confirm for Cargo 114335?

Confirm 12V, 2.5kW, nine teeth, module 3 and clockwise rotation against the removed starter and the quotation. Then compare the three-hole mounting angles, locating diameter, drive position and terminals. This combined check gives purchasing, workshop and receiving teams the same physical identity and avoids relying on a single reference number without installation evidence.

How should F042S00077 be used with Cargo 114335?

F042S00077 is a Bosch cross-reference lead connected to the same purchasing trail, while STR6079 and 700.541.113.900 may also appear in records. Keep the exact old-unit number and Isuzu application in the RFQ, then verify voltage, power, pinion, face and terminals. Cross-references support discovery but do not replace the physical comparison.

What makes the 114335 mounting face distinctive?

The face uses three Ø11.5 mounting holes with 51°, 39° and 39° angle references, plus an Ø89 locating diameter and Ø127 face reference. Photograph and measure the removed starter squarely rather than judging the pattern from an angled image. This geometry helps separate the intended unit from other Isuzu starters with different hole spacing.

Why should an importer avoid treating 114335 as universal?

The Cargo number identifies a product family, but Isuzu applications can differ by engine, vehicle generation, mounting nose and terminals. Build the order from confirmed model and installed-starter records. A first successful installation should be saved with photographs and measurements, then used only for matching applications instead of extending the fitment claim to every Isuzu machine.

What should be documented during the first installation?

Confirm face seating, bolt alignment, cable clearance and clean nine-tooth engagement, then record cranking voltage and prompt release. Save the Isuzu model, engine or chassis details, installation photographs and shipment lot. If performance is poor, inspect batteries, grounds, cables and ring gear so the workshop does not diagnose every electrical problem as a starter fault.

How should an incoming 114335 order be checked?

Sample cartons from different pallet positions and compare complete labels, nine-tooth drives, three-hole angle pattern, terminal guards and packaging condition with the retained reference. Record the lot and isolate any unit with another voltage, pinion or mounting face. This prevents a visually similar Isuzu starter from being mixed into the confirmed warehouse line.

Which details help Elecdura prepare a wholesale offer?

Send the complete Cargo, Unipoint, PSH or Bosch number, Isuzu application, quantity, destination and target date, plus clear old-unit photographs. State whether neutral packaging, customer labels or scheduled deliveries are required. With this information, Elecdura can quote one defined 12V 2.5kW 9T starter and practical logistics without overstating fitment.

Request a 114335 Starter Motor Wholesale Quote

Send 114335 or the complete related Cargo, Unipoint or Bosch reference, Isuzu model and engine details, old-unit mounting, pinion and terminal photographs, quantity and destination. Elecdura will quote the 12V 2.5kW 9T CW starter with angle checks, packaging choices and delivery terms.

If several Isuzu applications are included, separate them by model, engine and installed number. This allows one logistics plan without implying that every application uses the same three-hole configuration.
