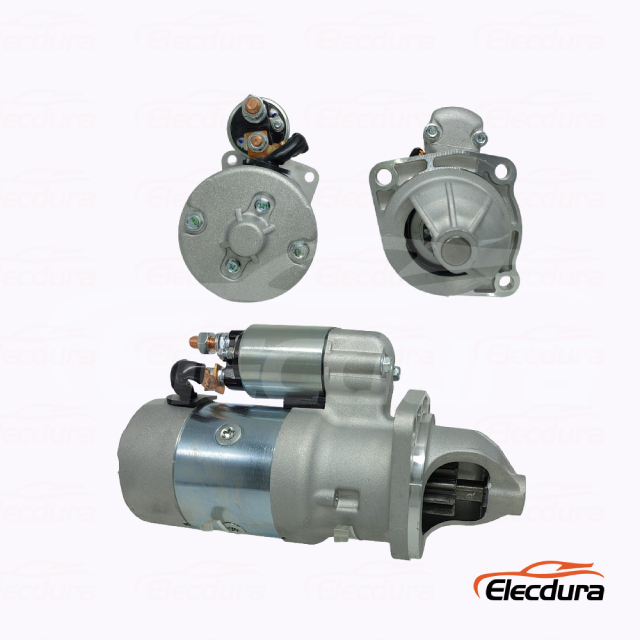

The M93R103 is a 12V, 3kW aftermarket starter for replacement reference 35259430. It has a 10-tooth, 37.8 mm pinion and a Ø98.3 mm mounting register for matching Volkswagen and MWM starter applications.
| Availability: | |
|---|---|
| Quantity: | |
The M93R103 is a 12V, 3kW aftermarket starter for replacement reference 35259430. It has a 10-tooth, 37.8 mm pinion and a Ø98.3 mm mounting register for matching Volkswagen and MWM starter applications.
12V
3kW
10 teeth
37.8 mm pinion
| Specification | M93R103 |
|---|---|
| Configuration code | M93R103 |
| Rated power | 3kW |
| System voltage | 12V |
| Pinion teeth | 10 |
| Pinion outside diameter | 37.8 mm |
| Mounting register diameter | Ø98.3 mm |
| Mounting holes | 3 × Ø11.5 mm |
| Overall length in drawing | 278 mm |
Drive-end housing and flange
Solenoid terminals and rear cover
Use reference 35259430 with the installed starter number to identify the required Volkswagen or MWM replacement application. This page describes the M93R103 3kW configuration.
Match the vehicle or engine details, 12V electrical system and mounting dimensions before ordering. Other products may share cross-reference numbers while using a different power rating, housing or register diameter.
The drawing identifies the Ø98.3 mm mounting register, three Ø11.5 mm holes and 278 mm overall length. Compare the enclosed drive-end housing and 37.8 mm pinion with the removed starter. The rear photograph shows the terminal positions and the cable connection between solenoid and motor.
| Brand | Part number | Type |
|---|---|---|
| Prestolite | 35259430 | Replacement reference |
| Volkswagen | 2RO911023A; TJG911023B | Associated cross-reference numbers |
| MWM | 905720100079 | Associated cross-reference number |
Elecdura supplies aftermarket replacements. The reference brands and numbers identify replacement applications; they do not identify the manufacturer of the supplied product.
No. These dimensions describe M93R103. Check the configuration code, power rating, register diameter and drive-end position when comparing another starter offered under the same cross-reference.
This is an Elecdura aftermarket replacement. Prestolite, Volkswagen and MWM numbers identify the replacement application; they do not identify the manufacturer of the supplied product.
Protective packaging concept · M93R103 · AI-assisted visualization
Specify M93R103 / 35259430, 12V and 3kW, then provide the quantity, installed starter number, vehicle or engine details and destination. Include any carton and label requirements.
