S1034 VW Volksbus Starter Motor Wholesale Supply

S1034 Starter Motor B2B Fitment Guide for Volkswagen Volksbus 6.5 and 8.3

Volksbus distributors and fleet workshops can use S1034 as the commercial identity for the starter required in Volkswagen Volksbus 6.5 and 8.3. The order should preserve the 10T pinion and the short 25 mm drive position for the 24V 4.0kW 10T Volksbus group, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full S1034 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

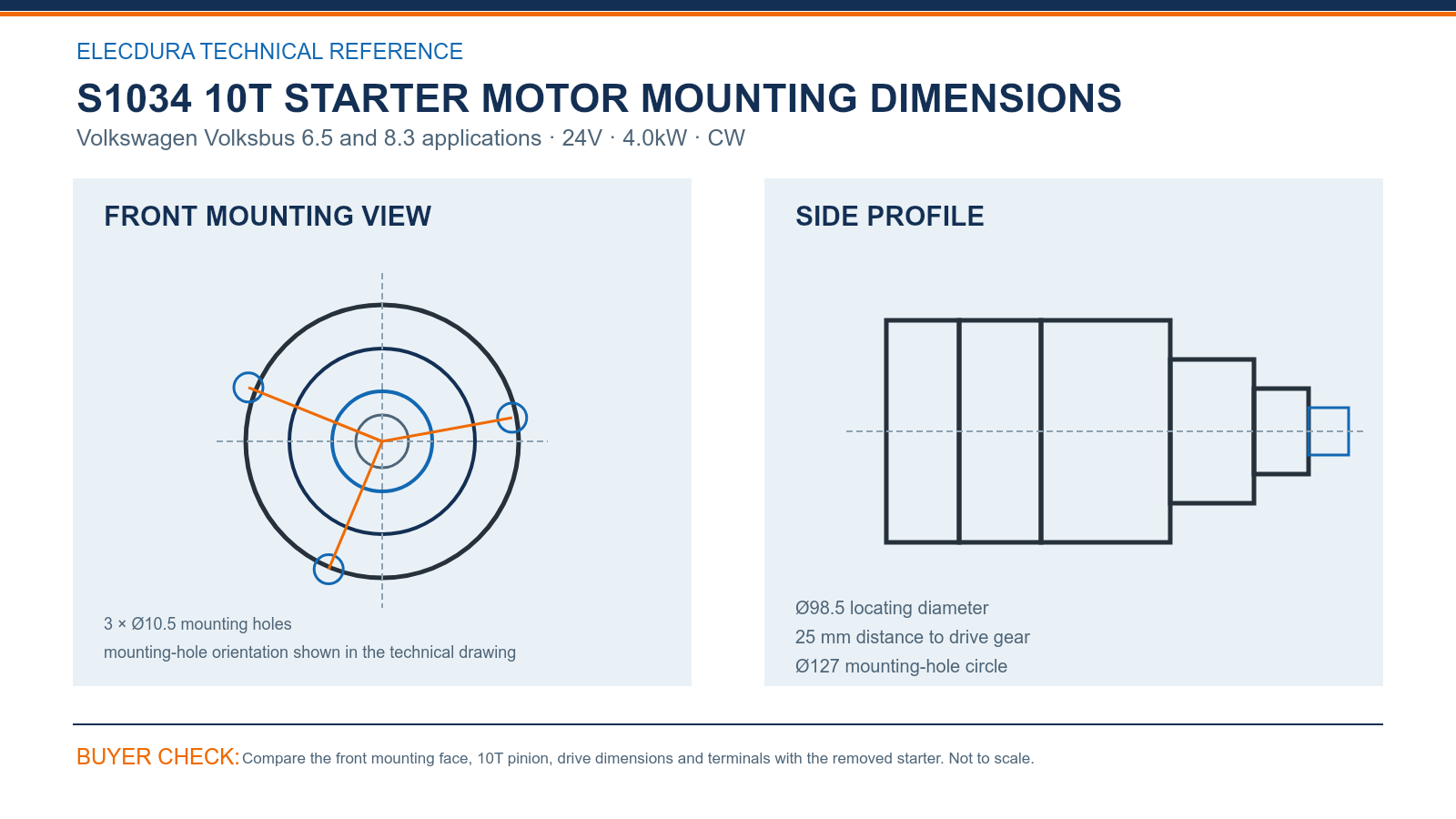

S1034 Starter Motor Drive-End Drawing for Aftermarket Distributors

For S1034 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø10.5 mounting holes, Ø98.5 locating diameter, Ø127 mounting-hole circle and 25 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S1034 mounting check, verify 24V, 4.0kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S1034 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S1034, 8200357, TAR911023, M009T62571, M009T62572, 6365N, REM8200357 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

S1034 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S1034, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S1034 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved S1034 configuration remains defined by 24V, 4.0kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

S1034 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for S1034 in a VW Volksbus dealer review?

Keep the carton or product traceability code and note when and where S1034 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

Why is the S1034 reference match only the start of product selection in a VW Volksbus dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S1034 group is acceptable only when 24V, 4.0kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Which details separate S1034 from similar starters used around Volkswagen Volksbus 6.5 and 8.3 during dealer sourcing?

For S1034, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 4.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

What workshop readings are useful when diagnosing a starting complaint involving S1034 in a VW Volksbus dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S1034. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming S1034 during a VW Volksbus dealer inspection?

Place the removed starter and S1034 on the same mounting-face orientation. Compare Ø98.5 locating diameter, Ø127 mounting-hole circle, the 3 × Ø10.5 mounting holes and the 25 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can urgent service demand and routine S1034 replenishment share one enquiry in a VW Volksbus dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S1034 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched S1034 unit quickly during a VW Volksbus dealer receiving check?

For S1034, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø10.5 mounting holes, Ø98.5 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for S1034 in a VW Volksbus dealer sourcing program?

Send the complete OE number, exact Volkswagen Volksbus 6.5 and 8.3 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 4.0kW 10T CW starter with packing, lead time, warranty and freight options.

S1034 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with S1034, the supported Volkswagen Volksbus 6.5 and 8.3 record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 4.0kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
