S1230S VW Starter Motor Wholesale Supply

S1230S Starter Motor Fleet Replacement Supply for Volkswagen commercial vehicles

S1230S supports Volkswagen commercial vehicles sourcing where buyers need a defined electrical and drive-end match. Its 24V, 4.0kW, 10T CW specification must remain linked to the supplier-specified 24V 4.0kW 10T module-3.175 drive for the S1230S Volkswagen record; a visually related unit may belong on a different RFQ line.

Before comparing S1230S prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S1230S Starter Motor Technical Data for Fleet Parts Buyers

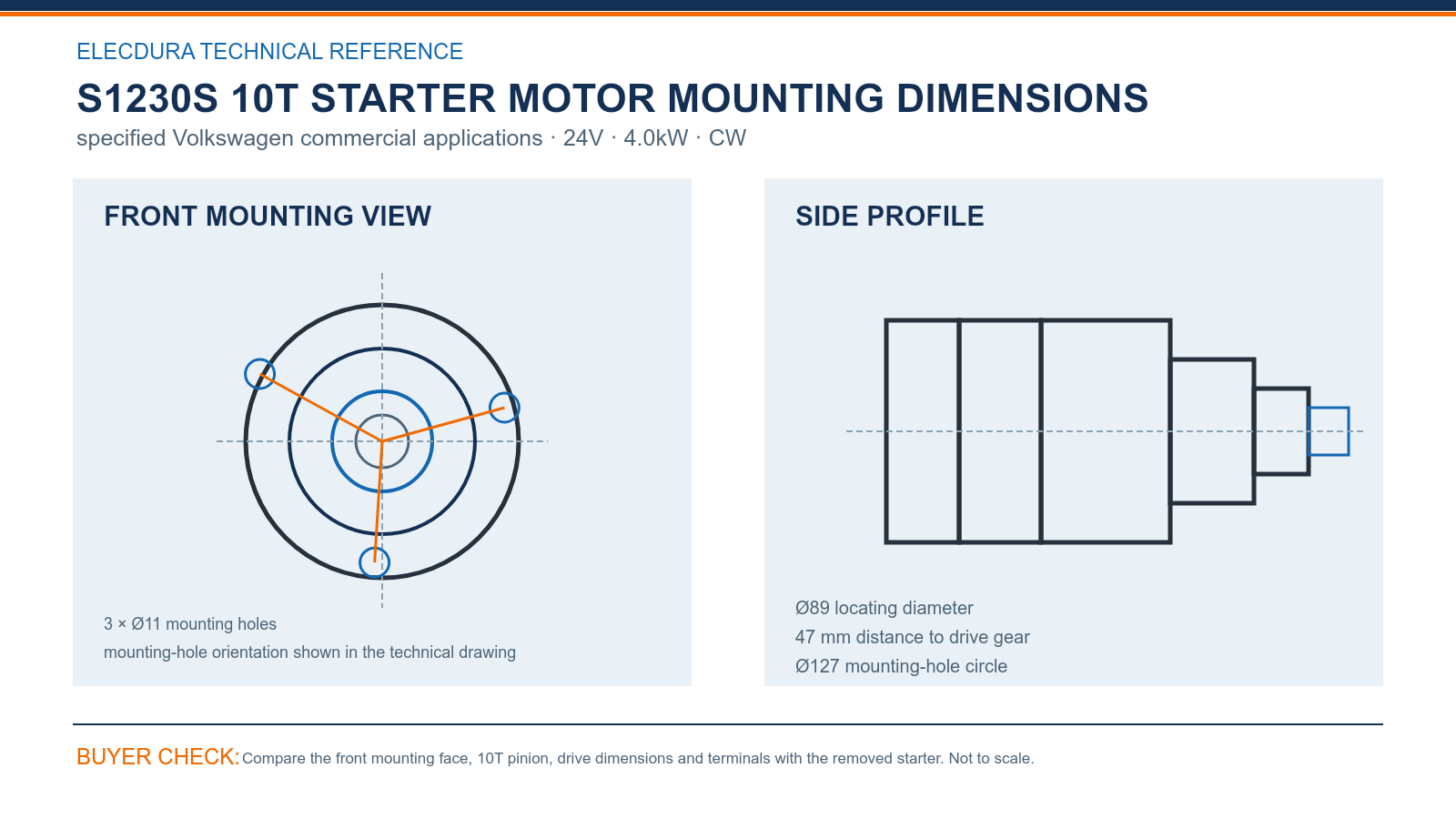

The S1230S dimensional review starts at the mounting face: verify 3 × Ø11 mounting holes, Ø127 mounting-hole circle and Ø89 locating diameter. Then compare the 47 mm distance to drive gear. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S1230S, electrical and mechanical identity must agree: 24V, 4.0kW, 10T, module 3.175 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S1230S Starter Motor Cross-Reference Review for Fleet Buyers

The S1230S cross-reference group includes S1230S, 2071557, 8200387, 201-29211, TS-1876. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 4.0kW, 10T, CW, mounting geometry and terminals.

If a mixed S1230S enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S1230S Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S1230S can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Volkswagen commercial vehicles population, recent consumption and transfer time between service locations. Keeping S1230S, the 10T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S1230S, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S1230S Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S1230S stock in a VW workshop program?

Begin with a verified sample and keep its flange, pinion and terminal photographs available for later distributor replenishment. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What pre-installation circuit review supports replacement with S1230S in a VW workshop workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S1230S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Can S1230S be selected from the application name alone during workshop sourcing?

Confirm S1230S against the complete OE number, the stated Volkswagen commercial vehicles use and clear front, side and terminal photographs. The decisive points are 10T, 3 × Ø11 mounting holes and 47 mm distance to drive gear. Those controls keep visually related starters from being combined in one order.

Which checks should follow an OE-number match for S1230S in a VW workshop sourcing program?

A number match narrows the search but does not finish it. For S1230S, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which dimensions in the S1230S drawing should receiving teams sample during a VW workshop inspection?

For S1230S, sample the 3 × Ø11 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 47 mm distance to drive gear. Count the 10T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

What receiving records are useful for a shipment of S1230S during a VW workshop receiving check?

Receiving should verify the S1230S label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø89 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S1230S in a VW workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S1230S, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S1230S in a VW workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S1230S without assuming that every no-crank complaint originates inside the starter.

S1230S Ask for Starter Motor Export Pricing

Prepare the S1230S enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
