D11-101-08 Shanghai Diesel Starter Motor 24V 8.5kW 11T

D11-101-08 Heavy-Duty Starter Motor for SHANGHAI D6114

For importers defining label requirements, this aftermarket heavy-duty starter motor is specified for SHANGHAI D6114 with 24V, 8.5kW and 11T. The page keeps the replacement identity, technical definition and B2B purchase information in one place.

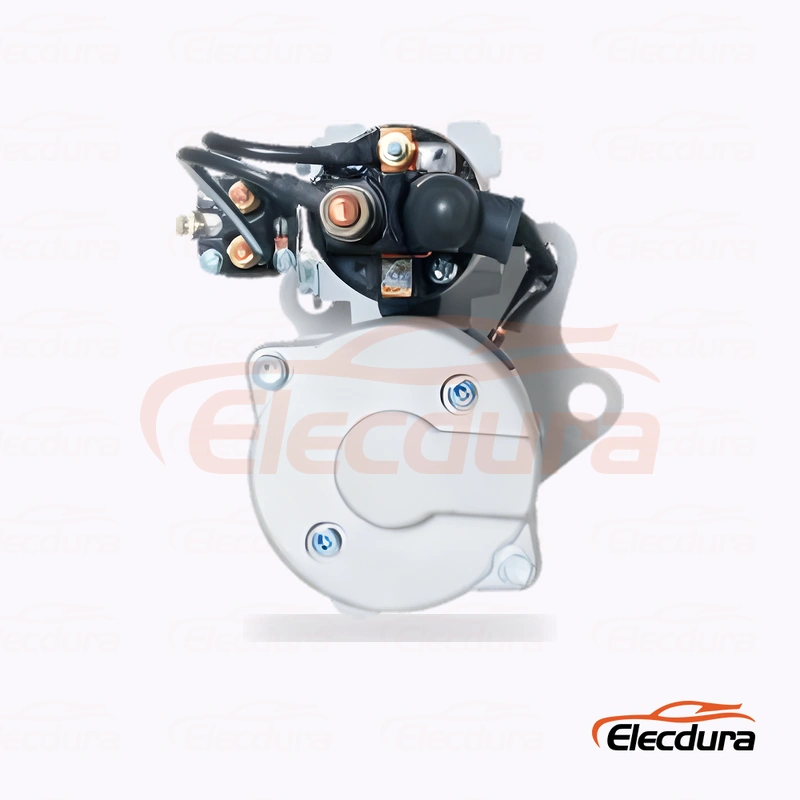

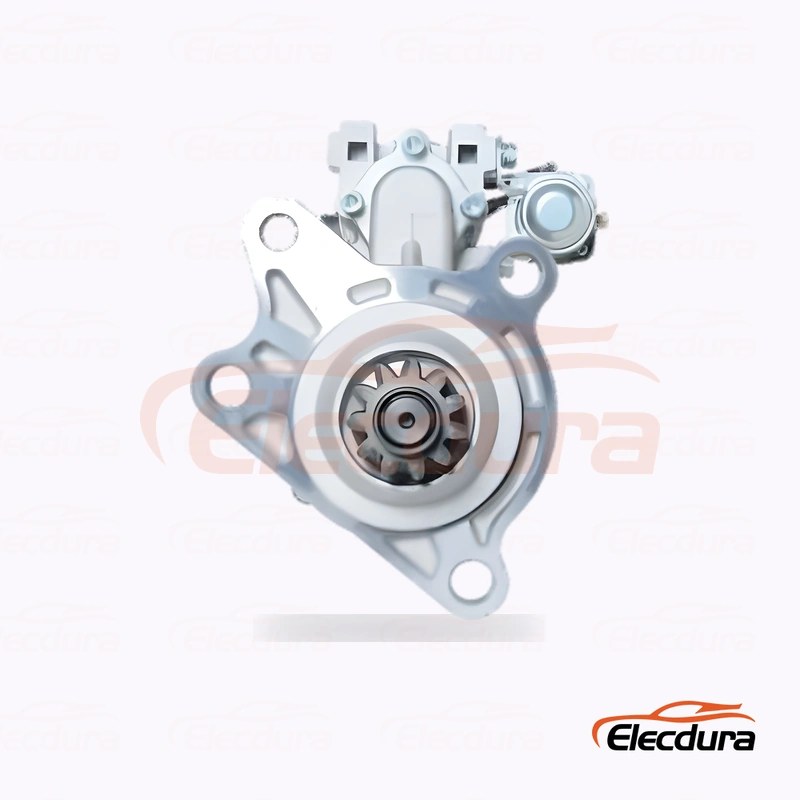

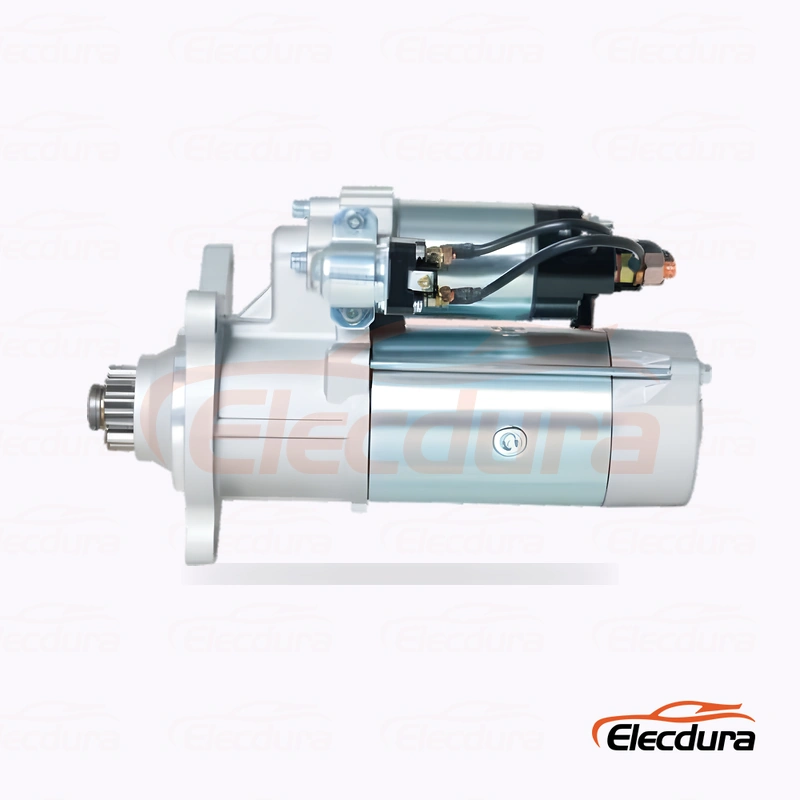

For inventory buyers preparing distributor pricing, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

D11-101-08 Starter Motor Specifications and Technical Drawing

For engine-parts specialists confirming the stated application, the key version difference is the mounting and housing clocking. Compare 74° and 37.5° with the original unit in hand so the pinion alignment and cable access remain correct.

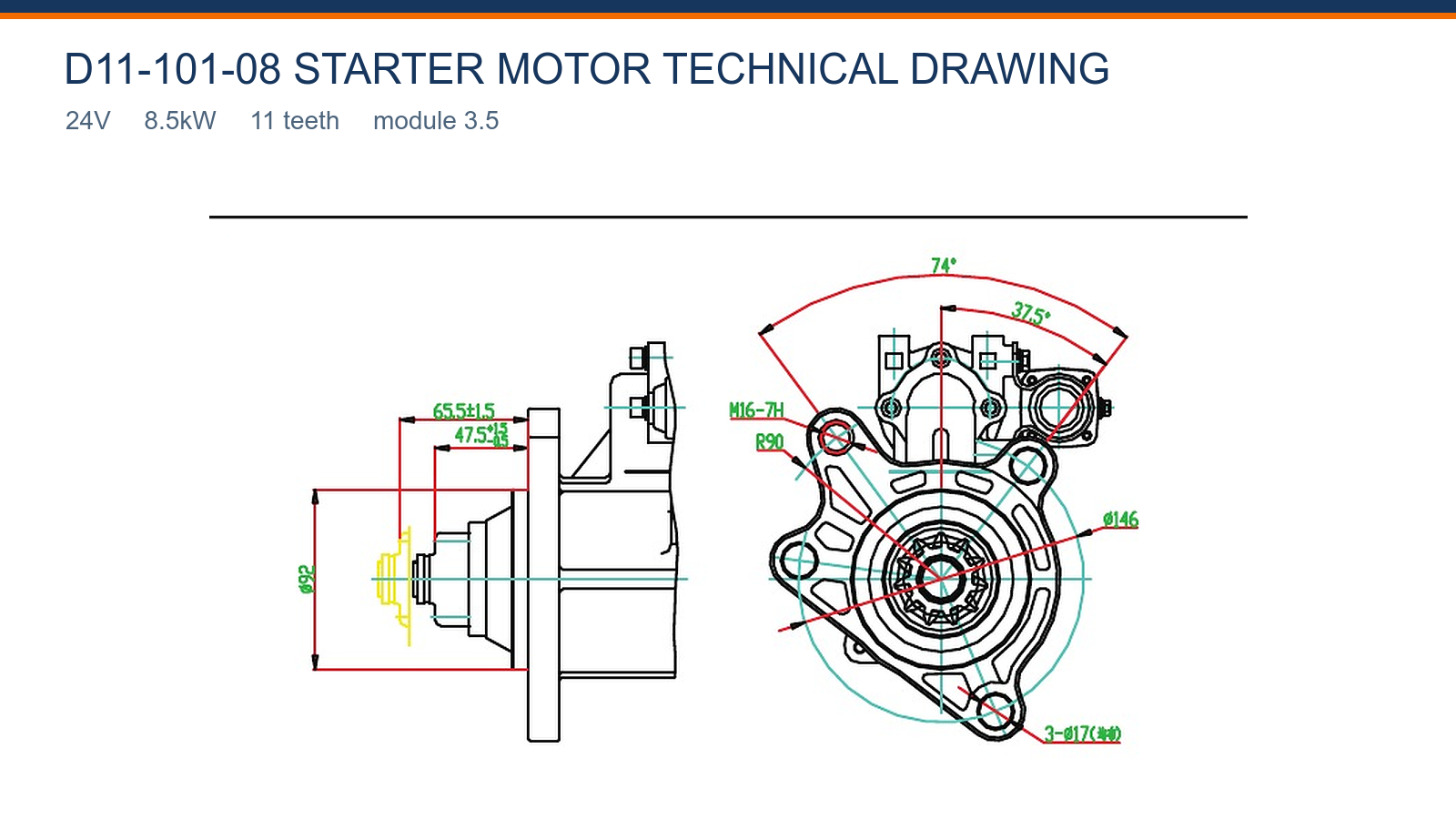

For fleet-parts buyers checking application evidence, the source-faithful technical drawing records the available mounting information for D11-101-08, including Ø146, 74°, 37.5°; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

D11-101-08 Aftermarket Replacement and Application

For maintenance suppliers comparing nearby starter versions, this aftermarket starter motor is organized around D11-101-08 for SHANGHAI D6114. Related numbers remain useful search and purchasing references, but Elecdura treats a changed rating, pinion, flange or terminal layout as a separate version for quotation.

For equipment-parts dealers preparing a technical RFQ, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

D11-101-08 Wholesale Supply for Distributors and Importers

For purchasing teams preparing a volume quote, Elecdura supports repeat-order and new-line sourcing for D11-101-08. Commercial planning can cover a 20 pcs MOQ, 7–15 day lead time subject to confirmation, neutral packaging or private-label review, and an 18-month agreed warranty.

For distributors planning a repeat order, the order specification may include armature, solenoid, no-load or load testing together with label and packaging requirements. This gives receiving teams practical points for sampling a batch without treating appearance alone as proof of fitment.

D11-101-08 Starter Motor Buyer FAQ

How can an importer validate 11-tooth pinion identification for repeatable sourcing?

For replacement-parts sellers preparing a technical RFQ, count all 11 teeth on the D11-101-08 pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

How should a distributor confirm axial reach before a purchase order is released?

For service-parts networks checking version-defining data, the source drawing does not provide a complete axial length for D11-101-08. Ask for measured pinion rest position, flange-to-drive distance and a square side photograph of the old unit. Keep those customer measurements with the 11T drive definition so an unstated length is not borrowed from a neighboring reference.

What must be matched before quoting D11-101-08 carton identification when the unit taken from service is available?

For importers planning a repeat order, ask that unit and carton labels repeat the agreed reference, 24V, 8.5kW and 11T where the packaging format permits. Add the customer's barcode and destination marks before production. Clear identification allows distributors to receive, bin and pick this version without opening packaging or relying on a generic starter description.

Which specification deserves priority for 11T and module 3.5 when several versions look alike?

For product managers reviewing a replacement proposal, the supplied drive uses 11 teeth with module 3.5. Count the old pinion teeth and compare outside diameter, rest position and engagement depth before ordering. The 3.5 module is part of the gear definition, so another pitch must not be combined on the single RFQ position. This check protects the ring gear from an incorrect mesh.

Which detail separates D11-101-08 replenishment during fitment review?

For fleet-parts buyers updating a customer item master, keep D11-101-08, 24V, 8.5kW, 11T, the application description and the agreed packaging on the same replenishment line. Add dated photos when the equipment fleet changes or a different removed unit appears. This gives purchasing and warehouse teams enough detail to avoid silently merging a new version into established stock.

What should purchasing verify first for D11-101-08 label and suffix for a documented fitment decision?

For equipment-parts dealers checking application evidence, photograph the complete old-unit label for D11-101-08, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

What must be matched before quoting SHANGHAI D6114 previously replaced starter during fitment review?

For purchasing teams preparing an OE-based quote, ask whether the starter removed from SHANGHAI D6114 is original or an earlier replacement. If it has been substituted before, the visible unit may not represent the equipment's initial build. Use its label and geometry together with D11-101-08, 24V, 8.5kW and 11T before turning that history into a bulk stocking decision.

Which comparison prevents a mismatch for mounting-hole pattern before stock is assigned?

For distributors separating similar housings, A complete mounting-hole callout is not stated for D11-101-08. Photograph the old flange straight on and provide hole count, bore diameter and center spacing from the same datum. Those measured points let purchasing separate close housings without transferring hole data from another starter or assuming that a similar silhouette will bolt in.

Request a Wholesale Quote for D11-101-08 Heavy-Duty Starter Motor

For aftermarket product managers planning mixed-model inventory, ask for a quote on D11-101-08 with the full SHANGHAI D6114 record, quantity and packaging plan. We will verify the requested 24V, 8.5kW and 11T configuration and return the relevant wholesale terms.
