F042S00077 Cummins 11T Starter Motor for Wholesale Supply

F042S00077 Cummins 11T Starter Motor Sourcing for Split-Pinion Programs

F042S00077 suits Cummins engine-parts distributors that must keep two drive configurations apart while serving the same customer base. This unit uses an 11-tooth, module 3 pinion with a three-hole face; those details should remain in the item description from quotation through replenishment.

Send the complete old label, Cummins engine or machine identity and an end-on pinion photograph. Elecdura compares the drive, mounting face and terminal side, giving the buyer a quotation tied to the required 11T unit rather than a broad reference-family match.

F042S00077 Starter Motor Specifications and B2B Fitment Drawing

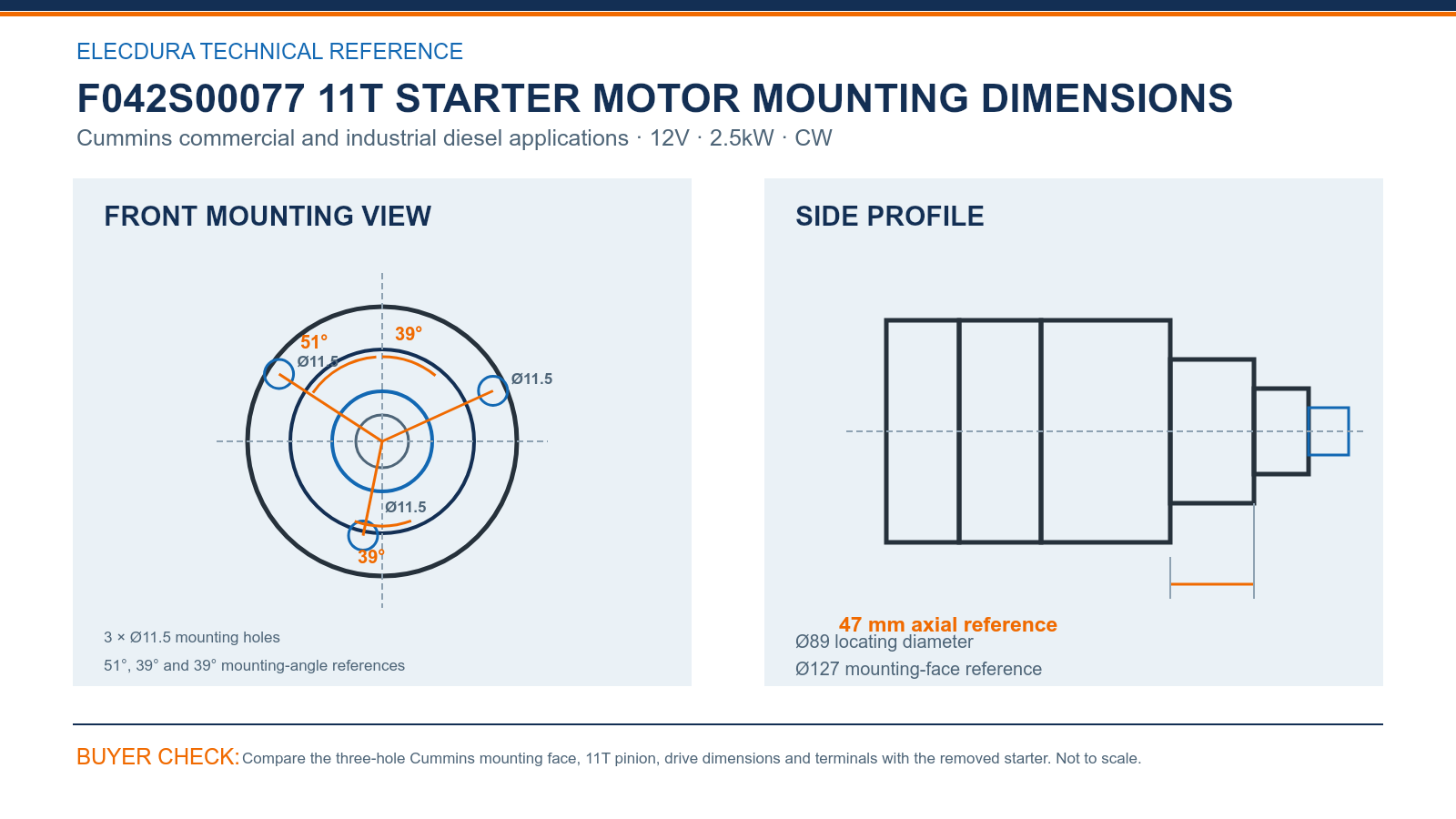

F042S00077 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

The F042S00077 drawing combines three Ø11.5 mounting holes with 51°, 39° and 39° angle references, an Ø89 locator and an Ø127 mounting face. Together with the 47 mm axial reference, these measurements identify the drive end more reliably than a side photograph of the motor housing.

For an 11T Cummins quotation, compare the removed starter squarely against the drawing and record module 3 with the tooth count. This gives purchasing and receiving teams one measurable description for the unit even when invoices use different numbers from the same replacement family.

F042S00077 Starter Motor Cross-Reference Boundaries for 700541113 Buyers

700541113, 700.541.113.050, 114335 and STR6079 are useful purchasing references, but they should not erase the drive information supplied by the workshop. Keep the original number on the RFQ and add the tooth count beside it.

• Use 12V, 2.5kW, 11 teeth, module 3 and CW as the electrical and drive identity.

• Compare the Ø89 locator, Ø127 face and three Ø11.5 holes.

• Place demand for any other pinion on its own quotation line.

This separation protects price comparisons, carton marking and future reorders from mixing two physically different Cummins starters.

F042S00077 Starter Motor Wholesale Supply for Dual-Version Cummins Inventories

Distributors carrying more than one Cummins drive can order them together while keeping quantities, labels and shelf descriptions separate. Elecdura can review neutral cartons or customer labels that retain F042S00077 and the 11T designation, making the correct line visible to branches and service counters.

Share the opening quantity, annual demand, destination and required delivery date. The production video below shows starter assembly and electrical testing; commercial terms can then be prepared around the buyer's actual split between the 11T unit and any separately identified drive.

The video provides a view of Elecdura production and test capability for buyers evaluating a repeat Cummins starter program.

F042S00077 Starter Motor Wholesale FAQ

Why is the 11T drive the first F042S00077 buying check?

F042S00077 can be encountered beside references that also lead buyers toward another pinion configuration. This offer is specifically the 11-tooth, module 3 unit. Count the cleaned pinion from a straight end view and keep that photograph with the Cummins engine or machine identity before comparing price, availability or delivery.

How should 700541113 and 700.541.113.050 appear on an RFQ?

Retain the number exactly as it appears on the old label or customer document, including the punctuation when present. Add F042S00077, the 11T drive and the installed Cummins application on the same line. This preserves the customer's traceable reference while giving Elecdura enough detail to avoid a number-only substitution.

What does module 3 add to the F042S00077 pinion description?

Tooth count alone does not describe the complete gear form. Recording 11 teeth together with module 3 gives the workshop and supplier a clearer drive identity. Compare both points with the removed starter, because a gear carrying the same number of teeth but another module should not be treated as an equivalent Cummins replacement.

Can F042S00077 be identified when the old label is difficult to read?

Yes, but the inquiry should include the Cummins engine or machine plate, a square mounting-face photograph, an end-on pinion image and the terminal side. The 11T module 3 drive, three-hole face and Ø89 locator provide several independent checks. Any remaining digits from the old label should still be photographed rather than rewritten from memory.

Which mounting angles belong to this F042S00077 configuration?

The drawing uses 51°, 39° and 39° references around three Ø11.5 mounting holes, together with an Ø89 locating diameter and Ø127 mounting face. Measure the removed unit on a bench and compare the complete pattern. One angle or diameter by itself is not as dependable as the full face geometry.

Can a buyer combine two Cummins pinion versions in one shipment?

They may share a shipment, but each version should have its own RFQ line, confirmed pinion photograph, quantity and carton description. Keep F042S00077 and 11T on the line for this configuration. Separating the technical identities prevents a consolidated freight plan from turning into mixed warehouse stock or incorrect branch deliveries.

How should cartons distinguish the F042S00077 11T unit?

Use the full F042S00077 reference, 12V rating, 11T and a traceable shipment lot on the technical label. If the importer carries another drive from the same wider family, add a clear shelf or barcode description that includes the tooth count. This makes receiving and later replenishment less dependent on opening every carton.

What will Elecdura return for a complete F042S00077 inquiry?

After receiving the full reference, Cummins application, old-unit photographs, quantity, destination and packaging preference, Elecdura can return a quotation for the 12V 2.5kW 11T CW configuration. The reply can cover fitment comparison points, carton marking, price, lead time and shipment terms for the identified demand.

Request a F042S00077 Starter Motor Wholesale Quote

Request a quotation with F042S00077 or the complete related number, Cummins engine or machine details, an end-on 11T pinion image, mounting and terminal photographs, quantity and destination. Elecdura will respond for the 12V 2.5kW CW unit and identify the comparison points that must remain on the order.

When the same customer also needs another drive, show that pinion on a separate RFQ line. Both lines may share shipment planning without sharing a technical description.
