S0197 Scania DSC14 DC11 Starter Motor Wholesale

S0197 Starter Motor Distributor Application Guide for Scania DSC14.15 and 114G DC11.01

For a fleet parts team, S0197 identifies one Scania DSC14.15 and 114G DC11.01 requirement. The 24V 4.0kW 9T module-3 configuration for Scania commercial engines provides a clear fitment boundary for sample, stock and replacement reviews.

Before comparing S0197 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S0197 Starter Motor Technical Data for Fleet Parts Buyers

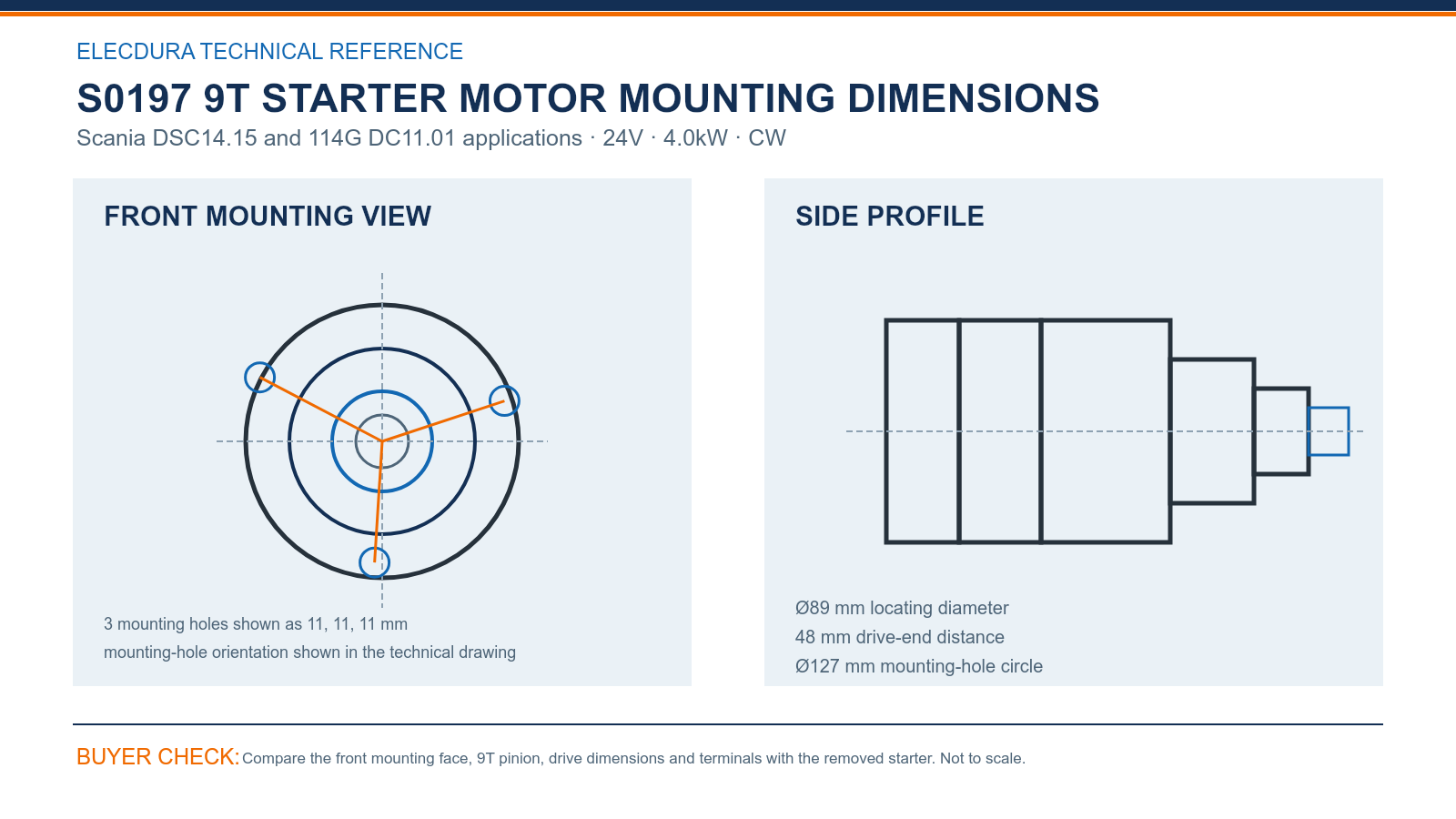

For S0197 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

Complete the S0197 comparison with 24V, 4.0kW, the 9T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S0197 Starter Motor OE Number Guide for Aftermarket Supply

• Use the full number: Start with S0197, 110527, 114339, 0001360009, 0001360010, 0001360017, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0197 Starter Motor Distributor Stock and Delivery Support

Elecdura can prepare S0197 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Stock planning should reflect the supported Scania DSC14.15 and 114G DC11.01 population, recent consumption and transfer time between service locations. Keeping S0197, the 9T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A S0197 order should still be released against the complete OE number, Scania DSC14.15 and 114G DC11.01 details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

S0197 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S0197 during a Scania DSC14 DC11 branch receiving check?

For S0197, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Can a purchasing team consolidate every S0197 reference into one stock line in a Scania DSC14 DC11 branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S0197, 110527, 114339, 0001360009, 0001360010 to locate possible matches, then confirm 24V, 4.0kW, 9T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can an importer avoid mixing S0197 with a similar drive-end version during branch sourcing?

For S0197 in Scania DSC14.15 and 114G DC11.01, confirm the machine or engine identity and read the full old-unit label. Check 9T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

Before removing S0197, what should the workshop test under load during a Scania DSC14 DC11 branch electrical check?

Before fitting S0197, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for S0197 during a Scania DSC14 DC11 branch inspection?

For S0197, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 48 mm drive-end distance in the side view. Add 9T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How should Scania distributors plan stock for S0197 in a Scania DSC14 DC11 branch program?

Retain the engine-specific approval because Scania housings can share a similar silhouette. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S0197 in a Scania DSC14 DC11 branch sourcing program?

A useful RFQ states S0197, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S0197 in a Scania DSC14 DC11 branch review?

For a service review of S0197, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0197 Email for Starter Motor B2B Pricing

A complete RFQ for S0197 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 4.0kW 9T CW starter, MOQ, packaging, warranty and shipping choices.
