YC3Z-11002-AA International 7.3L Starter Motor Wholesale

YC3Z-11002-AA Starter Motor B2B Fitment Guide for International-Navistar 7.3L truck

International truck-parts distributors, Ford diesel specialists and fleet workshops can use YC3Z-11002-AA as the commercial identity for the starter required in International-Navistar 7.3L truck. The order should preserve the 10T pinion and the 50 mm drive position for the International 7.3L three-hole version, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full YC3Z-11002-AA application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

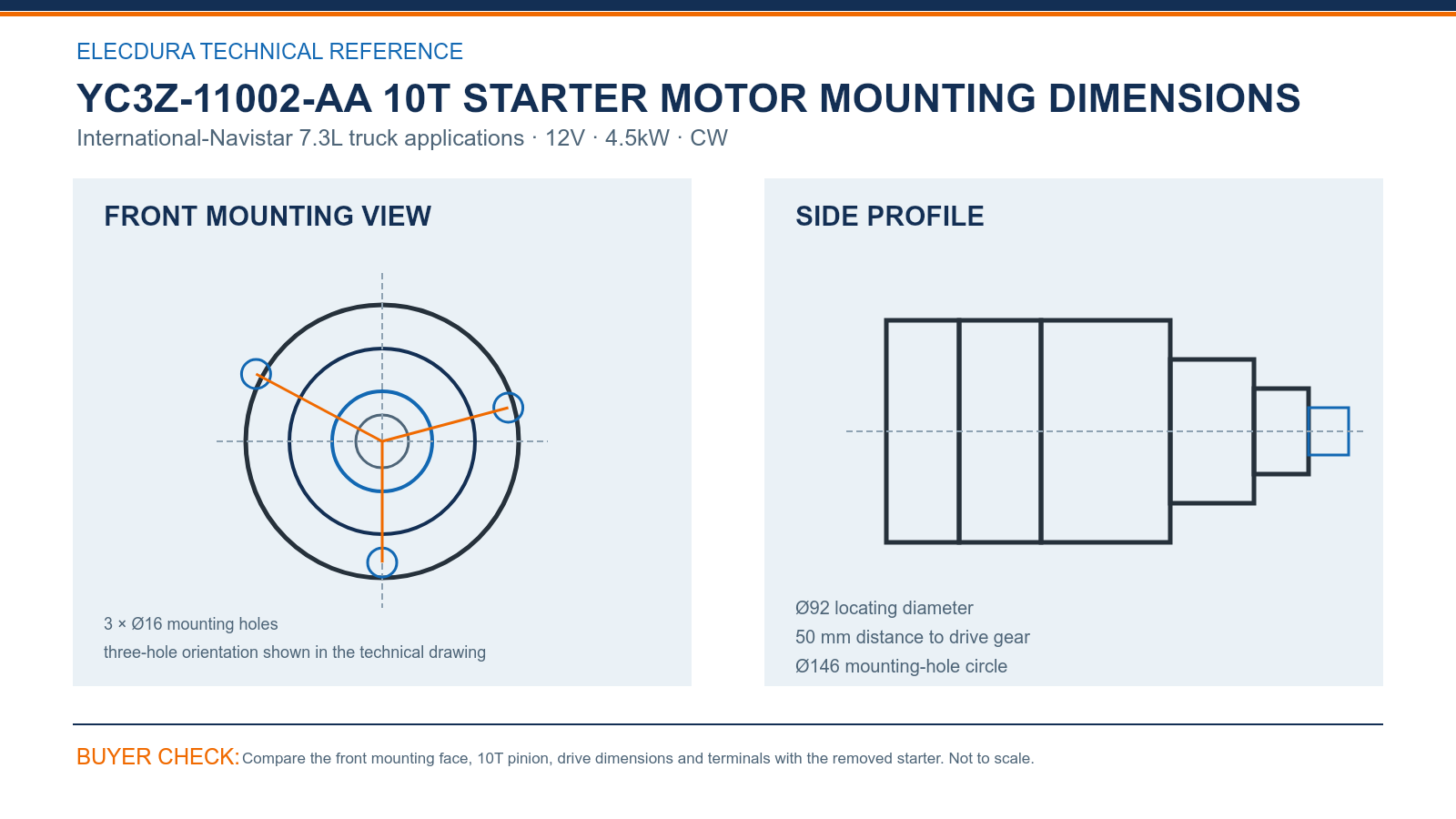

YC3Z-11002-AA Starter Motor Drive-End Drawing for Aftermarket Distributors

YC3Z-11002-AA International 7.3L 12V 4.5kW 10T starter dimensions.

For YC3Z-11002-AA first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø16 mounting holes, Ø92 locating diameter, Ø146 mounting-hole circle and 50 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the YC3Z-11002-AA mounting check, verify 12V, 4.5kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

YC3Z-11002-AA Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: YC3Z-11002-AA, YC3Z-11002-AARM, 10461170, 10478890, 10479214, 6297N can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 4.5kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

YC3Z-11002-AA Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of YC3Z-11002-AA, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted YC3Z-11002-AA sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved YC3Z-11002-AA configuration remains defined by 12V, 4.5kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

YC3Z-11002-AA Starter Motor Questions from Commercial Buyers

How can a buyer quarantine a mismatched YC3Z-11002-AA unit quickly during an International 7.3L dealer receiving check?

For YC3Z-11002-AA, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø16 mounting holes, Ø92 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which cranking-circuit tests should precede replacement of YC3Z-11002-AA in an International 7.3L dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing YC3Z-11002-AA. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How should a fleet workshop verify YC3Z-11002-AA against the removed starter during dealer sourcing?

For YC3Z-11002-AA, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 10T, Ø146 mounting-hole circle, Ø92 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Why is the YC3Z-11002-AA reference match only the start of product selection in an International 7.3L dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The YC3Z-11002-AA group is acceptable only when 12V, 4.5kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

How does the YC3Z-11002-AA mounting drawing support product approval during an International 7.3L dealer inspection?

For YC3Z-11002-AA, use a straight front view to compare the 3 × Ø16 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 50 mm distance to drive gear. Complete the check with 10T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of YC3Z-11002-AA stock in an International 7.3L dealer program?

Carry the complete YC3Z suffix, vehicle year and accepted terminal view into branch labels and repeat quotations. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which order conditions should be stated when asking about YC3Z-11002-AA in an International 7.3L dealer sourcing program?

A useful RFQ states YC3Z-11002-AA, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned YC3Z-11002-AA starter in an International 7.3L dealer review?

For a service review of YC3Z-11002-AA, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

YC3Z-11002-AA Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with YC3Z-11002-AA, the supported International-Navistar 7.3L truck record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 4.5kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
