S1180S Cummins CAT C7 C9 Starter Motor Distributor

S1180S Starter Motor Distributor Application Guide for Cummins ISC/ISL/QSC/QSL and Caterpillar C7/C9

For a fleet parts team, S1180S identifies one Cummins ISC/ISL/QSC/QSL and Caterpillar C7/C9 requirement. The Ø145 mounting circle that must not be rounded to the more common Ø146 family provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S1180S with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S1180S Starter Motor Mounting Dimensions for Distributor Approval

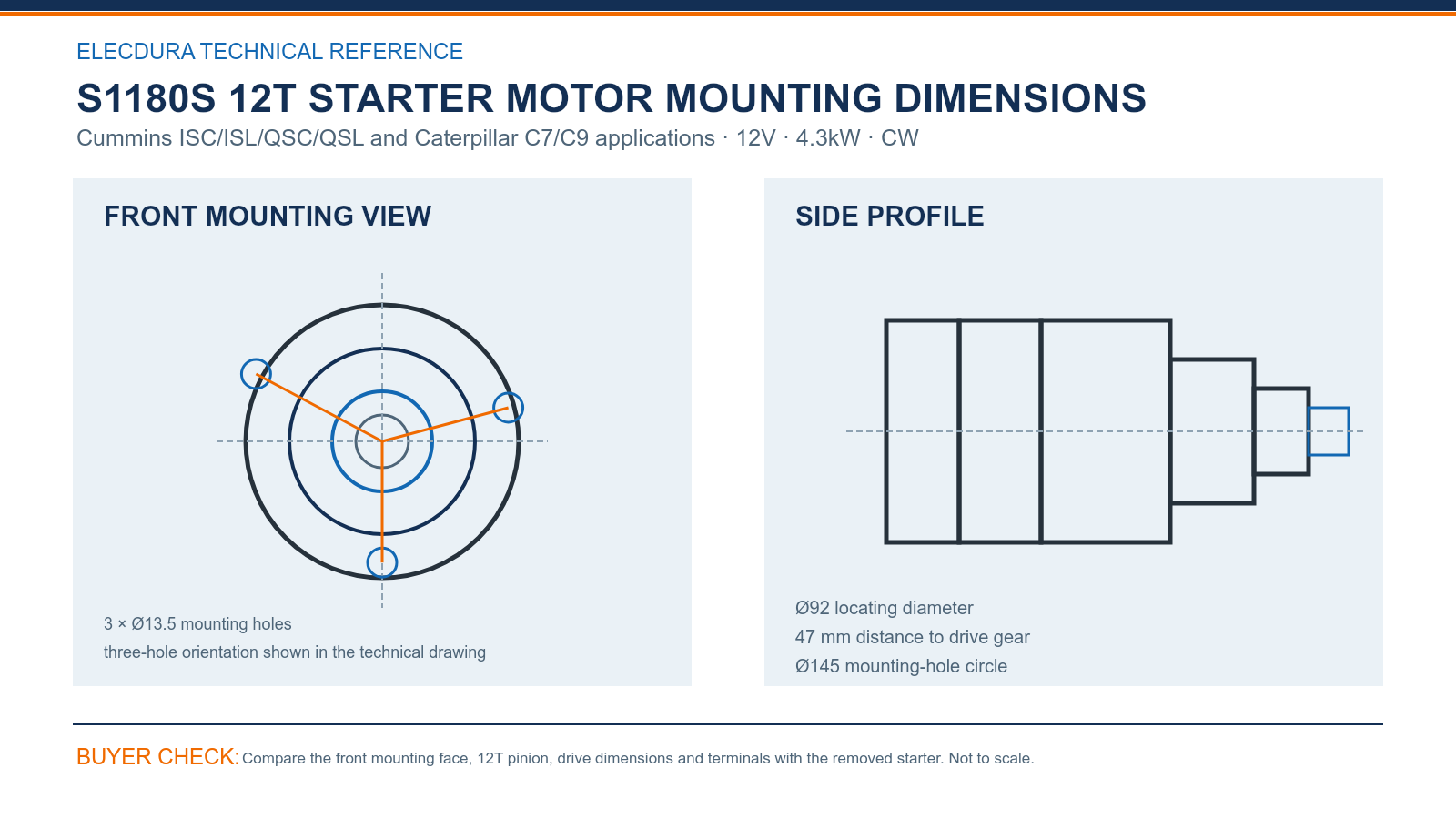

S1180S Cummins Caterpillar C7 C9 12V 4.3kW 12T starter dimensions.

Use the S1180S technical drawing to check Ø92 locating diameter, 47 mm distance to drive gear and Ø145 mounting-hole circle. Add the 3 × Ø13.5 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S1180S comparison with 12V, 4.3kW, the 12T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S1180S Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S1180S, 5267908, 5363432, 8200374, 8200836, 8200958, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1180S Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S1180S, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Keep engine family, old-unit number and the uncommon Ø145 circle together when comparing an otherwise familiar 12-tooth unit. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S1180S; the product decision itself still depends on the complete reference, 12V 4.3kW rating, drive end, mounting face and terminal layout.

S1180S Starter Motor Questions from Commercial Buyers

How can a buyer quarantine a mismatched S1180S unit quickly during a Cummins CAT C7 C9 branch receiving check?

For S1180S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø13.5 mounting holes, Ø92 locating diameter and the specified 12T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Do all references listed with S1180S identify an interchangeable unit in a Cummins CAT C7 C9 branch sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1180S, 5267908, 5363432, 8200374, 8200836 to locate possible matches, then confirm 12V, 4.3kW, 12T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How should a fleet workshop verify S1180S against the removed starter during branch sourcing?

For S1180S, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 12T, Ø145 mounting-hole circle, Ø92 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Which electrical conditions can imitate a failed S1180S starter motor in a Cummins CAT C7 C9 branch workshop?

Before fitting S1180S, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the S1180S mounting drawing support product approval during a Cummins CAT C7 C9 branch inspection?

For S1180S, use a straight front view to compare the 3 × Ø13.5 mounting holes and Ø145 mounting-hole circle; use the side view for Ø92 locating diameter and 47 mm distance to drive gear. Complete the check with 12T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of S1180S stock in a Cummins CAT C7 C9 branch program?

Segment orders by Cummins, Caterpillar and International service demand and retain the approved drawing with each customer SKU. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which order conditions should be stated when asking about S1180S in a Cummins CAT C7 C9 branch sourcing program?

A useful RFQ states S1180S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S1180S starter in a Cummins CAT C7 C9 branch review?

For a service review of S1180S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S1180S Send a Starter Motor Distributor Enquiry

For a focused S1180S quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
