25/220994 60092 12V Hydraulic Solenoid Valve for JCB 3CX 4CX 5CX

25/220994 JCB Two-position three-way hydraulic solenoid valve Supplier for B2B Replacement

25/220994 and 60092 identify a 12V hydraulic solenoid valve used in JCB backhoe loader service. External parts references support 3CX, 4CX and 5CX applications, while the catalog provides the cartridge dimensions, temperature range, filtration requirement and A, B, C circuit symbol.

25/220994 Two-position three-way hydraulic solenoid valve Specifications for Wholesale Buyers

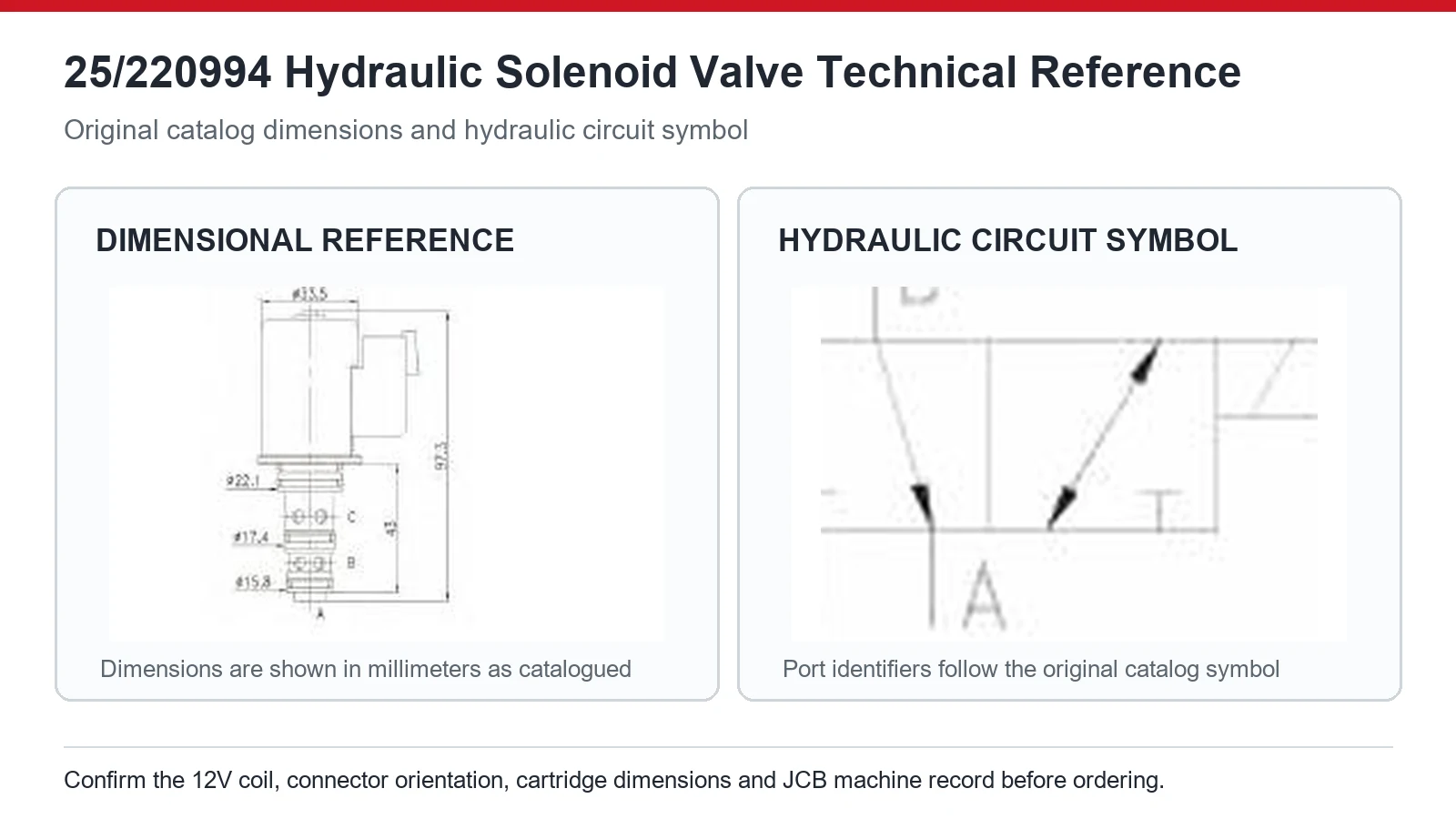

25/220994 Hydraulic Solenoid Valve Dimensions and Circuit

Read the 25/220994 technical image for dimensional comparison and three-way circuit orientation before assigning the valve to a 3CX, 4CX or 5CX application.

25/220994 Replacement Matching Guide for Equipment Parts Buyers

Approve 25/220994 and 60092 from the JCB serial range, 12V connector, cartridge geometry and the valve's two-position three-way function.

25/220994 Service Diagnostics Before Solenoid or Relay Replacement

For slow JCB hydraulic movement, check loaded coil voltage, connector resistance, spool freedom, oil condition and valve-block response in a controlled sequence.

B2B Order Approval Checklist for 25/220994

25/220994 60092 JCB Hydraulic Solenoid Valve FAQ

How should references 25/220994 and 60092 be handled on a purchase order?

Keep both references visible when they appear in the verified JCB parts record, but approve the order from the number and configuration on the removed valve. Add the loader model, serial number, 12V coil marking and connector photographs. Treat the reference pair as a matching aid rather than assuming unrestricted interchange across every 3CX, 4CX or 5CX production range.

Which electrical checks confirm the 12V coil version before installation?

Read the coil label and measure supply at the connector while the valve command is active. Inspect pin condition, ground voltage drop and connector keying, then compare coil resistance with the approved sample. A 12V system reading without load can hide excessive wiring resistance, so record voltage during operation rather than only at the battery.

How should the two-position three-way function be compared on a JCB valve?

Identify the spring-held condition and the flow path after energizing, then map those states to the machine schematic. Verify pressure, return and work connections at the valve block. A physically compatible solenoid valve can still produce reversed or blocked movement when its internal circuit differs from the removed 25/220994 assembly.

Why does the JCB serial range matter for 3CX 4CX and 5CX orders?

JCB machines within the same model family can receive different valve blocks, connectors or electrical versions during production. Record the full machine serial number and compare the removed valve before approving 25/220994 or 60092. Serial control helps prevent warehouse stock from being treated as universal merely because the machine name matches.

What causes slow or incomplete movement after a replacement valve is fitted?

Check command voltage under load, connector resistance, oil cleanliness, filter condition and free spool movement. Contamination or unsuitable oil viscosity can delay switching even when the coil energizes. Inspect seals and the valve cavity for damage, and confirm that the hydraulic circuit matches the old unit before replacing another electrical component.

Which controls should be used for incoming 25/220994 valve lots?

Verify the reference pair, 12V marking, connector, body dimensions, seal locations and valve function against the approved sample. Protect sealing surfaces during packing and sample coil resistance by lot. Where a test fixture is available, confirm normal and energized flow states. Retain inspection results with the intended JCB serial group for traceability.

Request a Bulk Quote for 25/220994 Two-position three-way hydraulic solenoid valve

Send both references, JCB model and serial number, 12V marking, connector and cartridge views, dimensions, quantity and packing requirements.
