T3922S
T3922S / 25/222913
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
T3922S / 25/222913
JCB hydraulic service using T3922S or 25/222913 with confirmed electrical version
Confirm 12v or 24v, connector, flange mounted cartridge assembly, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|

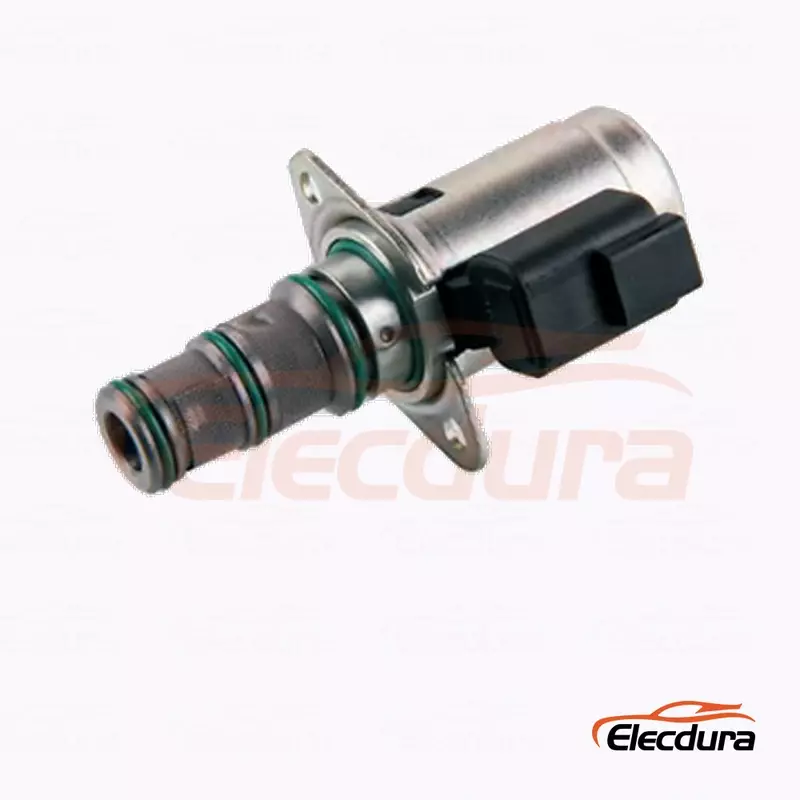

T3922S is a 12V or 24V two position three way hydraulic solenoid valve for JCB hydraulic service using T3922S or 25/222913 with confirmed electrical version. Buyers should confirm the complete old marking, electrical version, connector, flange mounted cartridge assembly and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | Two Position Three Way Hydraulic Solenoid Valve |
Primary Reference | T3922S |
Cross References | T3922S / 25/222913 |
Electrical Version | 12V or 24V |
Working Pressure Reference | 350 bar |
Interface | Flange mounted cartridge assembly |
Application Scope | JCB hydraulic service using T3922S or 25/222913 with confirmed electrical version |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

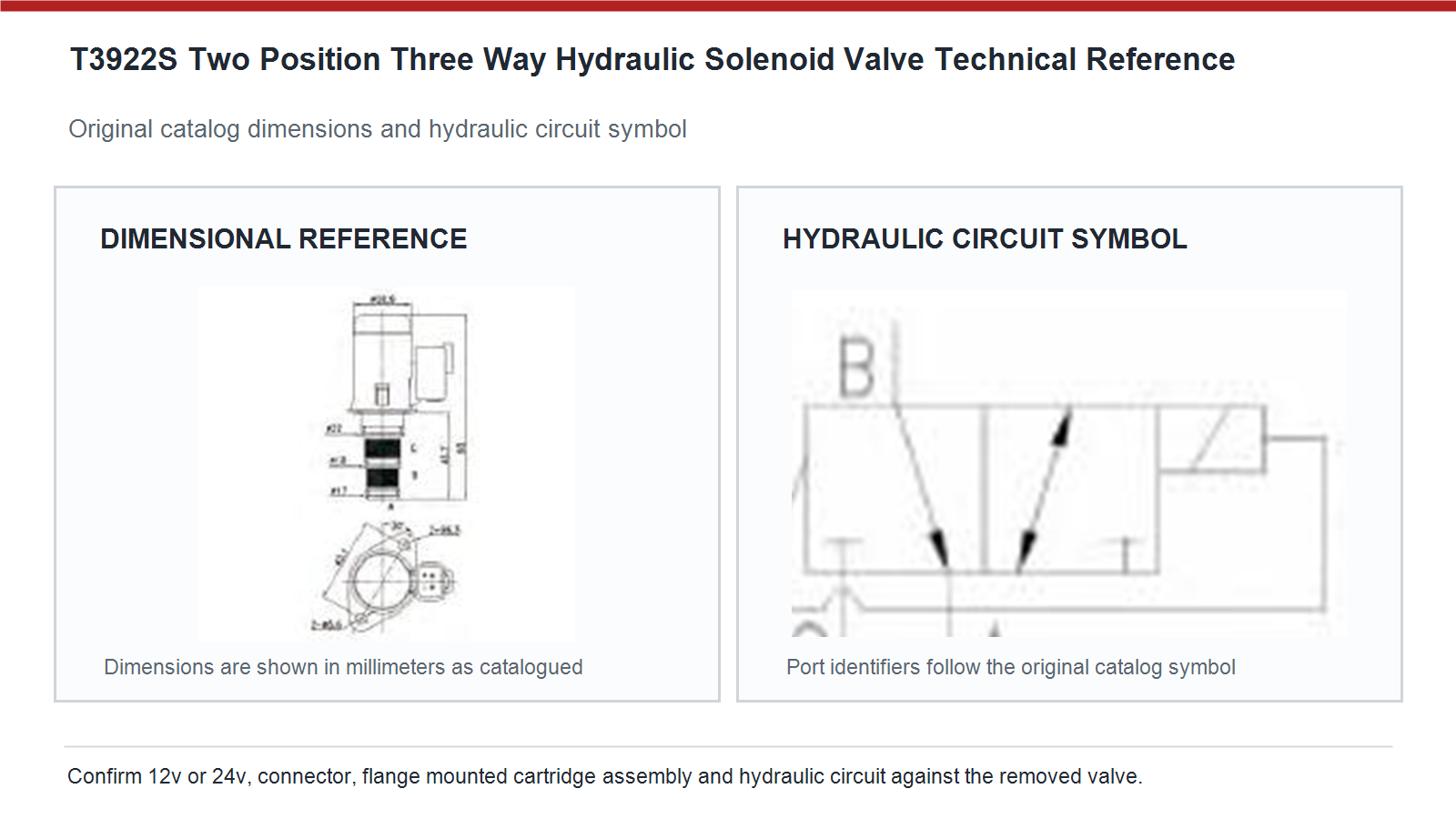

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | T3922S / 25/222913 |
Electrical | 12V or 24V; verify at the loaded connector during the actual command |
Mechanical | Compare flange mounted cartridge assembly, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | JCB hydraulic service using T3922S or 25/222913 with confirmed electrical version |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a bulk order moves from sample to production, keep the verified reference, measurements and test result in the service record. Approve T3922S from the complete old valve marking, 12v or 24v electrical version, connector keying, flange mounted cartridge assembly, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During a connector harness revision is compared, keep the verified reference, measurements and test result in the service record. Read the coil label first and measure voltage at the connector while the real machine command is active. The working reference for this page is 12V or 24V. Do not infer voltage only from battery count because converters, harness changes and mixed voltage fleets can create misleading assumptions. Record the verified value on the purchase order and incoming inspection label.
During a manifold bore shows possible wear, keep the verified reference, measurements and test result in the service record. Two valves can share a coil diameter and connector yet use different cartridge lengths, metering notches, spring forces or port logic. In JCB service, compare the full reference, manifold bore, installed depth, connector direction and hydraulic symbol. A valve that screws in but routes pressure differently can create weak response, reversed motion or continuous pump loading.
During cold start commissioning is completed, keep the verified reference, measurements and test result in the service record. Provide the complete old label, machine model and serial number, confirmed voltage, connector face photo, cartridge or flange measurements, hydraulic function, required quantity and destination. For mixed fleets, separate each electrical and suffix version on the inquiry. This evidence allows a sample approval plan and prevents similar looking two position three way hydraulic solenoid valve variants from being combined in one bulk order.
During a workshop compares two connector orientations, keep the verified reference, measurements and test result in the service record. Verify commanded voltage under load, coil duty cycle, connector resistance and whether the hydraulic element reaches its intended position. Low voltage can prevent full magnetic pull, while excessive voltage or continuous energization can overheat the winding. Contamination that restricts cartridge movement can also increase operating stress, so correct the electrical or hydraulic root cause before fitting another coil.
During a controller output fault is suspected, keep the verified reference, measurements and test result in the service record. Fine debris can restrict the moving element, damage sealing lands or block a pilot passage even when the coil energizes normally. Review the equipment filtration requirement, inspect the removed valve for particles and flush the affected circuit when contamination is found. Replacing T3922S without correcting dirty oil can reproduce slow response, sticking or repeated coil stress soon after installation.
During a customer reports reversed machine response, keep the verified reference, measurements and test result in the service record. Measure voltage across the coil while the controller commands the valve, then measure the positive and ground side drops separately. A static open circuit reading can look normal while a corroded terminal collapses under load. Compare the result with the confirmed 12v or 24v requirement and repair excessive resistance before judging the two position three way hydraulic solenoid valve itself as defective.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
