LRS484 Ford New Holland 8040 Starter Motor Distributor Supply

LRS484 New Holland Starter Motor Support for Tractor Parts Dealers

Tractor owners may describe the application as Ford 150 or New Holland 8040, while the starter label carries an older Lucas or Bosch number. A useful quotation connects that machine record to the LRS484 family, 10-tooth drive and three-hole mounting face instead of selecting a starter from brand and voltage alone.

• Send the tractor model, serial and engine information.

• Photograph the complete old label and all three mounting holes.

• Show pinion, terminal layout and surrounding installation clearance.

Elecdura returns one physical configuration and comparison points that the dealer can use for the first repair and later seasonal stock.

LRS484 Starter Motor Specifications and B2B Fitment Drawing

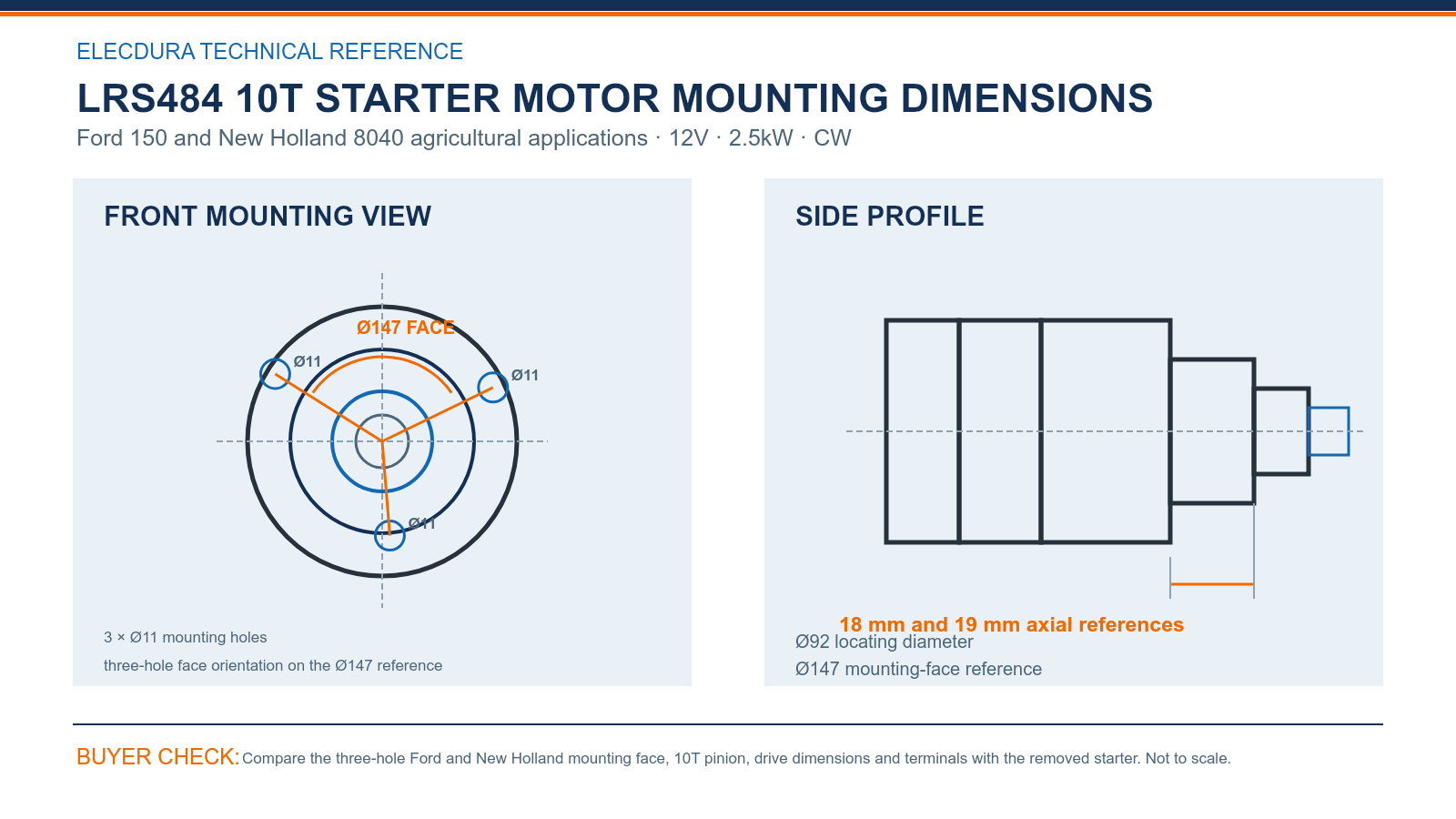

LRS484 10T starter motor mounting and drive-end dimensions for buyer-side comparison.

Ford and New Holland tractor dealers should verify 3 × Ø11 mounting holes, Ø92 locating diameter, Ø147 mounting-face reference and 18 mm and 19 mm axial references before seasonal stock is released. The three-hole agricultural nose and 10-tooth drive provide clearer identification than a Lucas or Bosch number by itself.

Record a straight mounting image, terminal positions and the tractor serial with the LRS484 inquiry. Measuring the removed starter creates a dependable comparison for incoming cartons and helps branches keep similar Lucas-style units out of the 8040 service line.

LRS484 Starter Motor Lucas and Bosch Reference Checks for Buyers

Lucas records can show 26305, 26305F, 26329, 26430A, 26430B, 27507, 27553 or 27553B, while Bosch references include 0001359081, 0001367056 and 0986013190. Keep the exact old-unit number and tractor identity in the inquiry because a long cross-reference list does not guarantee identical terminals or drive depth.

Confirm the required 12V, 2.5kW, 10 teeth, module 3.175 and clockwise rotation. Then compare the three Ø11 holes, Ø92 locator, Ø147 face and 18 mm/19 mm axial references before the order is distributed to dealers.

LRS484 Starter Motor Seasonal Supply for Agricultural Distributors

Agricultural demand often rises before planting or harvest, so the first confirmed installation should become a practical stock reference. Save the tractor serial, old and new labels, mounting photograph and cable orientation with the branch item before increasing quantities.

• Set the initial quantity from active tractor records.

• Inspect the three-hole nose and pinion when stock arrives.

• Schedule replenishment before the next service peak.

Elecdura can quote neutral cartons or review distributor labels when forecast volume, destinations and delivery windows are supplied.

The video presents Elecdura starter-motor assembly and electrical testing. Send the Ford or New Holland tractor identity, complete Lucas or Bosch number, old-unit photographs, quantity and seasonal delivery requirement so the offer can address the correct three-hole 10T unit.

LRS484 Starter Motor Wholesale FAQ

Which tractor information should be sent for an LRS484 inquiry?

Provide the Ford or New Holland model, tractor serial, engine details and the complete number on the removed starter. Add straight photographs of the label, three-hole mounting face, ten-tooth pinion and terminals. If the tractor has been repaired previously, include any conversion or rebuild information so Elecdura can match the current installation rather than the badge alone.

How should Lucas numbers 26305 and 27553 be used?

They are useful leads within the LRS484 purchasing family, along with 26329, 26430A, 26430B and 27507. Preserve the complete number and suffix shown by the customer, then confirm the electrical rating, pinion and mounting face. The cross-reference family helps locate the product, but it cannot replace the tractor serial and physical comparison.

Can Bosch 0001359081 support an LRS484 quotation?

0001359081, 0001367056 and 0986013190 can connect Bosch purchasing records to this catalog family. Include both the Bosch and Lucas numbers when available. Before quotation, verify 12V, 2.5kW, 10 teeth, module 3.175, clockwise rotation, the three-hole nose and terminal positions so a related reference does not hide an installation difference.

What dimensions identify the Ford New Holland mounting face?

Compare three Ø11 mounting holes, the Ø92 locating diameter, Ø147 face reference and the 18 mm and 19 mm axial points. Measure the removed starter directly and photograph the drive end squarely. These dimensions, combined with the ten-tooth pinion, help a dealer distinguish the intended agricultural starter from another Lucas-style unit with a similar motor body.

Why should seasonal demand be separated by tractor model?

A distributor may serve several Ford and New Holland generations before the same service season. Keeping quantities tied to model, serial range and installed reference reduces mistaken stock transfers and improves the next forecast. A broad brand-level quantity can hide different noses or cable arrangements, even when the starters appear similar on a warehouse shelf.

What should be recorded during the first tractor installation?

Confirm face seating, bolt alignment, cable reach and clean pinion engagement, then record cranking voltage and release behavior. Save the tractor serial, installation photographs and shipment lot. That record gives parts counters a practical reference for repeat sales and helps technicians diagnose batteries, grounds, worn cables or ring-gear problems separately from starter fitment.

How should LRS484 stock be inspected before the service season?

Open cartons from different pallet positions and compare complete labels, ten-tooth drives, three-hole castings, terminal protection and packaging condition with the retained tractor record. Count stock by confirmed reference rather than general appearance. Hold any unit with another nose, voltage or pinion before it is issued during a time-sensitive field repair.

What commercial details help plan an agricultural wholesale order?

Send the confirmed reference, tractor groups, quantity by location, destination, required date and packaging preference. Attach old-unit photographs with the first request. Elecdura can then quote the defined 12V 2.5kW 10T starter, propose neutral or customer-labeled cartons and align delivery with the buyer's seasonal service window.

Request a LRS484 Starter Motor Wholesale Quote

Send LRS484 or the complete related Lucas or Bosch number, Ford or New Holland model and serial, old-unit face, pinion and terminal photographs, required quantity and destination. Elecdura will quote the 12V 2.5kW 10T CW starter with fitment checkpoints and distributor delivery terms.

If the stock will serve several dealerships, list the tractor groups and seasonal demand by location. This lets the commercial response combine logistics while keeping application and reference identity clear.
