S4011 Massey Ferguson MF3085 Starter Motor Wholesale

S4011 Starter Motor B2B Fitment Guide for Massey Ferguson MF3085 and Perkins Q1006-6T

Massey Ferguson dealers, Perkins engine specialists and agricultural starter importers can source S4011 for Massey Ferguson MF3085 and Perkins Q1006-6T. Preserve the 10T pinion and 12V 2.4kW 10T module-3.175 configuration with the cataloged 30 mm drive-end position; do not substitute by engine family or housing appearance alone.

Send the full S4011 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

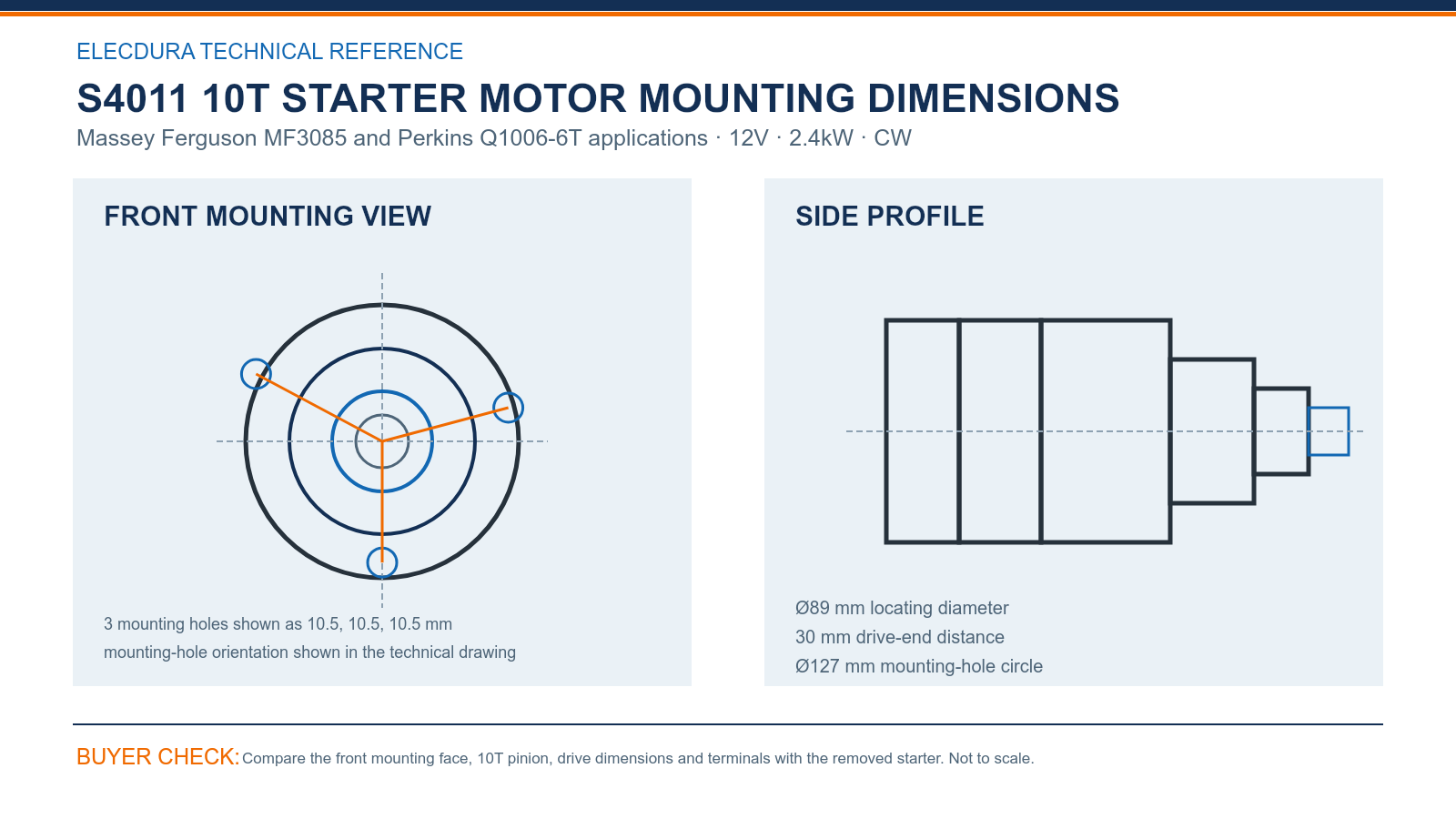

S4011 Starter Motor Drive-End Drawing for Aftermarket Distributors

For S4011 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 30 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S4011 mounting check, verify 12V, 2.4kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S4011 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S4011, 110443, 63227486, STB0693UL, STL0693CL, 26148, 26196 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 12V, 2.4kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

S4011 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S4011, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S4011 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved S4011 configuration remains defined by 12V, 2.4kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

S4011 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S4011 during a Massey Ferguson MF3085 dealer receiving check?

For S4011, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 10.5, 10.5, 10.5 mm, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What workshop readings are useful when diagnosing a starting complaint involving S4011 in a Massey Ferguson MF3085 dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S4011. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How can an importer avoid mixing S4011 with a similar drive-end version during dealer sourcing?

For S4011, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 10T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

When does a cross-reference related to S4011 need a separate quotation in a Massey Ferguson MF3085 dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S4011 group is acceptable only when 12V, 2.4kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

What physical controls belong on a first-lot check for S4011 during a Massey Ferguson MF3085 dealer inspection?

For S4011, compare 3 mounting holes shown as 10.5, 10.5, 10.5 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 30 mm drive-end distance in the side view. Add 10T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How should Massey Ferguson distributors plan stock for S4011 in a Massey Ferguson MF3085 dealer program?

Retain tractor, engine and terminal details for repeat agricultural-parts orders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S4011 in a Massey Ferguson MF3085 dealer sourcing program?

A useful RFQ states S4011, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S4011 in a Massey Ferguson MF3085 dealer review?

For a service review of S4011, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S4011 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with S4011, the supported Massey Ferguson MF3085 and Perkins Q1006-6T record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 2.4kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
