10611101200014 Changfa Starter Motor 12V 3.8kW 10T

10611101200014 Agricultural Machinery Starter Motor for CHANGFA ZS1110G, ZS1115, CFZS1130, CF36

For inventory buyers setting packaging requirements, built for CHANGFA ZS1110G, ZS1115, CFZS1130, CF36, this agricultural machinery starter motor combines 12V operation, 3.8kW rated power and a 10T drive. Elecdura supplies 10611101200014 for tractor, farm-equipment and industrial-engine replacement programs, including distributor stock and planned replenishment.

For fleet-parts buyers planning replenishment, this page is designed to support a distributor decision: identify the correct replacement, confirm the key specification, define packaging and inspection needs, and request one consistent quotation for the required quantity.

10611101200014 Starter Motor Specifications and Technical Drawing

For fleet-parts buyers reviewing a replacement proposal, this starter should be identified by the complete mounting set, including 2×Ø13, Ø120, 62.5 mm, 38±1 mm and 22±1 mm. A single matching dimension does not establish a direct replacement.

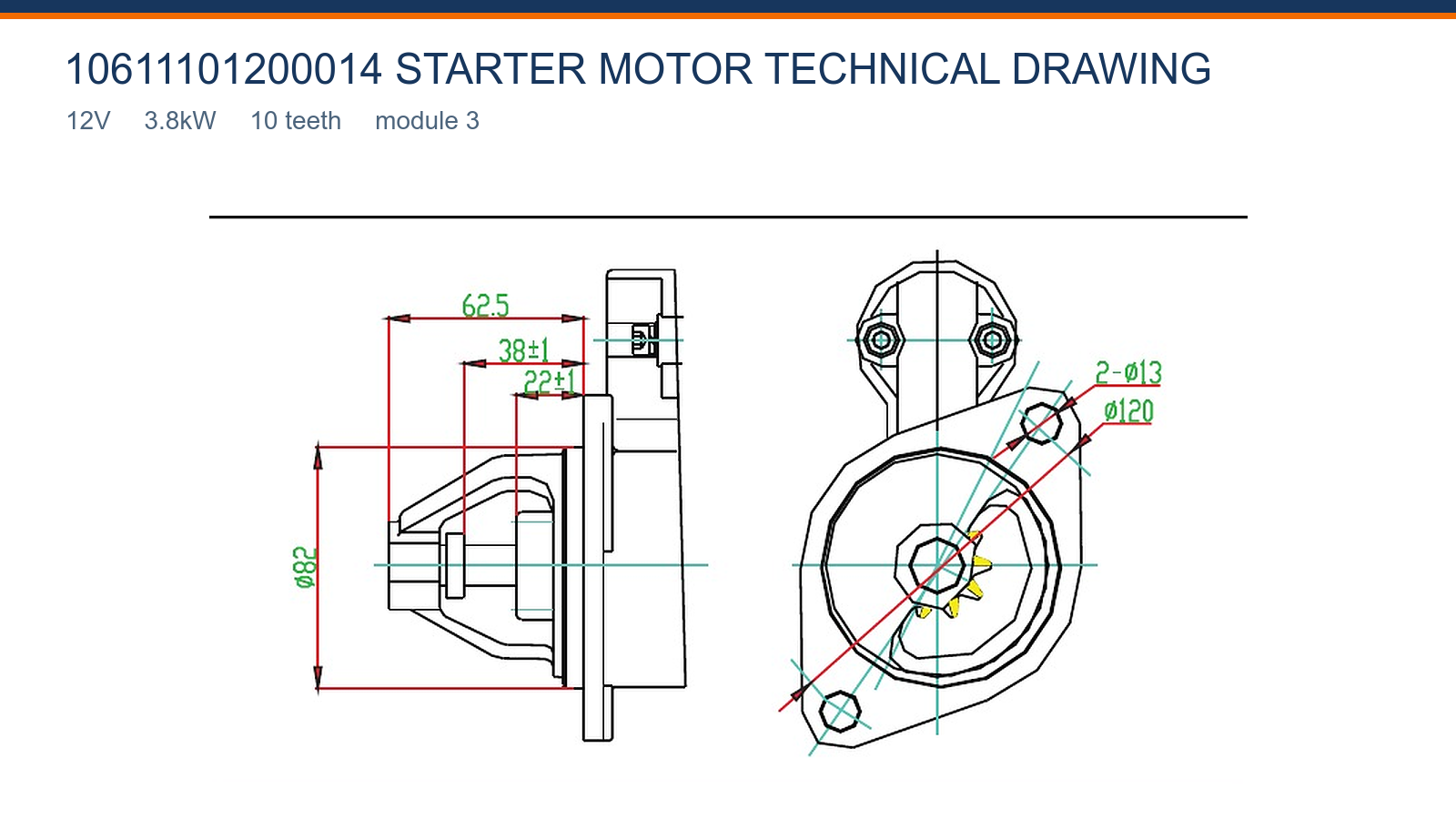

For technical sales teams confirming the stated application, the source-faithful technical drawing records the available mounting information for 10611101200014, including 2×Ø13, Ø120, 62.5 mm, 38±1 mm, 22±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

10611101200014 Aftermarket Replacement and Application

For equipment-parts dealers reviewing drive-end geometry, match 10611101200014 to CHANGFA ZS1110G, ZS1115, CFZS1130, CF36 and keep the related numbers 10611101200014 on the same enquiry. If the old unit carries another suffix, flange, drive or terminal arrangement, quote it separately until the physical version is confirmed.

For purchasing teams comparing nearby starter versions, use the gallery to compare the flange, 10T pinion and rear connections before approving the order. Keep module 3 with the tooth count. A changed mounting or terminal feature should be quoted as another starter version.

10611101200014 Wholesale Supply for Distributors and Importers

For distributors confirming an incoming batch, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For aftermarket product managers defining label requirements, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

10611101200014 Starter Motor Buyer FAQ

How should a distributor confirm 10611101200014 carton identification for warehouse identification?

For warehouse planners opening a first stocking order, ask that unit and carton labels repeat the agreed reference, 12V, 3.8kW and 10T where the packaging format permits. Add the customer's barcode and destination marks before production. Clear identification allows distributors to receive, bin and pick this version without opening packaging or relying on a generic starter description.

How should a workshop distinguish 10611101200014 label and suffix before accepting a substitute?

For importers preparing a technical RFQ, photograph the complete old-unit label for 10611101200014, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

What evidence best identifies 10611101200014 stock identification before comparing delivery options?

For inventory buyers defining label requirements, label the storage location with 10611101200014, 12V, 3.8kW and 10T, and keep a verified drive-end and rear-view image with the item master. Do not combine visually similar Changfa units when a module, mounting reference or terminal orientation differs. Clear version separation supports faster picking and reduces returns caused by near-match stock.

What should purchasing verify first for 2×Ø13 for a documented fitment decision?

For maintenance suppliers comparing the flange and terminals, the drawing lists 2×Ø13 for 10611101200014. Count the holes, measure their diameters and compare their positions from the locating face. A matching outer housing does not compensate for a hole pattern that will not seat squarely, so flange geometry should pass before the starter reaches the installation bay.

Which specification deserves priority for 62.5 mm, 38±1 mm and 22±1 mm when preparing a product query?

For equipment-parts dealers reviewing a replacement proposal, use 62.5 mm, 38±1 mm and 22±1 mm when comparing 10611101200014. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

What evidence best identifies 10611101200014 rear-terminal photograph before accepting a substitute?

For purchasing teams confirming the stated application, use the rear view of 10611101200014 to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in CHANGFA ZS1110G, ZS1115, CFZS1130, CF36. A correct drive end with an unusable terminal position is not a complete fitment match.

How can an importer validate Ø120 during an application review?

For distributors checking application evidence, 10611101200014 shows Ø120. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

What evidence best identifies CHANGFA ZS1110G, ZS1115, CFZS1130, CF36 cranking condition when confirming the quoted item?

For technical buyers confirming electrical ratings, before replacing the starter on CHANGFA ZS1110G, ZS1115, CFZS1130, CF36, test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 12V, 3.8kW starter and make a fitment request easier to resolve.

Request a Wholesale Quote for 10611101200014 Agricultural Machinery Starter Motor

For engine-parts specialists confirming commercial terms, request pricing for 10611101200014 by sharing the application, quantity, delivery country and any neutral or private-label packaging needs. Clear label, drive-end, flange and terminal photos help confirm the exact starter before the offer is issued.
