YANGCHAI 4105 24V 4.5kW 9T Starter Motor

YANGCHAI 4105 24V 4.5kW 9T Agricultural Machinery Starter Motor for YANGCHAI 4105

For wholesale program managers requesting production pricing, this aftermarket agricultural machinery starter motor is specified for YANGCHAI 4105 with 24V, 4.5kW and 9T. The page keeps the replacement identity, technical definition and wholesale order information in one place.

For sales teams defining label requirements, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

YANGCHAI 4105 24V 4.5kW 9T Starter Motor Specifications and Technical Drawing

For purchasing teams checking repeat-order specifications, this starter should be identified by the complete mounting set, including 2×Ø13, Ø82, Ø120 and 21±1 mm. A single matching dimension does not establish a direct replacement.

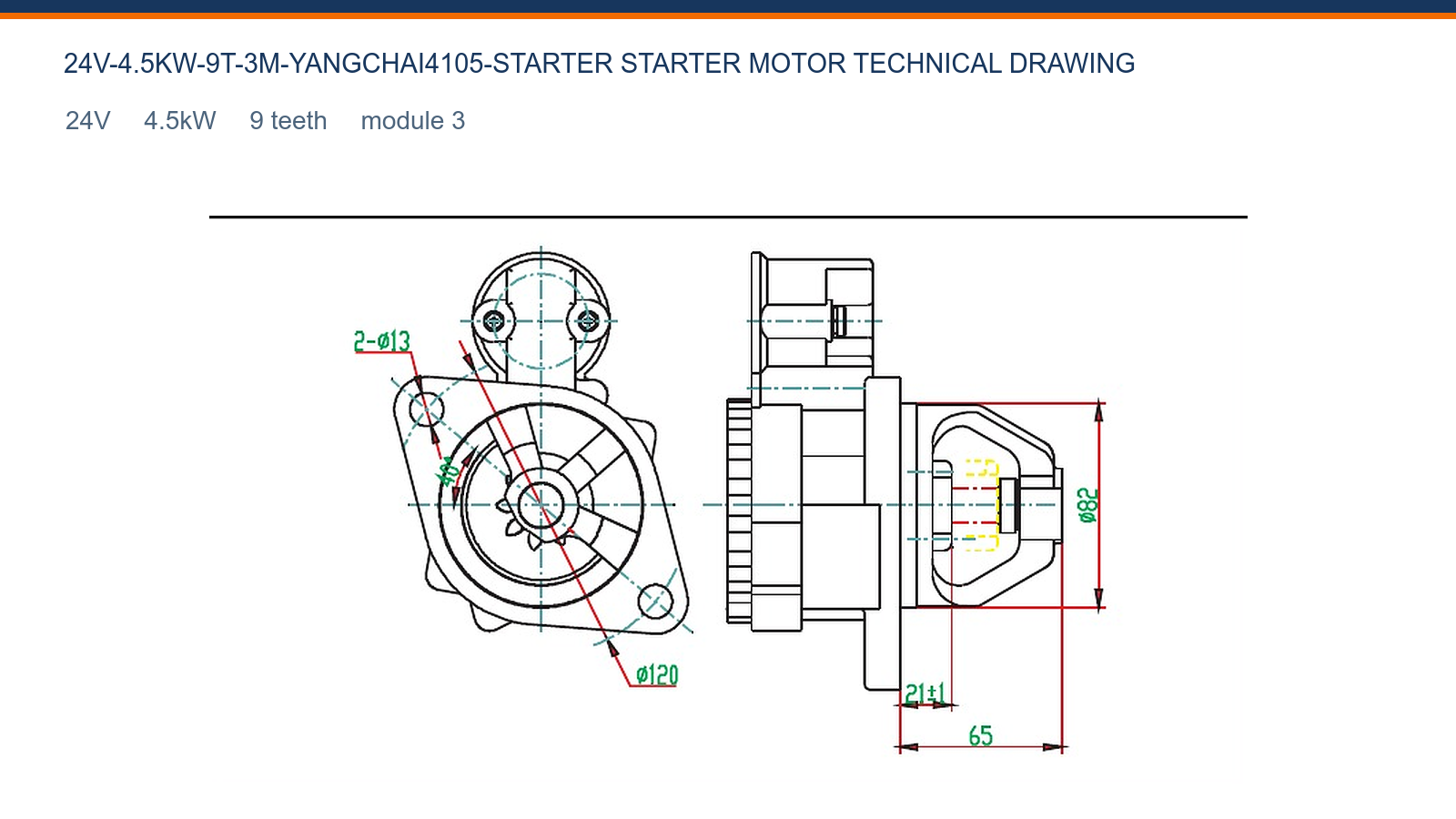

For distributors matching the starter being replaced, the source-faithful technical drawing records the available mounting information for YANGCHAI 4105 24V 4.5kW 9T, including 2×Ø13, Ø82, Ø120, 21±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

YANGCHAI 4105 24V 4.5kW 9T Aftermarket Replacement and Application

For service-parts networks comparing the flange and terminals, send YANGCHAI 4105 24V 4.5kW 9T, the full YANGCHAI 4105 description and photos of the starter being removed. These details allow the quotation to stay product-specific when related numbers appear on more than one housing version.

For importers reviewing a replacement proposal, use the gallery to compare the flange, 9T pinion and rear connections before approving the order. Keep module 3 with the tooth count. A changed mounting or terminal feature should be quoted as another starter version.

YANGCHAI 4105 24V 4.5kW 9T Wholesale Supply for Distributors and Importers

For inventory buyers confirming an incoming batch, YANGCHAI 4105 24V 4.5kW 9T is available for professional aftermarket supply to agricultural-machinery distributors, importers and engine-parts wholesalers. Ask for wholesale pricing with quantity, destination and packaging requirements; standard terms are 20 pcs MOQ, 7–15 days after confirmation and 18 months warranty.

For fleet-parts buyers preparing a volume quote, Elecdura can align product identification, electrical testing and packaging records with the buyer's order. The exact inspection scope depends on the agreed quantity and market requirements and should be stated before production planning.

YANGCHAI 4105 24V 4.5kW 9T Starter Motor Buyer FAQ

What evidence best identifies 9T and module 3 for a documented fitment decision?

For technical sales teams reviewing a replacement proposal, the supplied drive uses 9 teeth with module 3. Count the old pinion teeth and compare outside diameter, rest position and engagement depth at inquiry stage. The 3 module is part of the gear definition, so another pitch must not be combined on the one stock line. This check protects the ring gear from an incorrect mesh.

How should a workshop distinguish YANGCHAI 4105 24V 4.5kW 9T label and suffix when preparing a fitment request?

For fitment reviewers preparing a technical RFQ, photograph the complete old-unit label for YANGCHAI 4105 24V 4.5kW 9T, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

How can an importer validate flange clocking before comparing delivery options?

For application specialists checking version-defining data, no separate angular callout is stated for YANGCHAI 4105 24V 4.5kW 9T. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

How should a workshop distinguish YANGCHAI 4105 24V 4.5kW 9T technical claim evidence for a documented fitment decision?

For sales teams planning a repeat order, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the YANGCHAI 4105 equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

Which check should lead 4.5kW output on YANGCHAI 4105 when several versions look alike?

For service-parts networks checking repeat-order specifications, the 4.5kW rating belongs to the YANGCHAI 4105 24V 4.5kW 9T configuration used for YANGCHAI 4105. Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

What should receiving teams compare on YANGCHAI 4105 24V 4.5kW 9T replenishment when the starter removed from the machine is available?

For importers planning replenishment, keep YANGCHAI 4105 24V 4.5kW 9T, 24V, 4.5kW, 9T, the application description and the agreed packaging on the same replenishment line. Add dated photos when the equipment fleet changes or a different removed unit appears. This gives purchasing and warehouse teams enough detail to avoid silently merging a new version into established stock.

Which check should lead 24V and 4.5kW when several versions look alike?

For product managers checking application evidence, YANGCHAI 4105 24V 4.5kW 9T is defined as 24V and 4.5kW. Confirm the machine electrical system and the old starter rating together, because the voltage must agree with the machine system while rated power influences available cranking effort. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

How can an importer validate YANGCHAI 4105 before accepting a substitute?

For maintenance suppliers preparing an OE-based quote, YANGCHAI 4105 identifies the intended agricultural or industrial machine family, but it should not be used by itself. Pair the application with YANGCHAI 4105 24V 4.5kW 9T, the 24V electrical system and the 9-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration before price and delivery are finalized.

Request a Wholesale Quote for YANGCHAI 4105 24V 4.5kW 9T Agricultural Machinery Starter Motor

For private-label buyers planning a repeat order, send YANGCHAI 4105 24V 4.5kW 9T, the YANGCHAI 4105 application, required quantity, destination and packaging preference. Add old-unit photos when available. Elecdura will review the 24V, 4.5kW, 9T version and prepare a product-specific wholesale quotation.
