S4018 Massey Ferguson MF240 Starter Motor Wholesale

S4018 Starter Motor Distributor Application Guide for Massey Ferguson MF240 and Perkins engine

For a fleet parts team, S4018 identifies one Massey Ferguson MF240 and Perkins engine requirement. The 12V 2.0kW 10T module-3.175 starter with the cataloged 26 mm drive-end distance provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S4018 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S4018 Starter Motor Mounting Dimensions for Distributor Approval

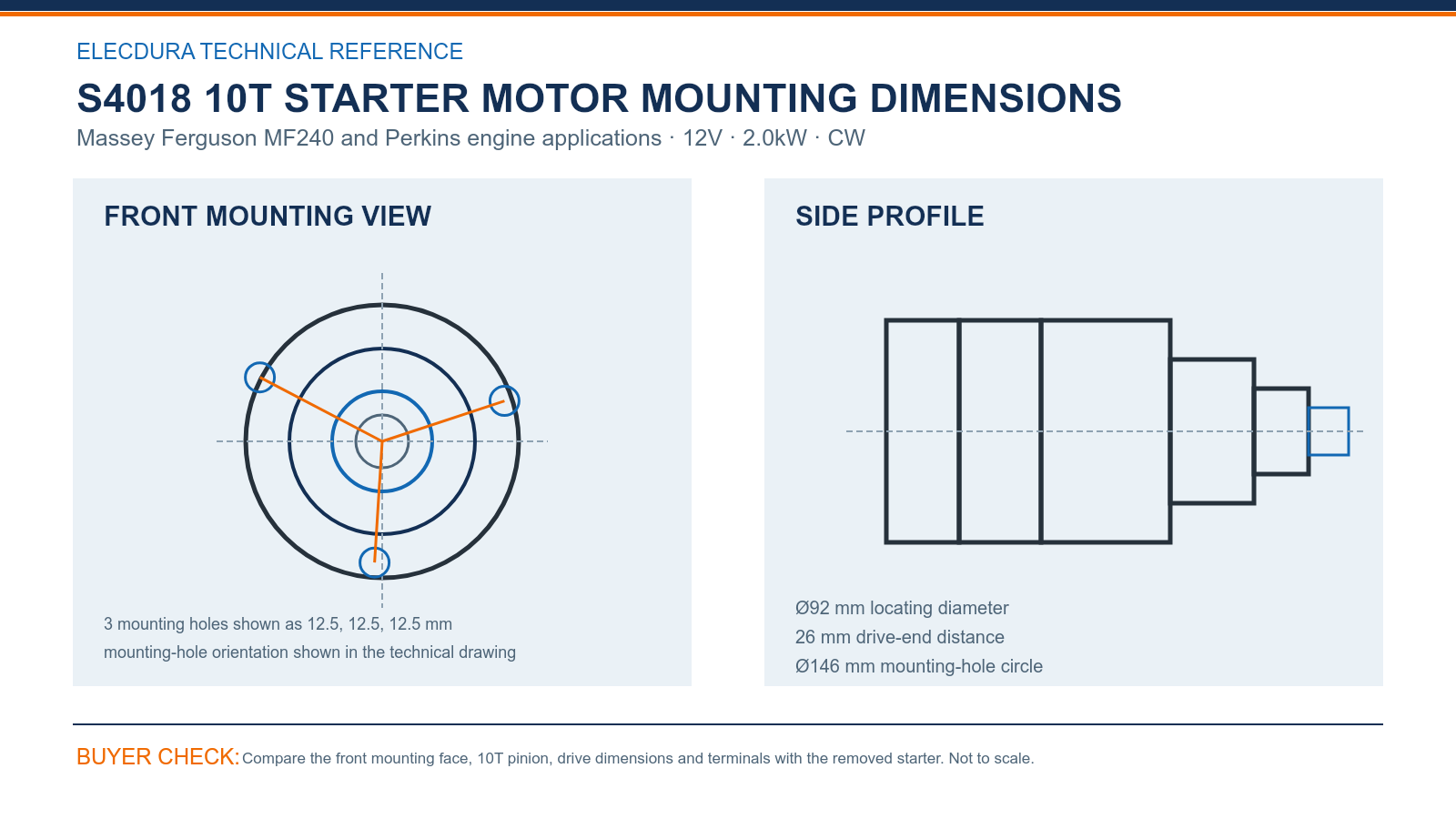

Use the S4018 technical drawing to check Ø92 mm locating diameter, 26 mm drive-end distance and Ø146 mm mounting-hole circle. Add the 3 mounting holes shown as 12.5, 12.5, 12.5 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S4018 comparison with 12V, 2.0kW, the 10T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S4018 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S4018, 110439, 11130194, 11130408, 11130711, 11132166, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S4018 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S4018, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Use the MF240 and Perkins record with S4018, then compare mounting and terminal positions. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S4018; the product decision itself still depends on the complete reference, 12V 2.0kW rating, drive end, mounting face and terminal layout.

S4018 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming S4018 during a Massey Ferguson MF240 branch inspection for the 2.0kW MF240 product line?

Align the removed starter and S4018 at the mounting face. Compare Ø92 mm locating diameter, Ø146 mm mounting-hole circle, 3 mounting holes shown as 12.5, 12.5, 12.5 mm and 26 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Before removing S4018, what should the workshop test under load in a Massey Ferguson MF240 branch workshop for the 2.0kW MF240 product line?

Before fitting S4018, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does S4018 require a physical comparison for Massey Ferguson applications during branch sourcing for the 2.0kW MF240 product line?

For S4018, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 2.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with S4018 identify an interchangeable unit in a Massey Ferguson MF240 branch sourcing program for the 2.0kW MF240 product line?

The references identify a related sourcing family, not automatic interchangeability. Use S4018, 110439, 11130194, 11130408, 11130711 to locate possible matches, then confirm 12V, 2.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which operating factors should guide a fleet's S4018 reserve quantity in a Massey Ferguson MF240 branch program for the 2.0kW MF240 product line?

Review workshop consumption by the stated Massey Ferguson MF240 and Perkins engine population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical S4018 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for S4018 during a Massey Ferguson MF240 branch receiving check for the 2.0kW MF240 product line?

Use a first-lot sample to confirm S4018, 12V, 2.0kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S4018 without delay in a Massey Ferguson MF240 branch sourcing program for the 2.0kW MF240 product line?

List S4018 together with the supported equipment record, 12V, 2.0kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S4018 in a Massey Ferguson MF240 branch review for the 2.0kW MF240 product line?

For S4018, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S4018 Send a Starter Motor Distributor Enquiry

For a focused S4018 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
