1811001770 Isuzu 6RB1 DH100 Starter Motor Distributor

1811001770 Isuzu 6RB1 Starter Distributor Supply

Isuzu 6RB1 and DH100 starters serve older trucks, buses and industrial equipment where downtime and long-distance sourcing are common. A complete 1811001770 enquiry should identify the engine or machine and show the unusually large three-hole flange from a straight angle.

This is a 7.5kW product with an Ø180 mounting circle, so it should not be grouped with smaller Isuzu starters simply because several numbers begin with 181100. The 11T module-3.5 drive and 122 mm engagement reference further define the version.

1811001770 7.5kW 11T Starter Dimensions for Heavy Duty Buyers

Keep the 24V, 7.5kW, 11T, module-3.5 and clockwise values together from quotation to warehouse receipt. The high output explains the product’s heavy-duty role, while the pinion and module describe the gear interface expected by the supported Isuzu installation.

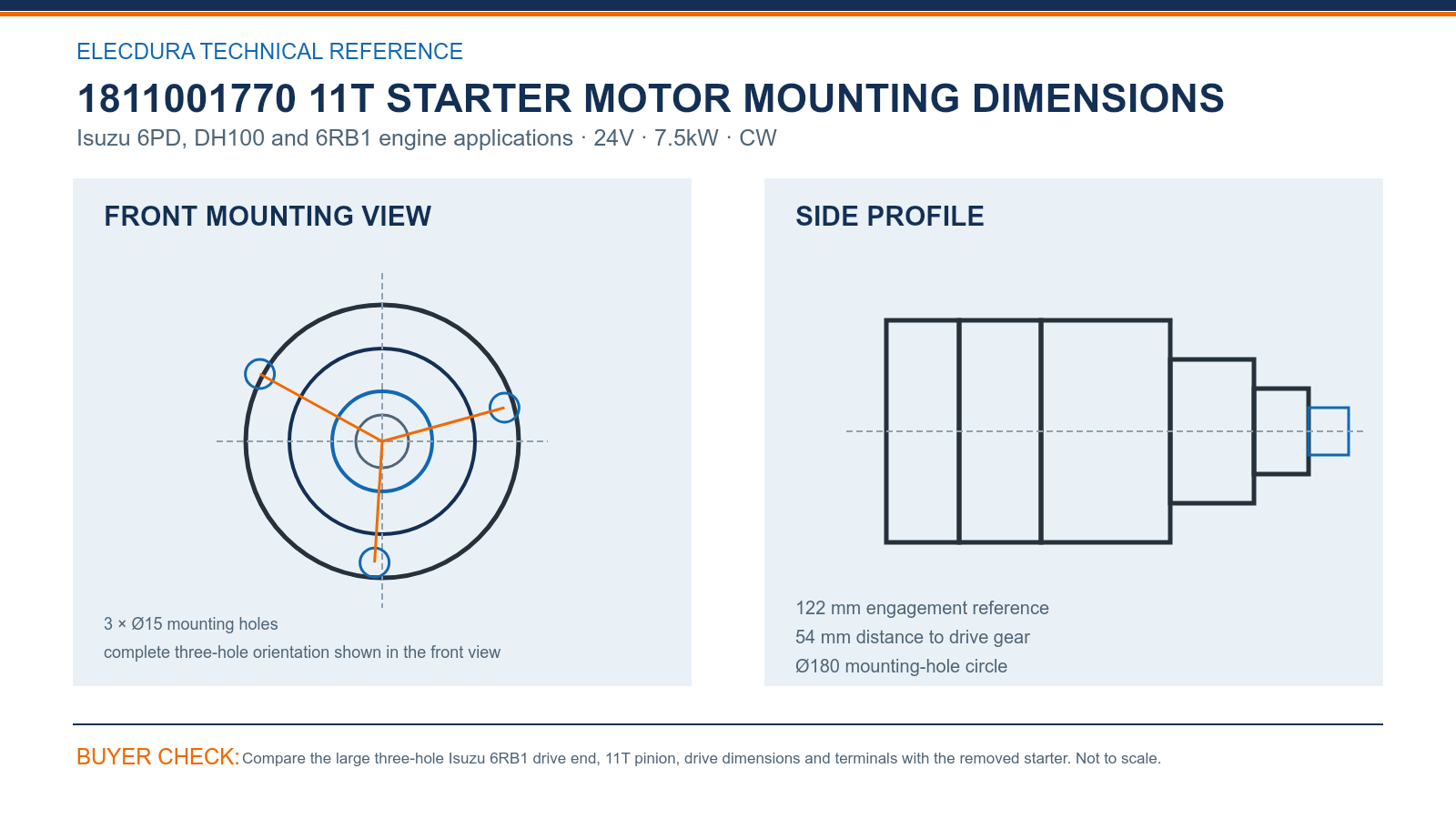

1811001770 Isuzu 6RB1 Starter Drawing for Heavy-Duty Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the 122 mm engagement reference, 54 mm distance to the drive gear, three Ø15 holes and Ø180 mounting circle. Because the flange is large, photographs should include the full ear outline and a scale reference rather than cropping tightly around the central register.

1811001770 Nikko Cross Reference for Isuzu Parts Importers

1811002170, 1811002171, 1811002172, 1811002740, 1811002741, 1811002742 and Nikko 0-23000-6090 or 0-23000-7040-family numbers expand the lookup range. The requested Isuzu number and actual engine identity should remain visible on all commercial records.

Service companies supporting 6PD, DH100 and 6RB1 equipment can allocate quantities by engine family and site. Saving the accepted large-flange photographs with each account makes later emergency shipments easier to trace and reduces reliance on a remembered visual resemblance.

1811001770 Heavy Starter Packing and Replenishment Support

A 7.5kW starter benefits from reinforced carton support, protected terminals and careful pallet loading. Elecdura can discuss samples, scheduled distributor orders, neutral packaging and customer branding after the product definition is clear; receiving can then sample mounting, pinion and marking details.

Elecdura’s production video shows assembly and electrical testing for wholesale starter supply. Isuzu distributors can use it when reviewing manufacturing capability, lot inspection and packing arrangements while the supplied item remains the confirmed 1811001770 heavy-duty configuration.

1811001770 Starter FAQs for Isuzu Heavy-Duty Buyers

How should 6PD, DH100 and 6RB1 demand be recorded?

Keep the engine or equipment identity on each customer line even when 1811001770 is the shared starter reference. Add the engine serial and accepted flange images. This helps distributors trace which application established the match and avoids merging several older Isuzu fleets into an unqualified heavy-duty starter description.

What does the 7.5kW rating mean for product selection?

The 7.5kW output places this unit in a high-cranking heavy-duty group and should remain visible with 24V, 11T and module 3.5. A lower-output starter may share part of the Isuzu reference pattern but should not be treated as the same commercial product without a complete technical comparison.

Why is the Ø180 mounting circle a useful identifier?

An Ø180 circle is much larger than the Ø127 or Ø146 faces used by many nearby starters. Combined with three Ø15 holes, 122 mm engagement and a 54 mm drive distance, it gives the buyer a distinctive dimensional profile that can be compared remotely with the removed Isuzu unit.

Can Nikko 0-23000-6090 support an 1811001770 search?

Yes. 0-23000-6090, 0-23000-6091 and the 0-23000-7040 family can support inventory and supplier searches. Keep 1811001770 and the Isuzu engine identity on the commercial line, then use the 7.5kW 11T specification and Ø180 face to confirm the actual product version. Retain the searched Nikko number on the enquiry.

How should the large Isuzu flange be photographed?

Place the drive end square to the camera, include every mounting ear and add a ruler or known scale without blocking the holes. Take a second side view showing the pinion, solenoid and terminals. Avoid tight crops that make the Ø180 face look similar to a smaller mounting pattern.

Which packing safeguards protect an 1811001770 shipment?

Use strong carton supports that prevent the 7.5kW starter from rolling, protect all three ears and cover the pinion and terminals. Cartons should remain stable on the pallet and resist moisture during long transport. Receiving should reject packaging that lets the heavy body load a mounting ear.

What field readings help evaluate an Isuzu no-crank complaint?

Record battery voltage during cranking, positive and negative cable drop, trigger voltage at the solenoid and the condition of the ring gear. Note whether the engine turns freely. These checks give the supplier useful context and can reveal external resistance or mechanical problems before the heavy starter is removed.

What should buyers send for 1811001770 distributor terms?

Provide the Isuzu engine or machine model, serial, old starter numbers, full-face and terminal photographs, quantity, expected annual demand, packing requirement, destination and delivery window. Elecdura can then price the correct Ø180 7.5kW version and discuss samples, scheduled deliveries or consolidated wholesale shipments. Add any branch allocation requirements.

Request 1811001770 Isuzu Starter Motor Distributor Terms

Send the Isuzu engine or equipment model, full old-unit numbers, clear Ø180 flange, pinion and terminal photographs, required quantity, delivery window, packing request and destination to info@elecdurauto.com. Elecdura will review 1811001770 and provide distributor pricing with lead-time options.
