1811004211 Isuzu Komatsu PC310 Starter Motor Wholesale

1811004211 Starter Motor B2B Fitment Guide for Isuzu 6QA1, 6WG1 and 6RQ1 engines in Komatsu PC310 equipment

Isuzu engine distributors, Komatsu excavator fleets and construction-parts importers can source 1811004211 for Isuzu 6QA1, 6WG1 and 6RQ1 engines in Komatsu PC310 equipment. Preserve the 11T pinion and 24V 7.5kW 11T module-3 catalog configuration; do not substitute by engine family or housing appearance alone.

Before comparing 1811004211 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

1811004211 Starter Motor Technical Data for Fleet Parts Buyers

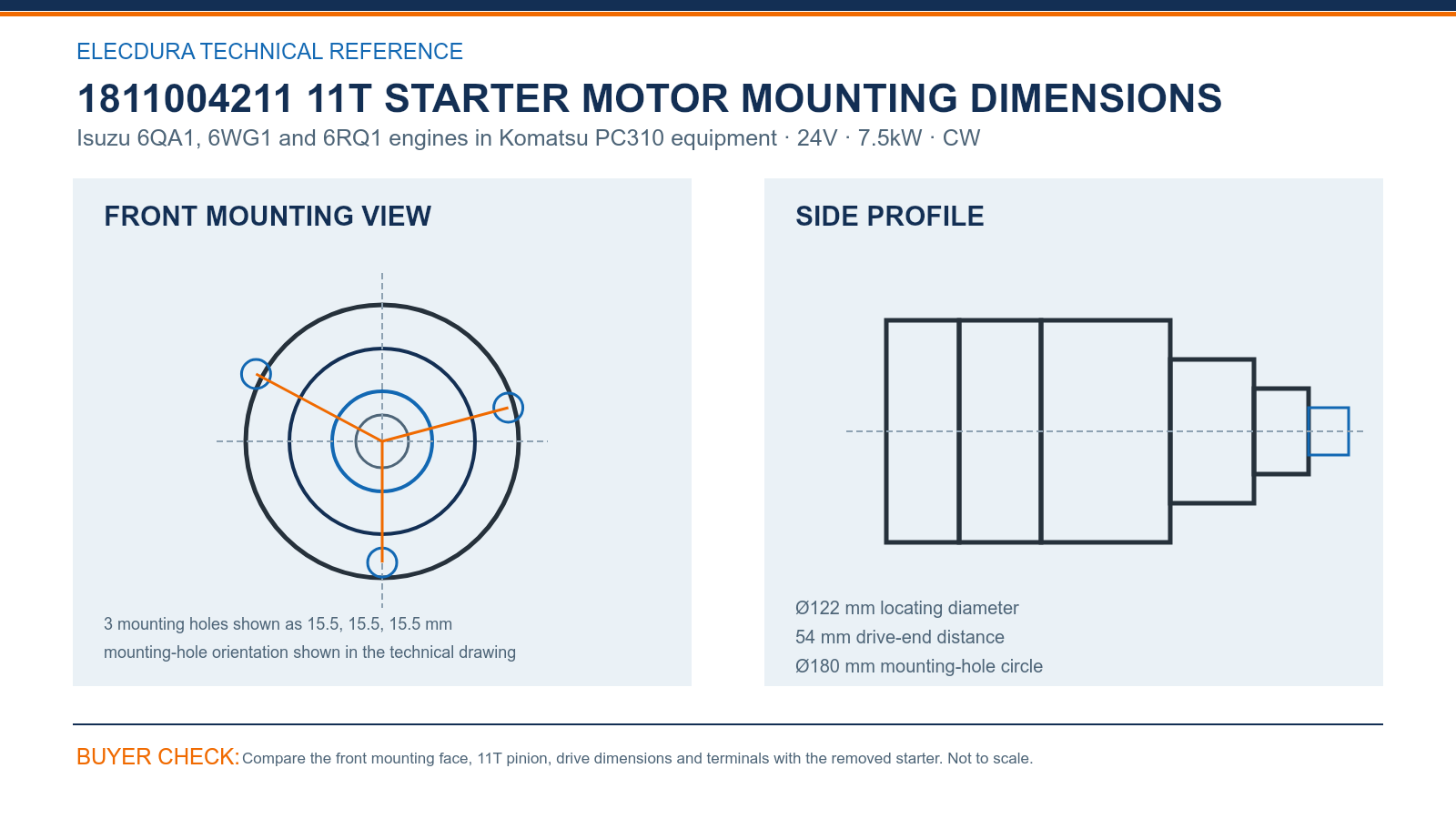

1811004211 Isuzu 6QA1, 6WG1 and 6RQ1 engines in Komatsu PC310 equipment 24V 7.5kW 11T starter mounting dimensions.

Check the 1811004211 drawing against the removed starter at the mounting face and drive end. The critical references are 3 mounting holes shown as 15.5, 15.5, 15.5 mm, Ø122 mm locating diameter, Ø180 mm mounting-hole circle and 54 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The 1811004211 drive-end decision is completed by 11T, module 3.5 and CW, together with 24V and 7.5kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

1811004211 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 1811004211, 1811004215, M009T82071, M9T82071 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 24V, 7.5kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

1811004211 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 1811004211 quantity, destination and required arrival date.

Plan stock by excavator population, service interval and required recovery time. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 1811004211, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

1811004211 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for 1811004211 in an Isuzu Komatsu PC310 dealer review?

Keep the carton or product traceability code and note when and where 1811004211 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

Why is the 1811004211 reference match only the start of product selection in an Isuzu Komatsu PC310 dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 1811004211 group is acceptable only when 24V, 7.5kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Which details separate 1811004211 from similar starters used around Isuzu 6QA1, 6WG1 and 6RQ1 engines in Komatsu PC310 equipment during dealer sourcing?

For 1811004211, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 7.5kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

What workshop readings are useful when diagnosing a starting complaint involving 1811004211 during an Isuzu Komatsu PC310 dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 1811004211. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming 1811004211 during an Isuzu Komatsu PC310 dealer inspection?

Align the removed starter and 1811004211 at the mounting face. Compare Ø122 mm locating diameter, Ø180 mm mounting-hole circle, 3 mounting holes shown as 15.5, 15.5, 15.5 mm and 54 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine 1811004211 replenishment share one enquiry in an Isuzu Komatsu PC310 dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 1811004211 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched 1811004211 unit quickly during an Isuzu Komatsu PC310 dealer receiving check?

For 1811004211, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 15.5, 15.5, 15.5 mm, Ø122 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for 1811004211 in an Isuzu Komatsu PC310 dealer sourcing program?

Send the complete OE number, exact Isuzu 6QA1, 6WG1 and 6RQ1 engines in Komatsu PC310 equipment details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 7.5kW 11T CW starter with packing, lead time, warranty and freight options.

1811004211 Ask for Starter Motor Export Pricing

To discuss 1811004211 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
