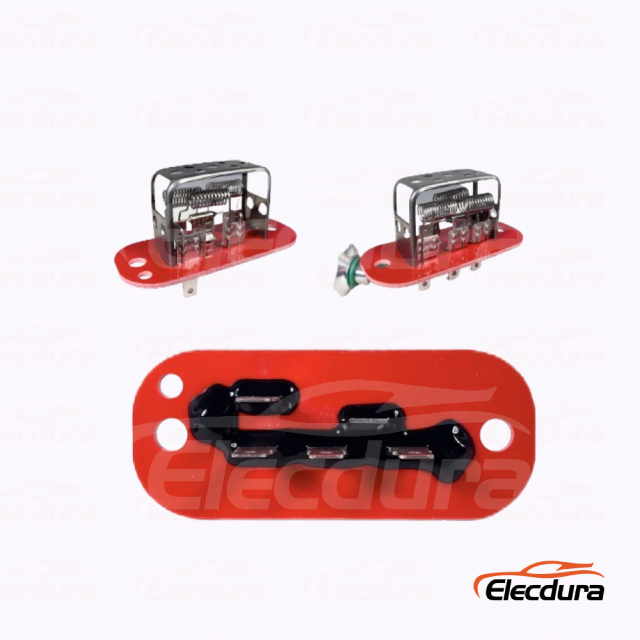

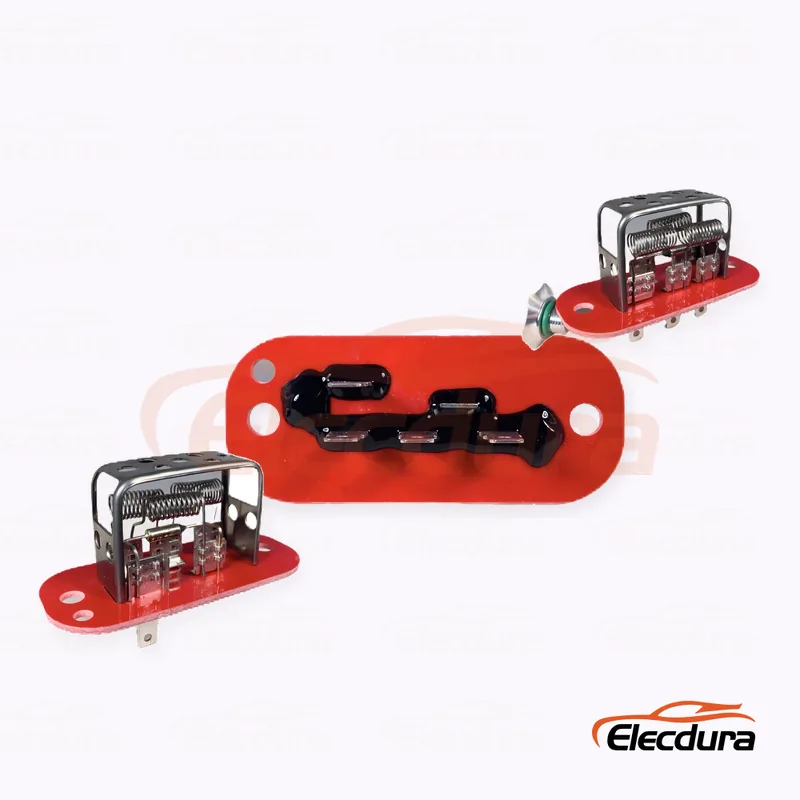

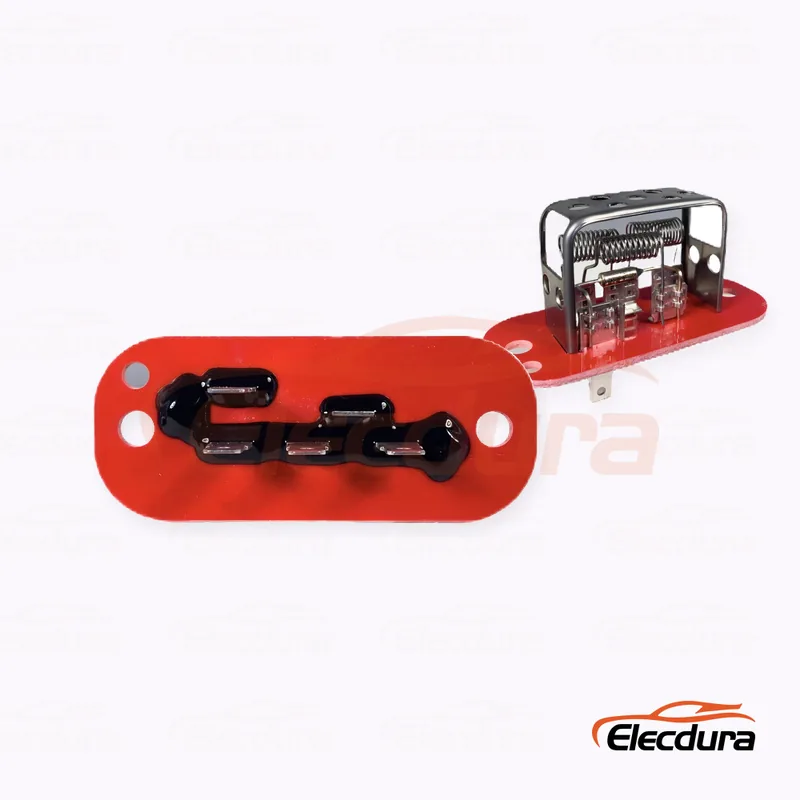

Freightliner Heavy Duty Blower Motor Resistor Plate OE 33-31923 – Open-Coil Airflow-Cooled Design

33-31923 Freightliner Open-Coil Resistor Plate for Fleet Supply

The 33-31923 identity is widely searched through MT1356, 20907, RD-5-6450-0P, 71R1455 and ABPN83321350. These references should resolve to one measured plate before a distributor merges stock.

This design places exposed coils in HVAC airflow, making terminal mapping and mounting geometry as important as the number. A flat product photo cannot prove the electrical stage layout.

Differentiate 33-31923 by Plate Geometry and Terminal Mapping

Freightliner resistor catalogs contain several rectangular plates that look similar from the coil side. The buyer should compare terminal position, hole spacing and plate dimensions before assigning a cross-reference.

Because airflow removes heat from the exposed coils, installation outside the intended duct path can shorten service life. Inspection instructions should cover both part identity and the vehicle's cooling path.

• Map each terminal position on the golden sample.
• Measure mounting-hole centers and plate outline.
• Keep the long cross-reference list auditable.
• Inspect HVAC airflow during repeat-failure diagnosis.

Approve 33-31923 Freightliner Lots with a Measured Plate Drawing

A simple dimensioned drawing paired with top and terminal-side photographs gives purchasing and receiving teams a repeatable standard for this open-frame product.

Use Airflow and Motor-Current Evidence for 33-31923 Claims

Open coils can run excessively hot when duct airflow is restricted or the blower motor draws above-normal current. Fleet diagnosis should include both conditions before another plate is installed.

A claim photograph should show the failed coil, connector side and mounting area, together with the truck reference and lot. This makes a terminal mismatch or system overload visible.

33-31923 Freightliner Resistor Plate Buyer FAQs

Which cross-reference is most commonly paired with 33-31923?

MT1356 is a frequent trade reference, while 20907, RD-5-6450-0P, 71R1455 and several distributor numbers remain in the controlled OE group.

Why is plate geometry critical for this Freightliner resistor?

Neighboring open-coil plates can share a rectangular appearance. Hole centers, terminal positions and plate outline prevent wrong-bin substitutions.

What vehicle years should be published?

Exact-part listings vary between 1988–2001 and 1991–2000. Buyers should therefore confirm the actual truck year, source reference and plate geometry.

Does an open-coil plate require HVAC airflow?

Yes. Air passing through the duct removes heat from the coils; restricted flow can raise temperature and shorten service life.

What should be recorded on a golden sample?

Capture terminal map, plate dimensions, mounting-hole centers, coil layout and all reference numbers supplied by the customer.

Can SW2685 or 33-31903 stock replace 33-31923?

No assumption should be made. Those references identify a separate resistor plate and require their own terminal and mounting verification.

Which circuit checks matter after a coil burns open?

Inspect blower current, connector resistance, duct restriction and switch operation before concluding that the plate alone caused the failure.

How should mixed cross-reference cartons be marked?

Use 33-31923 as the lead identity and print only customer-approved crosses. Keep the complete map in the internal traceability file.

What should a Freightliner buyer send for quotation?

Provide truck model/year, source reference, terminal-side photos, plate measurements, annual volume, destination, packaging and sample requirements.

Request 33-31923 Freightliner Plate Samples and Technical Review

Send Elecdura the Freightliner reference, terminal view and mounting measurements for your 33-31923 program. We can compare MT1356 and other buyer numbers against one controlled sample.

For repeat fleet supply, specify drawing tolerances, carton references and lot-inspection frequency before production release.
