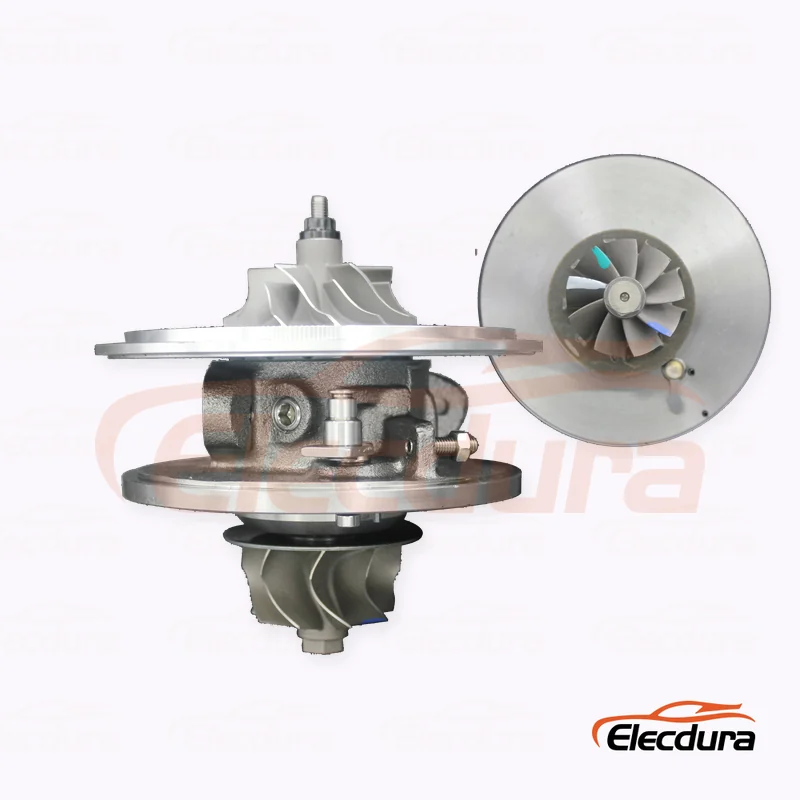

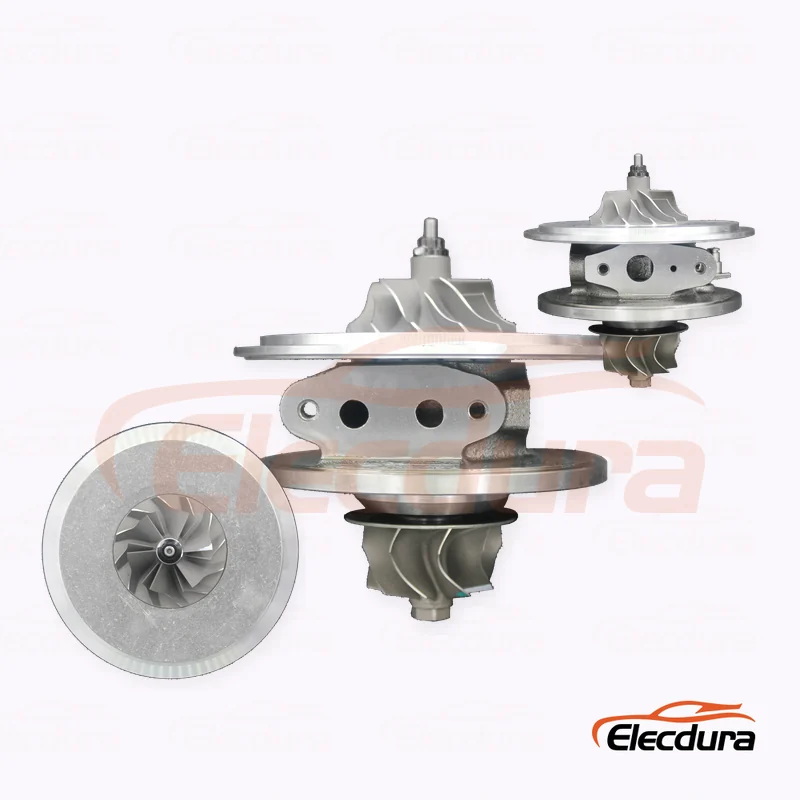

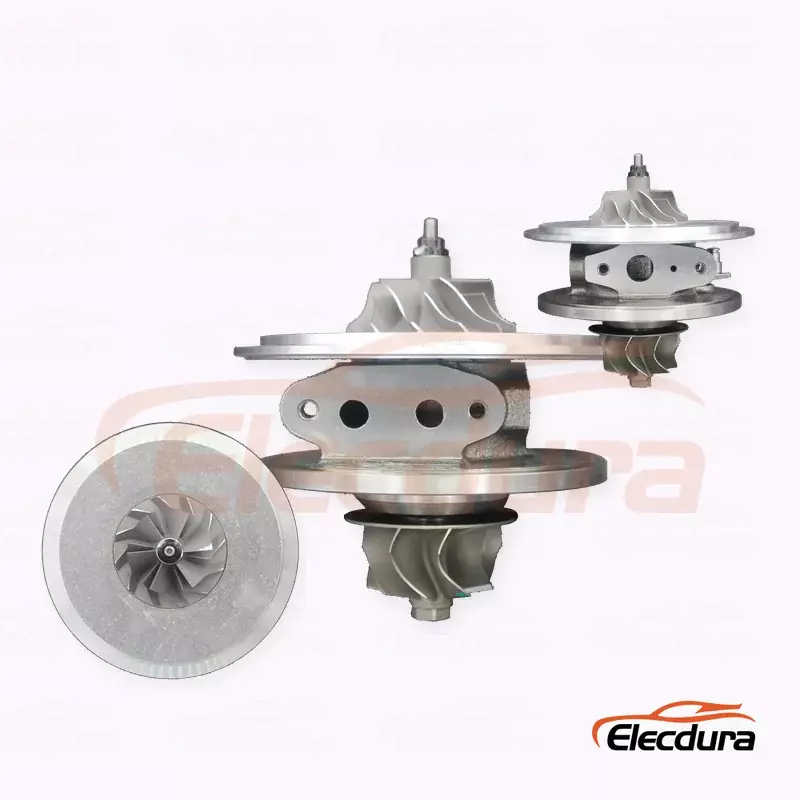

GT2056V 767720-0001 VGT Turbo Core for Nissan Frontier YD25

GT2056V 767720-0001 Turbo Core Overview for Commercial Repair Buyers

GT2056V 767720-0001 covers the earlier YD25DDTi commercial pickup turbo generation before the later BV45 electronic-actuator update.

The 14411-EB70 OE family is the principal matching group, with suffixes controlled by nameplate and production year.

Vane movement, vacuum control and charge-air contamination require inspection before housing reuse.

GT2056V 767720-0001 / 14411-EB70A Turbo Core Specifications for Wholesale Buyers

767720-0001 / 14411-EB70A Related Reference Numbers for Turbo Core Matching

GT2056V 767720-0001 Matching Information for Distributor Sourcing

Nissan YD25DDTi 2.5L GT2056V Application Reference for Repair Programs

GT2056V 767720-0001 CHRA Cartridge Value for Aftermarket Replacement Supply

GT2056V allows Frontier and Navara repair programs to rebuild usable early-version housings.

Separating 767720 stock from BV45 products protects distributors from generation-break errors.

OE suffix control improves repeat purchasing for regional pickup fleets.

Elecdurauto supplies the VGT cartridge for number-led aftermarket repair.

GT2056V 767720-0001 / 14411-EB70A Turbo Core FAQ for Wholesale and Repair Buyers

How should buyers distinguish GT2056V 767720-0001 from the later turbo generation?

GT2056V 767720-0001 belongs to an earlier YD25 commercial pickup turbo family, while later production commonly moves to a BV45 electronic-actuator unit. Buyers should confirm production year, OE suffix, actuator style, and turbo label. Mixing early and late cartridges can create incompatible geometry control, housing connections, and boost calibration even when the engine remains YD25. The GT2056V 767720-0001 evidence should remain attached to the distributor order and repair record.

Why must VGT control be checked for GT2056V 767720-0001?

VGT performance depends on free vane movement and correct actuator control. For GT2056V 767720-0001, the workshop should inspect vacuum or electronic actuation, nozzle-ring carbon, lever travel, and calibration position. A cartridge can restore the rotating assembly, but it cannot repair damaged control hardware. Version evidence should be attached to bulk orders to reduce mismatch risk. The GT2056V 767720-0001 evidence should remain attached to the distributor order and repair record.

How should OE suffixes be handled for GT2056V 767720-0001?

OE suffixes such as those in 14411-EB70A / 14411-EB70B may represent supersessions, market changes, or nearby complete-turbo versions. They should be listed as confirmed only when reliable number alignment and the removed turbo label agree. Distributors should not treat every suffix as interchangeable. A controlled reference table gives sales teams useful search coverage without overstating fitment. The GT2056V 767720-0001 evidence should remain attached to the distributor order and repair record.

What YD25 repair conditions should be checked before installing GT2056V 767720-0001?

YD25 repair teams should inspect oil supply, crankcase ventilation, intake leaks, exhaust restriction, intercooler debris, and VGT movement before installing GT2056V 767720-0001. A blocked oil feed or contaminated charge-air system can damage the new core. Boost-control faults should be diagnosed separately because an actuator or sensor problem may remain after the cartridge is replaced. The GT2056V 767720-0001 evidence should remain attached to the distributor order and repair record.

Which housing conditions allow a GT2056V 767720-0001 cartridge repair?

For the earlier YD25 GT2056V unit, reusable housings need intact locating surfaces, correct vacuum-operated geometry, and no evidence that either wheel touched the volutes. The nozzle ring should be checked for uneven wear as well as carbon restriction. Buyers should also compare the actuator bracket and oil connections with the removed 767720-0001 turbo because later Frontier hardware belongs to another generation. If vane control cannot be restored consistently, replacing the complete turbo is more defensible than installing a CHRA into doubtful housings.

How can distributors plan stock for GT2056V 767720-0001 commercial pickup demand?

Stock planning should separate early and late YD25 versions, record confirmed OE suffixes, and track demand by workshop or fleet customer. GT2056V 767720-0001 should have its own nameplate examples and actuator notes. Such organization supports repeat procurement while preventing broad Frontier or Navara descriptions from mixing incompatible cartridges in the same warehouse location. The GT2056V 767720-0001 evidence should remain attached to the distributor order and repair record.
