10461080 Mack CH Starter Motor Wholesale Supply

10461080 Starter Motor Fleet Replacement Supply for Mack CH heavy-truck

10461080 supports Mack CH heavy-truck sourcing where buyers need a defined electrical and drive-end match. Its 24V, 7.5kW, 11T CW specification must remain linked to the 24V 7.5kW 11T module-4.233 configuration for the Mack CH catalog record; a visually related unit may belong on a different RFQ line.

Before comparing 10461080 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

10461080 Starter Motor Technical Data for Fleet Parts Buyers

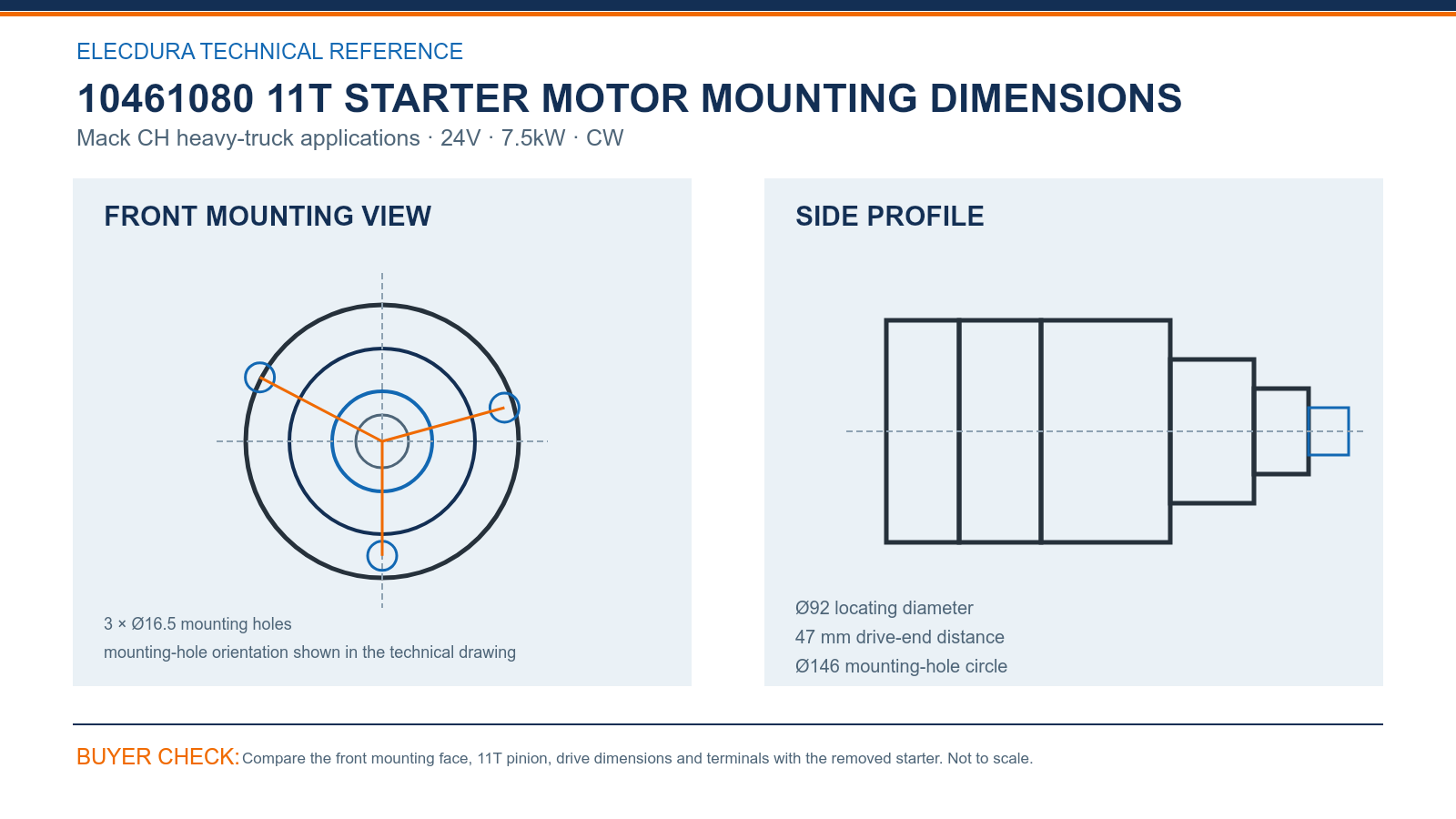

The 10461080 dimensional review starts at the mounting face: verify 3 × Ø16.5 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. Then compare the 47 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 10461080, electrical and mechanical identity must agree: 24V, 7.5kW, 11T, module 4.233 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

10461080 Starter Motor Cross-Reference Review for Fleet Buyers

The 10461080 cross-reference group includes 114416, 10461080, 10461141, 10461362, 10479067, 10479130, 10479142. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 7.5kW, 11T, CW, mounting geometry and terminals.

If a mixed 10461080 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

10461080 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 10461080 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Mack CH heavy-truck population, recent consumption and transfer time between service locations. Keeping 10461080, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 10461080, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

10461080 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of 10461080 stock in a Mack CH workshop program?

Plan road-service stock by fleet routes and mark the complete reference on cartons. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What pre-installation circuit review supports replacement with 10461080 in a Mack CH workshop workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 10461080 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Can 10461080 be selected from the application name alone during workshop sourcing?

Confirm 10461080 against the complete OE number, the stated Mack CH heavy-truck use and clear front, side and terminal photographs. The decisive points are 11T, 3 × Ø16.5 mounting holes and 47 mm drive-end distance. Those controls keep visually related starters from being combined in one order.

Which checks should follow an OE-number match for 10461080 in a Mack CH workshop sourcing program?

A number match narrows the search but does not finish it. For 10461080, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which dimensions in the 10461080 drawing should receiving teams sample during a Mack CH workshop inspection?

For 10461080, sample the 3 × Ø16.5 mounting holes, Ø92 locating diameter, Ø146 mounting-hole circle and 47 mm drive-end distance. Count the 11T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

What receiving records are useful for a shipment of 10461080 during a Mack CH workshop receiving check?

Receiving should verify the 10461080 label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø92 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for 10461080 in a Mack CH workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 10461080, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving 10461080 in a Mack CH workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 10461080 without assuming that every no-crank complaint originates inside the starter.

10461080 Ask for Starter Motor Export Pricing

Prepare the 10461080 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
