S1026 Cummins ISC Mack E7 Starter Motor Wholesale

S1026 Starter Motor Distributor Application Guide for Cummins ISC and Mack E7 engine

For a fleet parts team, S1026 identifies one Cummins ISC and Mack E7 engine requirement. The 11-tooth large-pitch drive for Cummins ISC and Mack E7 purchasing provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S1026 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S1026 Starter Motor Mounting Dimensions for Distributor Approval

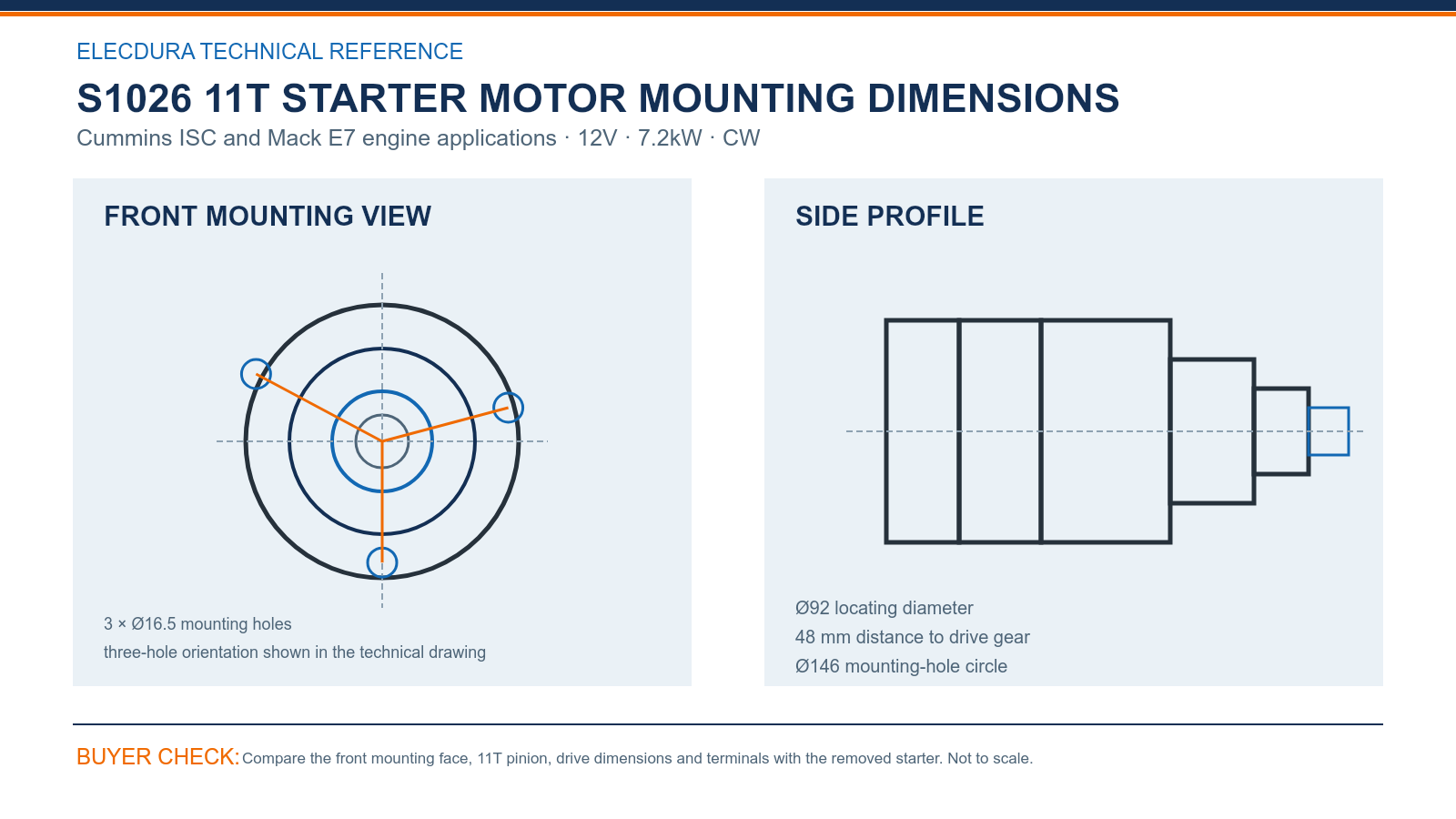

S1026 Cummins ISC Mack E7 12V 7.2kW 11T starter mounting dimensions.

Use the S1026 technical drawing to check Ø92 locating diameter, 48 mm distance to drive gear and Ø146 mounting-hole circle. Add the 3 × Ø16.5 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S1026 comparison with 12V, 7.2kW, the 11T drive, module 4.233 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S1026 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S1026, 19011518, 19011521, 19011529, 19011530, 61014400, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1026 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S1026, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Keep Cummins ISC and Mack E7 demand separated by engine record until the 11T drive and terminal side match. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S1026; the product decision itself still depends on the complete reference, 12V 7.2kW rating, drive end, mounting face and terminal layout.

S1026 Starter Motor Questions from Commercial Buyers

How should buyers use the S1026 cross-reference group in a Cummins ISC Mack E7 branch sourcing program?

A number match narrows the search but does not finish it. For S1026, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What fitment evidence makes a quotation for S1026 reliable during branch sourcing?

Use the complete removed-unit number and exact Cummins ISC and Mack E7 engine record. Compare the 11T pinion, 3 × Ø16.5 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What pre-installation circuit review supports replacement with S1026 in a Cummins ISC Mack E7 branch workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S1026 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What should be measured on the drive end before releasing S1026 to stock during a Cummins ISC Mack E7 branch inspection?

The first-lot check should cover 3 × Ø16.5 mounting holes, Ø92 locating diameter and 48 mm distance to drive gear. Add the 11T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What should an importer include in the replenishment forecast for S1026 in a Cummins ISC Mack E7 branch program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S1026, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when S1026 starter motors arrive during a Cummins ISC Mack E7 branch receiving check?

For S1026, match carton and product labels to the purchase order, then sample 12V, 11T, 3 × Ø16.5 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What information should accompany a distributor RFQ for S1026 in a Cummins ISC Mack E7 branch sourcing program?

A useful RFQ states S1026, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S1026 in a Cummins ISC Mack E7 branch review?

For a service review of S1026, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S1026 Send a Starter Motor Distributor Enquiry

For a focused S1026 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
