8300020 Mack 12V Starter Motor Distributor Supply

8300020 Starter Motor Wholesale Application Support for Mack heavy-truck

For Mack heavy-truck, 8300020 gives distributors a focused starting point for quotation and branch inventory. Confirm 12V, 4.6kW, 11T and CW, with particular attention to Ø17 mounting-hole version that must remain separate from the related Ø17.5 interface, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the 8300020 enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

8300020 Starter Motor Mounting Reference for Commercial Buyers

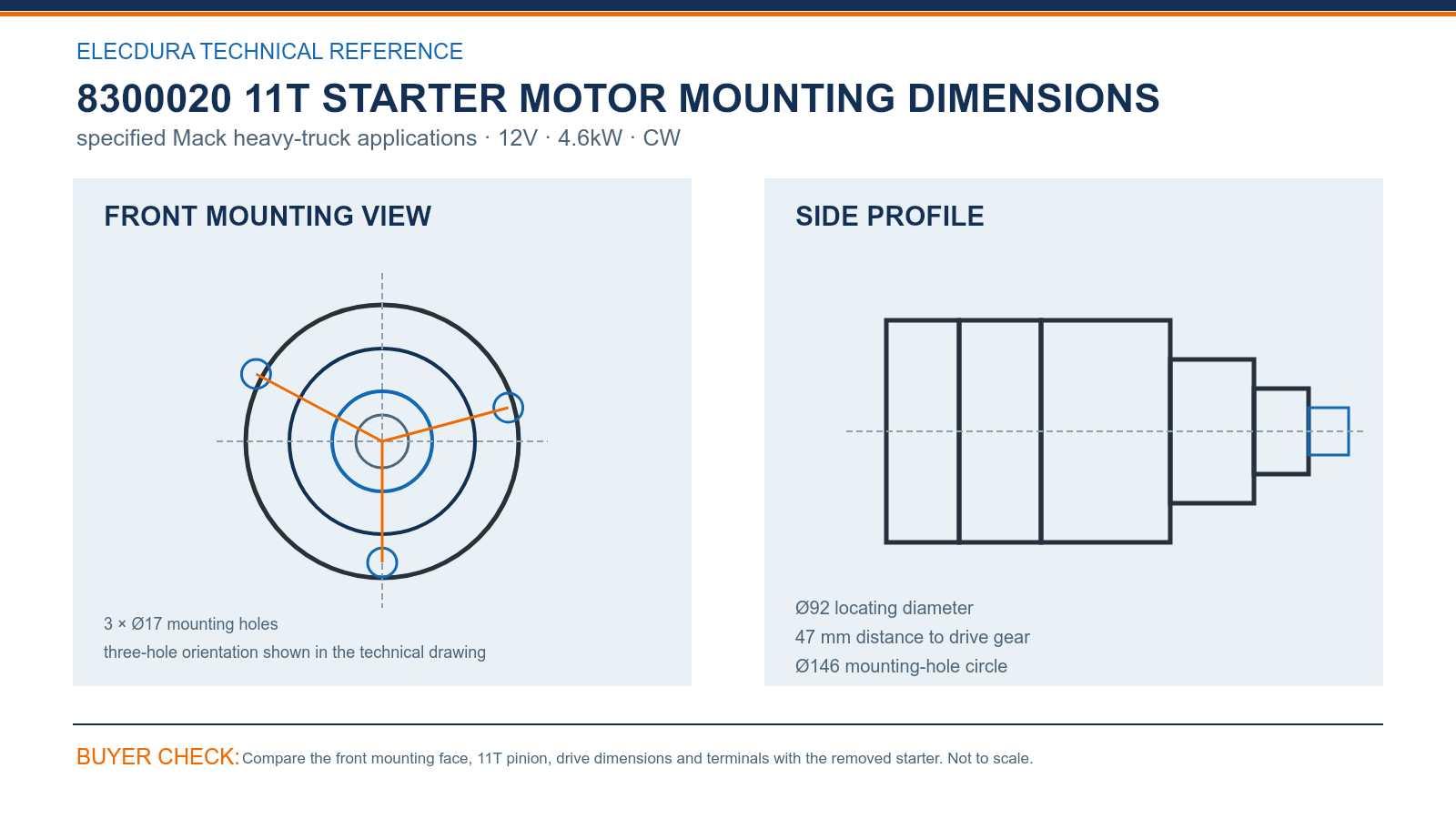

8300020 Mack 12V 4.6kW 11T starter Ø17 mounting dimensions.

Check the 8300020 drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø17 mounting holes, Ø92 locating diameter, Ø146 mounting-hole circle and 47 mm distance to drive gear. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The 8300020 drive-end decision is completed by 11T, module 4.233 and CW, together with 12V and 4.6kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

8300020 Starter Motor Cross-Reference Boundary for Importers

The 8300020 cross-reference group includes 8300020, 8200037. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 4.6kW, 11T, CW, mounting geometry and terminals.

If a mixed 8300020 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

8300020 Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare 8300020 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified 8300020 drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A 8300020 order should still be released against the complete OE number, Mack heavy-truck details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

8300020 Starter Motor Questions from Commercial Buyers

How can a buyer quarantine a mismatched 8300020 unit quickly during a Mack 12V service-network receiving check?

For 8300020, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø17 mounting holes, Ø92 locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should a distributor match before ordering 8300020 for Mack heavy-truck during service-network sourcing?

Use the complete removed-unit number and exact Mack heavy-truck record. Compare the 11T pinion, 3 × Ø17 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order 8300020 from an alternate OE number in a Mack 12V service-network sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 8300020 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed 8300020 starter motor in a Mack 12V service-network workshop?

Before fitting 8300020, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the 8300020 mounting drawing support product approval during a Mack 12V service-network inspection?

For 8300020, use a straight front view to compare the 3 × Ø17 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 47 mm distance to drive gear. Complete the check with 11T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of 8300020 stock in a Mack 12V service-network program?

Identify the approved Ø17-hole version on quotation, carton and receiving sheet so branches do not mix it with the Ø17.5 variant. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which order conditions should be stated when asking about 8300020 in a Mack 12V service-network sourcing program?

A useful RFQ states 8300020, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned 8300020 starter in a Mack 12V service-network review?

For a service review of 8300020, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

8300020 Email for Starter Motor B2B Pricing

A complete RFQ for 8300020 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 12V 4.6kW 11T CW starter, MOQ, packaging, warranty and shipping choices.
