S1011 Mack DMM CH Starter Motor Wholesale Supply

S1011 Starter Motor Wholesale Fitment for Mack DMM and CH Series truck

Mack vocational-fleet buyers, truck-parts rebuilders and regional distributors use S1011 to keep Mack DMM and CH Series truck demand tied to one 12V, 7.2kW, 11T CW configuration. The practical distinction is the large-pitch 11T drive for Mack DMM and CH vocational fleets, which should be checked before a similar heavy-duty housing is accepted.

Build the S1011 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S1011 Starter Motor Specifications and Drawing for Wholesale Buyers

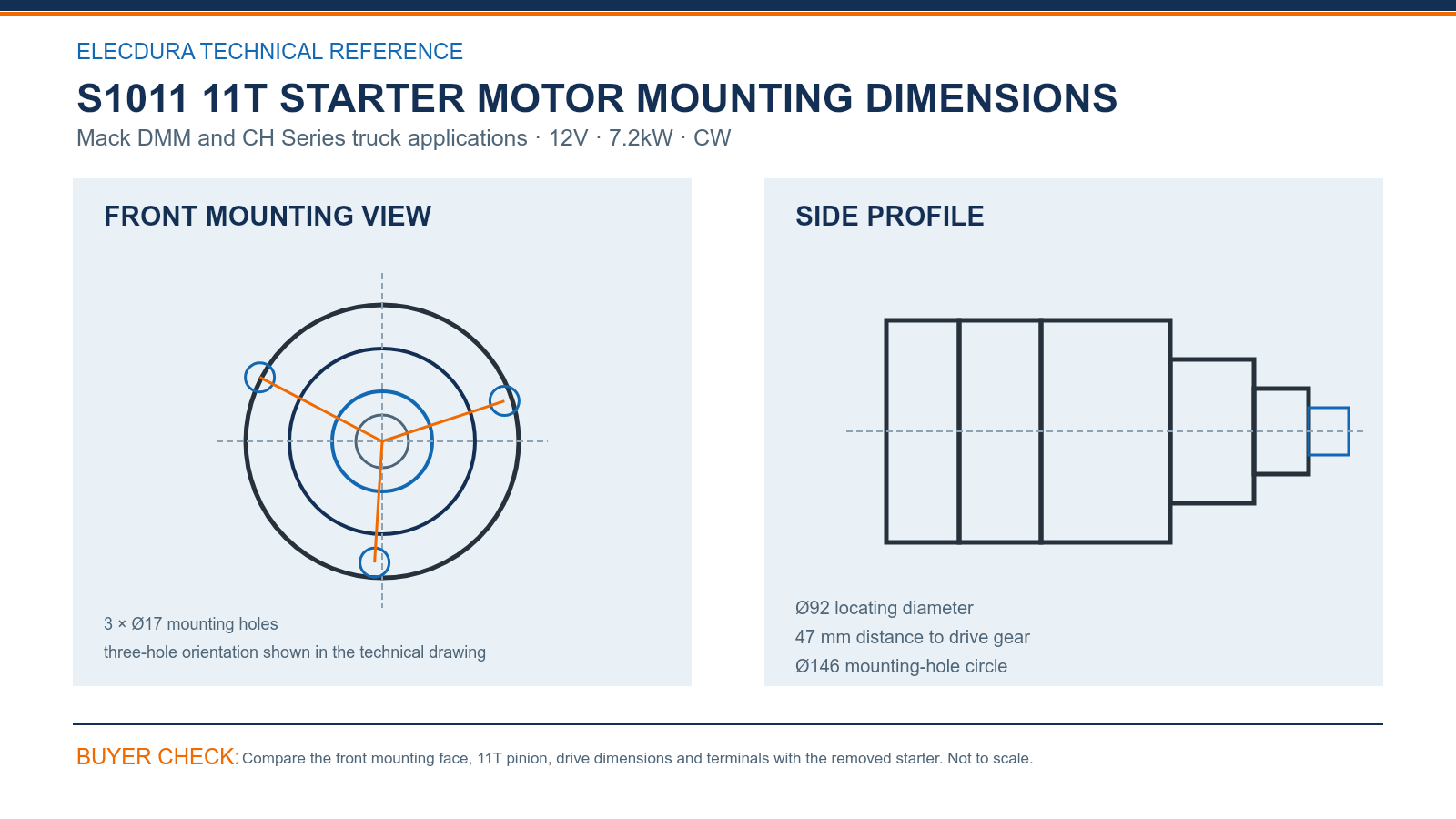

S1011 Mack DMM CH 12V 7.2kW 11T starter mounting dimensions.

Compare S1011 at the 3 × Ø17 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. The 47 mm distance to drive gear helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S1011, count the 11T pinion and confirm module 4.233, CW rotation, 12V and 7.2kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S1011 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S1011, 3103304, 19011529, 8200037, 8200308, M9T70379, M110R2604SE can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 7.2kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

S1011 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S1011 quantity, destination and required arrival date.

Separate road-fleet and severe-service quantities, then sample pinion, flange and terminal protection from each delivery lot. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S1011 remains tied to the stated Mack DMM and CH Series truck application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S1011 Starter Motor Questions from Commercial Buyers

How should a buyer request samples and bulk pricing for S1011 in a Mack DMM CH fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S1011, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which details separate S1011 from similar starters used around Mack DMM and CH Series truck during fleet sourcing?

For S1011, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 7.2kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Can a purchasing team consolidate every S1011 reference into one stock line in a Mack DMM CH fleet sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1011, 3103304, 19011529, 8200037, 8200308 to locate possible matches, then confirm 12V, 7.2kW, 11T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

What pre-installation circuit review supports replacement with S1011 in a Mack DMM CH fleet workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S1011 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What should be measured on the drive end before releasing S1011 to stock during a Mack DMM CH fleet inspection?

The first-lot check should cover 3 × Ø17 mounting holes, Ø92 locating diameter and 47 mm distance to drive gear. Add the 11T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What should an importer include in the replenishment forecast for S1011 in a Mack DMM CH fleet program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S1011, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when S1011 starter motors arrive during a Mack DMM CH fleet receiving check?

For S1011, match carton and product labels to the purchase order, then sample 12V, 11T, 3 × Ø17 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What traceability details should accompany a warranty enquiry for S1011 in a Mack DMM CH fleet review?

Keep the carton or product traceability code and note when and where S1011 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S1011 Request Starter Motor Wholesale Pricing

Send the complete S1011 reference, Mack DMM and CH Series truck details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 7.2kW, 11T CW starter, MOQ, packing, lead time, warranty and freight.
