12913077010 Yanmar Starter Motor 12V 2.8kW 15T

12913077010 Agricultural Machinery Starter Motor for YANMAR 4D88

For aftermarket wholesalers confirming commercial terms, built for YANMAR 4D88, this agricultural machinery starter motor combines 12V operation, 2.8kW rated power and a 15T drive. Elecdura supplies 12913077010 for tractor, farm-equipment and industrial-engine replacement programs, including distributor stock and planned replenishment.

For sourcing managers opening a first B2B purchase, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

12913077010 Starter Motor Specifications and Technical Drawing

For maintenance suppliers checking application evidence, this starter should be identified by the complete mounting set, including 2×Ø13, Ø120, Ø95 and 32.5±1 mm. A single matching dimension does not establish a direct replacement.

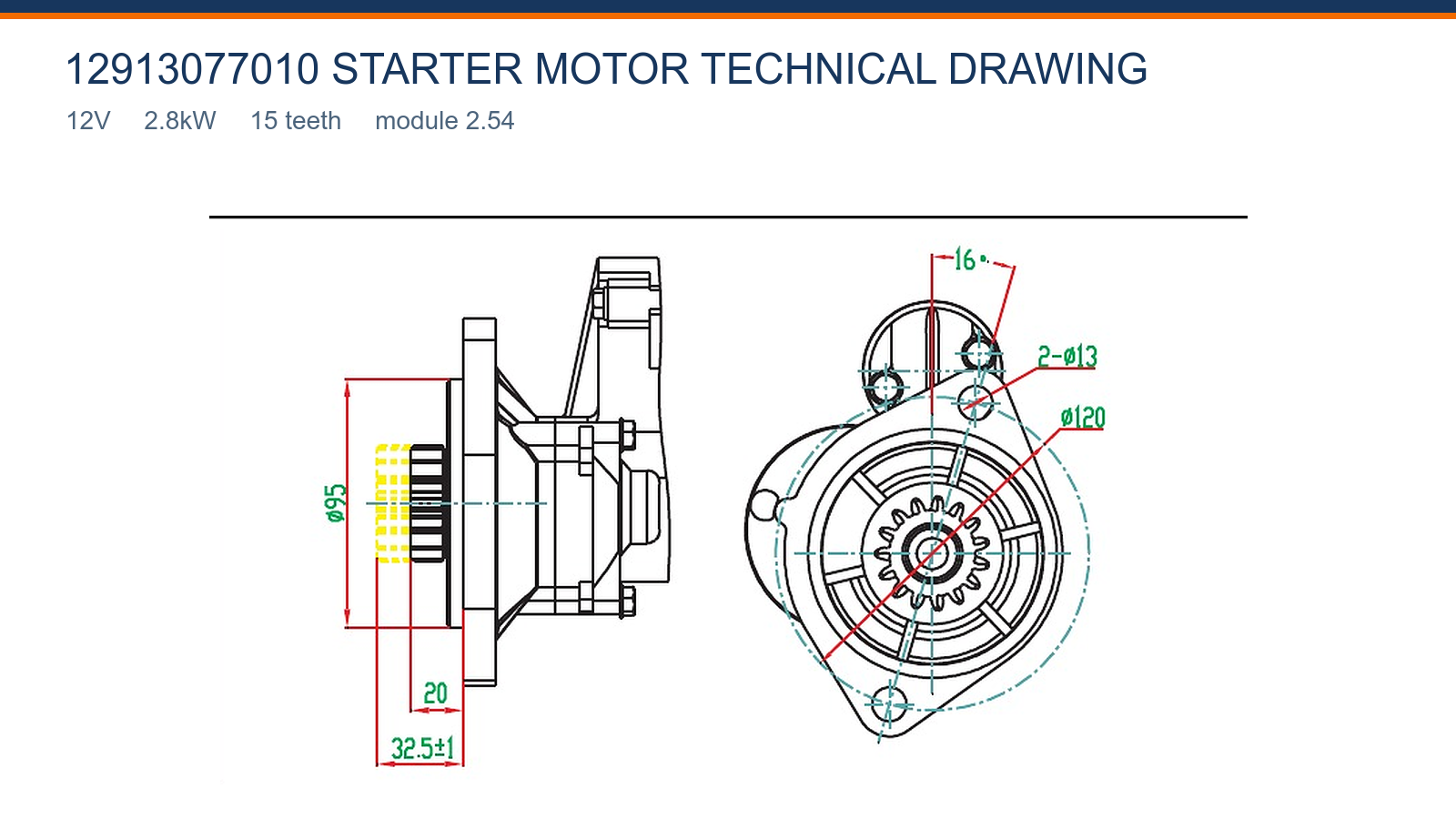

For equipment-parts dealers preparing an OE-based quote, the source-faithful technical drawing records the available mounting information for 12913077010, including 2×Ø13, Ø120, Ø95, 32.5±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

12913077010 Aftermarket Replacement and Application

For application specialists preparing a technical RFQ, the replacement search starts with 12913077010, S13-94A and the YANMAR 4D88 application. For mixed fleets or previously repaired machines, add clear old-unit photos so a substituted starter does not become the only fitment evidence.

For replacement-parts sellers checking version-defining data, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 15T drive and cable-stud direction, and ask for a separate review when one of those features differs.

12913077010 Wholesale Supply for Distributors and Importers

For warehouse planners planning a repeat order, 12913077010 is available for professional aftermarket supply to agricultural-machinery distributors, importers and engine-parts wholesalers. Ask for wholesale pricing with quantity, destination and packaging requirements; standard terms are 20 pcs MOQ, 7–15 days after confirmation and 18 months warranty.

For importers setting packaging requirements, define the reference group, accepted product version, inspection request and packaging standard before production. Those records help both sides manage replenishment and resolve any receiving question efficiently.

12913077010 Starter Motor Buyer FAQ

Which detail separates 12913077010 side-profile photograph when confirming the quoted item?

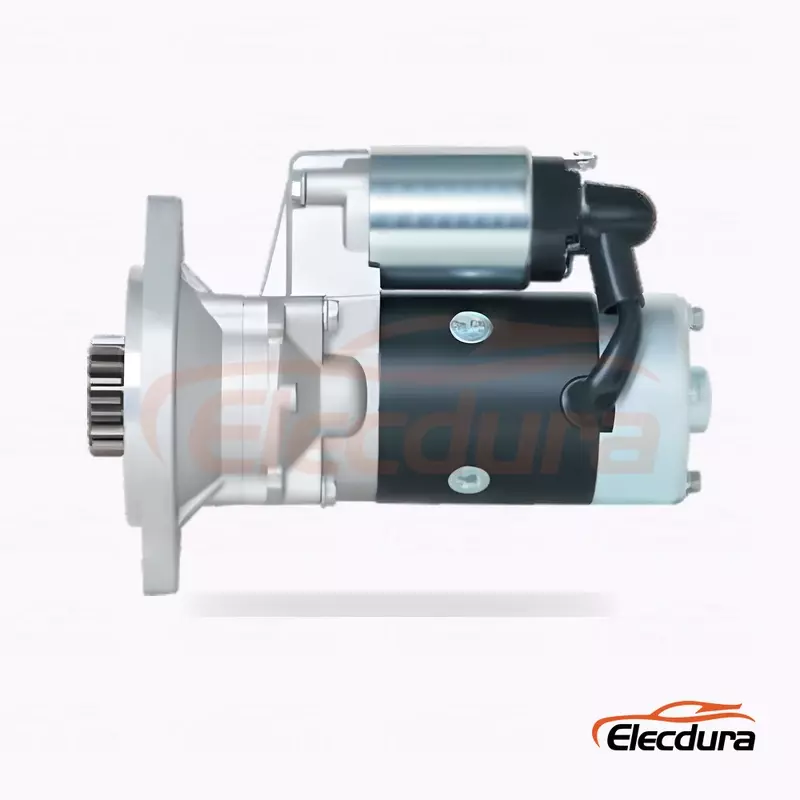

For engine-parts specialists checking version-defining data, the side profile of 12913077010 shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 32.5±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

How should a workshop distinguish 12913077010 drawing dimensions before an installation slot is booked?

For fleet-parts buyers confirming electrical ratings, read the 12913077010 drawing as a comparison aid, not as permission to ignore the removed unit. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

Which specification deserves priority for 2×Ø13 when checking a replacement proposal?

For technical sales teams checking repeat-order specifications, the drawing lists 2×Ø13 for 12913077010. Count the holes, measure their diameters and compare their positions from the locating face. A matching outer housing does not compensate for a hole pattern that will not seat squarely, so flange geometry should pass before the starter reaches the installation bay.

Which check should lead YANMAR 4D88 cranking condition for a documented fitment decision?

For fitment reviewers confirming the stated application, before replacing the starter on YANMAR 4D88, test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 12V, 2.8kW starter and make a fitment check easier to resolve.

What evidence best identifies 12913077010 drive-end photograph when several versions look alike?

For application specialists checking application evidence, the drive-end image for 12913077010 should be used to count 15 teeth and compare the flange, locating shoulder and pinion rest position. Compare an equally framed drive-end photo of the old unit. A profile photograph may not show the drive teeth and mounting points clearly; a frontal image is better for the final comparison.

What must be matched before quoting 12913077010 locating face for a first stocking order?

For replacement-parts sellers preparing an OE-based quote, the 12913077010 flange should sit flat against the YANMAR 4D88 mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

How can an importer validate 12913077010 cartons and units before accepting a substitute?

For warehouse planners requesting production pricing, sample cartons from different positions in the shipment and compare the 12913077010 labels, 12V marking, 15-tooth pinion, flange shape and terminal protection with the PO specification. Photograph any mixed marking, damaged terminal or different drive end during the pre-fit check, and isolate those pieces so the rest of the lot can be assessed consistently.

What must be matched before quoting YANMAR 4D88 for a first distributor purchase?

For importers evaluating a direct replacement, YANMAR 4D88 identifies the intended agricultural or industrial machine family, but it should not be used by itself. Pair the application with 12913077010, the 12V electrical system and the 15-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration before price and delivery are finalized.

Request a Wholesale Quote for 12913077010 Agricultural Machinery Starter Motor

For inventory buyers updating a customer item master, to source 12913077010 for a distributor or importer program, send the OE group, YANMAR 4D88, planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
