YANMAR 4TNV98L 24V 3.5kW 9T Starter Motor

YANMAR 4TNV98L 24V 3.5kW 9T Agricultural Machinery Starter Motor for YANMAR 4TNV98L

For regional parts suppliers confirming commercial terms, YANMAR 4TNV98L 24V 3.5kW 9T is an aftermarket agricultural machinery starter motor for YANMAR 4TNV98L. Its 24V system, 3.5kW output and 9T pinion give agricultural-machinery distributors, importers and engine-parts wholesalers a clear product definition for OE-reference replacement and repeat-order sourcing.

For aftermarket wholesalers planning mixed-model inventory, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

YANMAR 4TNV98L 24V 3.5kW 9T Starter Motor Specifications and Technical Drawing

For product managers checking application evidence, the 9T pinion is a fast visual identifier, but the purchase decision should also retain 24V, 3.5kW, the mounting geometry and terminal position.

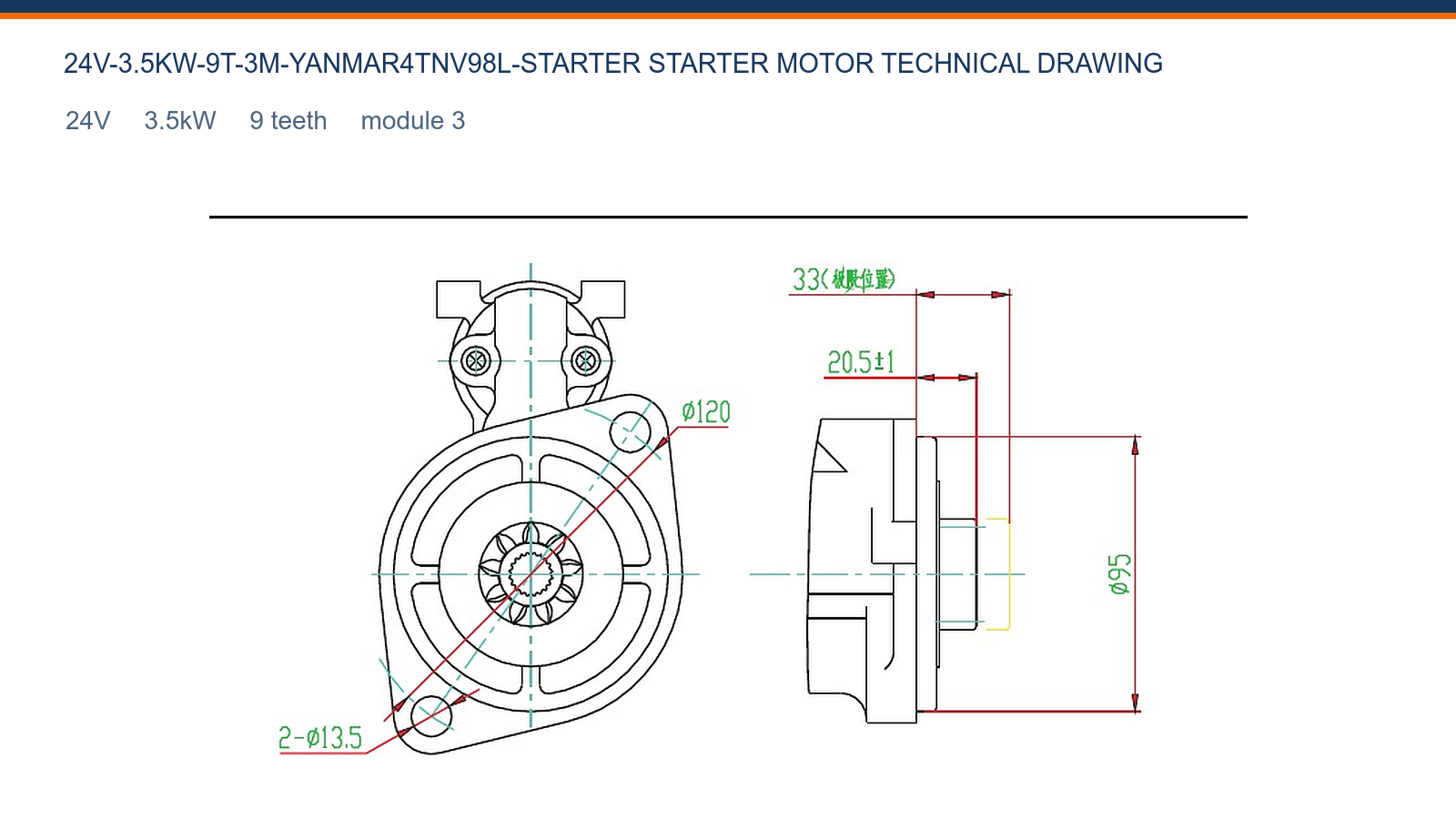

For maintenance suppliers preparing an OE-based quote, the source-faithful technical drawing records the available mounting information for YANMAR 4TNV98L 24V 3.5kW 9T, including 2×Ø13.5, Ø95, 20.5±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

YANMAR 4TNV98L 24V 3.5kW 9T Aftermarket Replacement and Application

For fitment reviewers preparing a technical RFQ, use YANMAR 4TNV98L 24V 3.5kW 9T as the primary product identity for YANMAR 4TNV98L. The cross-reference group YANMAR 4TNV98L 24V 3.5kW 9T supports aftermarket matching, while the electrical rating and drive-end configuration distinguish the exact version supplied here.

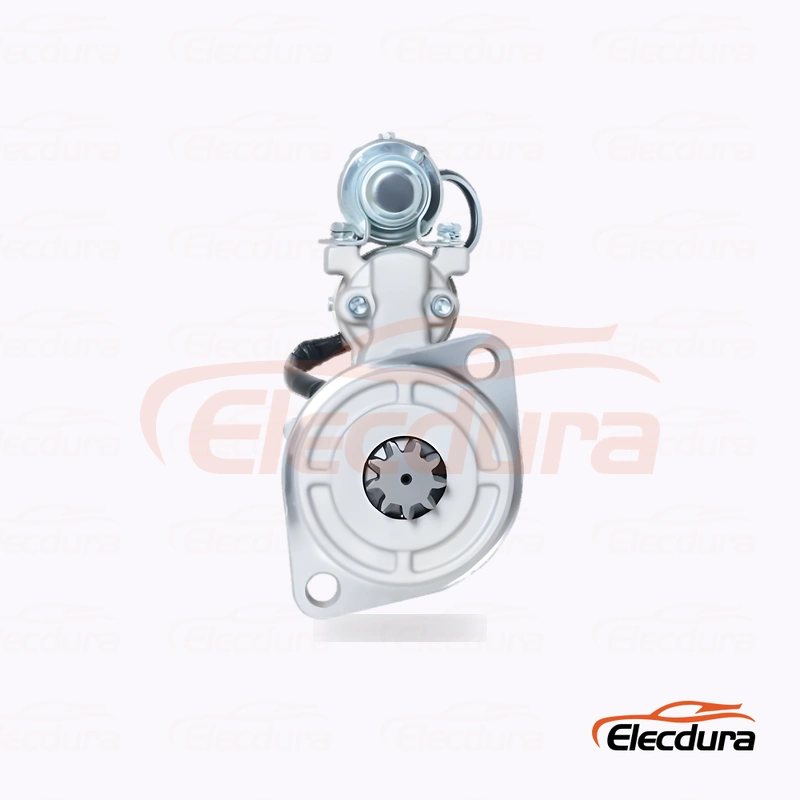

For application specialists checking version-defining data, use the gallery to compare the flange, 9T pinion and rear connections before approving the order. Keep module 3 with the tooth count. A changed mounting or terminal feature should be quoted as another starter version.

YANMAR 4TNV98L 24V 3.5kW 9T Wholesale Supply for Distributors and Importers

For sales teams planning a repeat order, Elecdura supplies YANMAR 4TNV98L 24V 3.5kW 9T for wholesale and distributor orders with a standard MOQ of 20 pcs, an indicative 7–15 day lead time after order confirmation and an 18-month warranty under agreed terms. Neutral packaging and private-label review are available for qualified programs.

For warehouse planners setting packaging requirements, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

YANMAR 4TNV98L 24V 3.5kW 9T Starter Motor Buyer FAQ

What should purchasing verify first for YANMAR 4TNV98L 24V 3.5kW 9T label and suffix before stock is assigned?

For technical buyers checking version-defining data, photograph the complete old-unit label for YANMAR 4TNV98L 24V 3.5kW 9T, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

What evidence best identifies Ø95 before an installation slot is booked?

For engine-parts specialists confirming electrical ratings, YANMAR 4TNV98L 24V 3.5kW 9T shows Ø95. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

What must be matched before quoting YANMAR 4TNV98L previously replaced starter before accepting a substitute?

For fleet-parts buyers checking repeat-order specifications, ask whether the starter removed from YANMAR 4TNV98L is original or an earlier replacement. If it has been substituted before, the visible unit may not represent the equipment's initial build. Use its label and geometry together with YANMAR 4TNV98L 24V 3.5kW 9T, 24V, 3.5kW and 9T before turning that history into a bulk stocking decision.

Which check should lead YANMAR 4TNV98L 24V 3.5kW 9T side-profile photograph before an installation slot is booked?

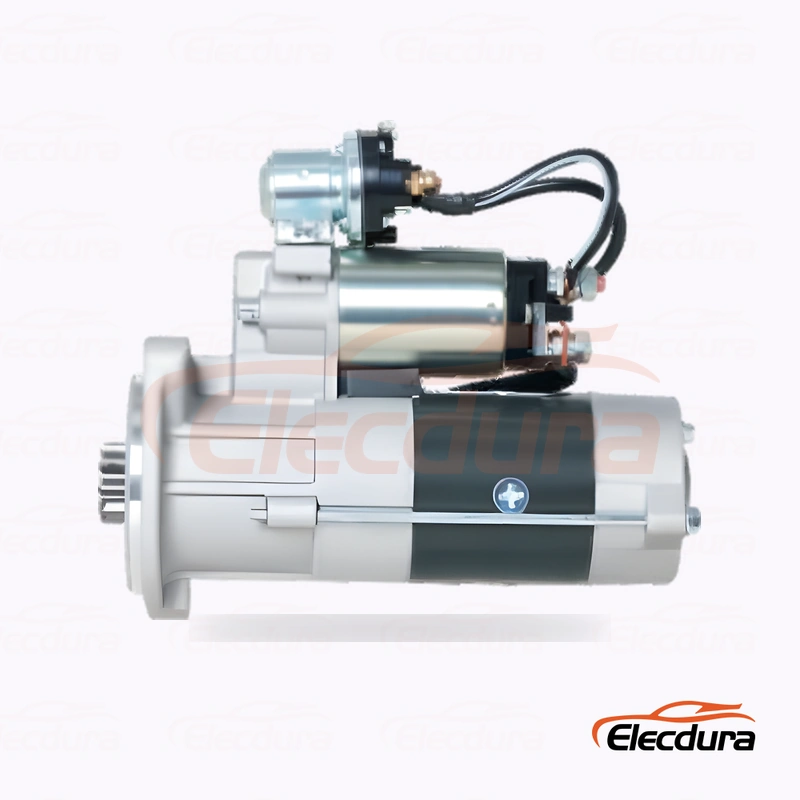

For technical sales teams matching the removed unit, the side profile of YANMAR 4TNV98L 24V 3.5kW 9T shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 20.5±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

What evidence best identifies flange clocking before an installation slot is booked?

For fitment reviewers checking application evidence, no separate angular callout is stated for YANMAR 4TNV98L 24V 3.5kW 9T. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

Which specification deserves priority for YANMAR 4TNV98L cranking condition before a purchase order is released?

For application specialists preparing an OE-based quote, before replacing the starter on YANMAR 4TNV98L, test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 24V, 3.5kW starter and make a fitment request easier to resolve.

What must be matched before quoting YANMAR 4TNV98L 24V 3.5kW 9T among Yanmar versions when confirming the quoted item?

For replacement-parts sellers separating similar housings, YANMAR 4TNV98L 24V 3.5kW 9T should remain separate from another Yanmar starter whenever voltage, output, tooth count, module, flange geometry or terminal position changes. For this line, retain 24V, 3.5kW and 9T together in the purchasing description. That specification bundle gives sales, warehouse and technical teams one consistent basis for reviewing alternatives.

Which specification deserves priority for YANMAR 4TNV98L 24V 3.5kW 9T rear-terminal photograph before stock is assigned?

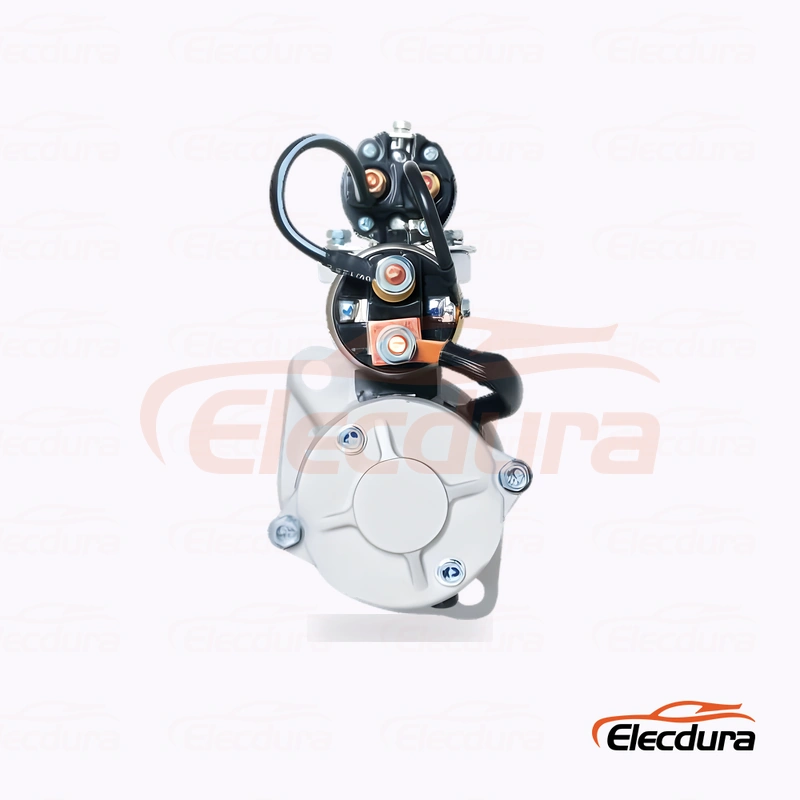

For service-parts networks evaluating a direct replacement, use the rear view of YANMAR 4TNV98L 24V 3.5kW 9T to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in YANMAR 4TNV98L. A correct drive end with an unusable terminal position is not a complete fitment match.

Request a Wholesale Quote for YANMAR 4TNV98L 24V 3.5kW 9T Agricultural Machinery Starter Motor

For importers planning replenishment, ask for a quote on YANMAR 4TNV98L 24V 3.5kW 9T with the full YANMAR 4TNV98L record, quantity and packaging plan. We will verify the requested 24V, 3.5kW and 9T configuration and return the relevant wholesale terms.
