129900-77010 Komatsu WA65-5 Starter Motor Wholesale

129900-77010 Starter Motor Fleet Replacement Supply for Komatsu WA65-5, Isuzu 4BC2 and Yanmar 4TNE94

129900-77010 supports Komatsu WA65-5, Isuzu 4BC2 and Yanmar 4TNE94 sourcing where buyers need a defined electrical and drive-end match. Its 12V, 2.5kW, 9T CW specification must remain linked to the supplier-defined 12V 2.5kW 9T module-3 configuration for a multi-application compact-equipment record; a visually related unit may belong on a different RFQ line.

Before comparing 129900-77010 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

129900-77010 Starter Motor Technical Data for Fleet Parts Buyers

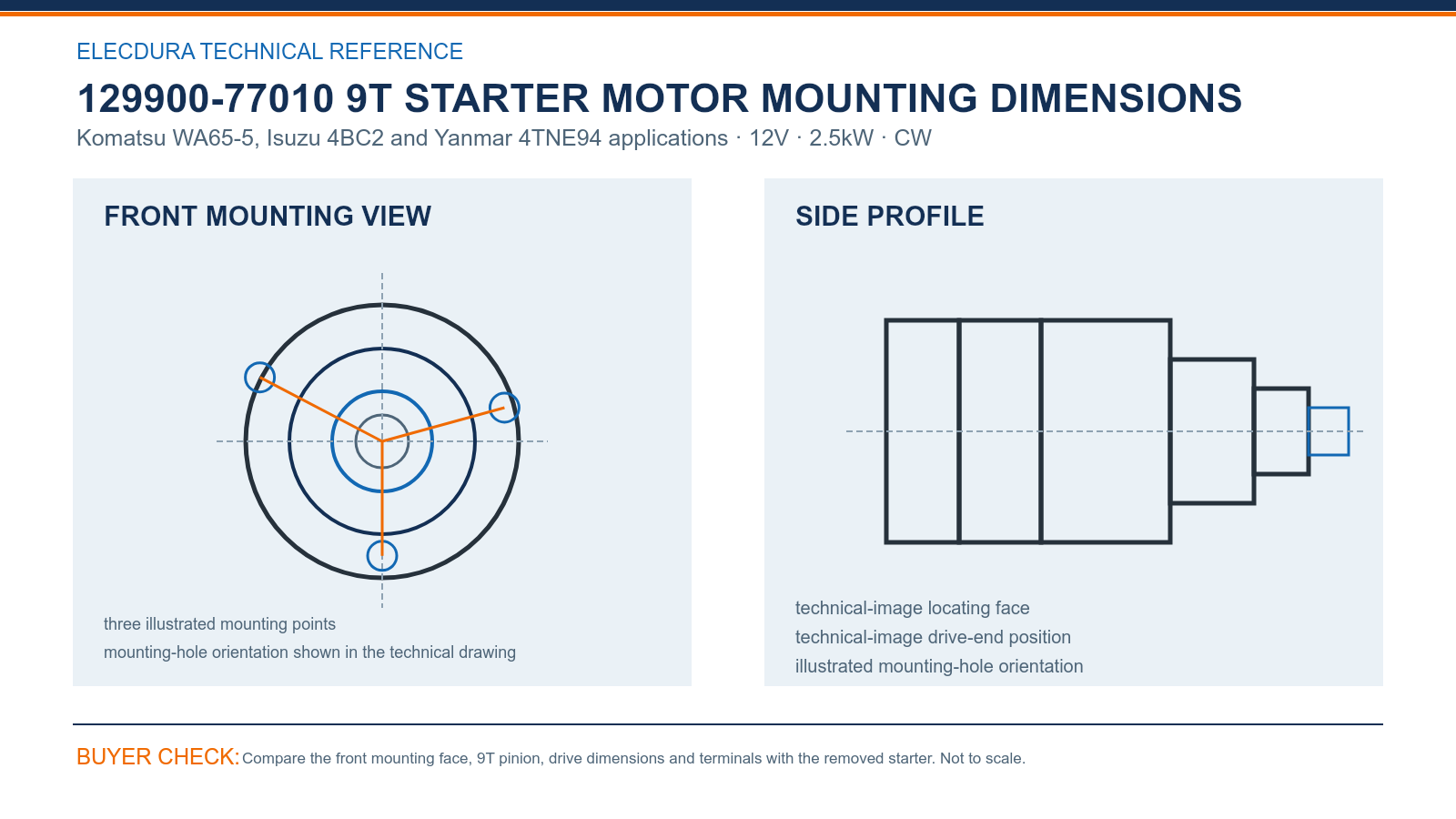

The 129900-77010 dimensional review starts at the mounting face: verify three illustrated mounting points, illustrated mounting-hole orientation and technical-image locating face. Then compare the technical-image drive-end position. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 129900-77010, electrical and mechanical identity must agree: 12V, 2.5kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

129900-77010 Starter Motor Cross-Reference Review for Fleet Buyers

The 129900-77010 cross-reference group includes 129900-77010, 129900-77040, S24-03, S24-13, S25-120, S13-204, S13-205. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 2.5kW, 9T, CW, mounting geometry and terminals.

If a mixed 129900-77010 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

129900-77010 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 129900-77010 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Komatsu WA65-5, Isuzu 4BC2 and Yanmar 4TNE94 population, recent consumption and transfer time between service locations. Keeping 129900-77010, the 9T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 129900-77010, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

129900-77010 Starter Motor Questions from Commercial Buyers

Before removing 129900-77010, what should the workshop test under load in a Komatsu WA65-5 workshop workshop?

Before fitting 129900-77010, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does 129900-77010 require a physical comparison for Komatsu applications during workshop sourcing?

For 129900-77010, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 2.5kW, 9T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with 129900-77010 identify an interchangeable unit in a Komatsu WA65-5 workshop sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use 129900-77010, 129900-77040, S24-03, S24-13, S25-120 to locate possible matches, then confirm 12V, 2.5kW, 9T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which mounting-face points distinguish the specified 129900-77010 version during a Komatsu WA65-5 workshop inspection?

Place the removed starter and 129900-77010 on the same mounting-face orientation. Compare technical-image locating face, illustrated mounting-hole orientation, the three illustrated mounting points and the technical-image drive-end position. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can 129900-77010 stock be separated by application risk in a Komatsu WA65-5 workshop program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 129900-77010 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving 129900-77010 during a Komatsu WA65-5 workshop receiving check?

For 129900-77010, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match three illustrated mounting points, technical-image locating face and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for 129900-77010 in a Komatsu WA65-5 workshop sourcing program?

Send the complete OE number, exact Komatsu WA65-5, Isuzu 4BC2 and Yanmar 4TNE94 details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 2.5kW 9T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review 129900-77010 after installation in a Komatsu WA65-5 workshop review?

Keep the carton or product traceability code and note when and where 129900-77010 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

129900-77010 Ask for Starter Motor Export Pricing

Prepare the 129900-77010 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
