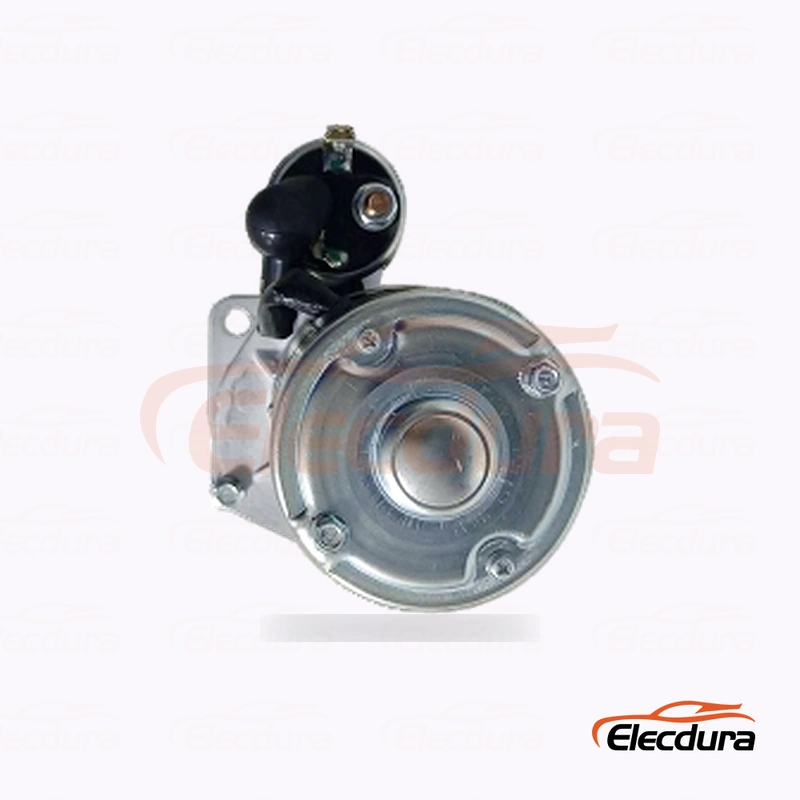

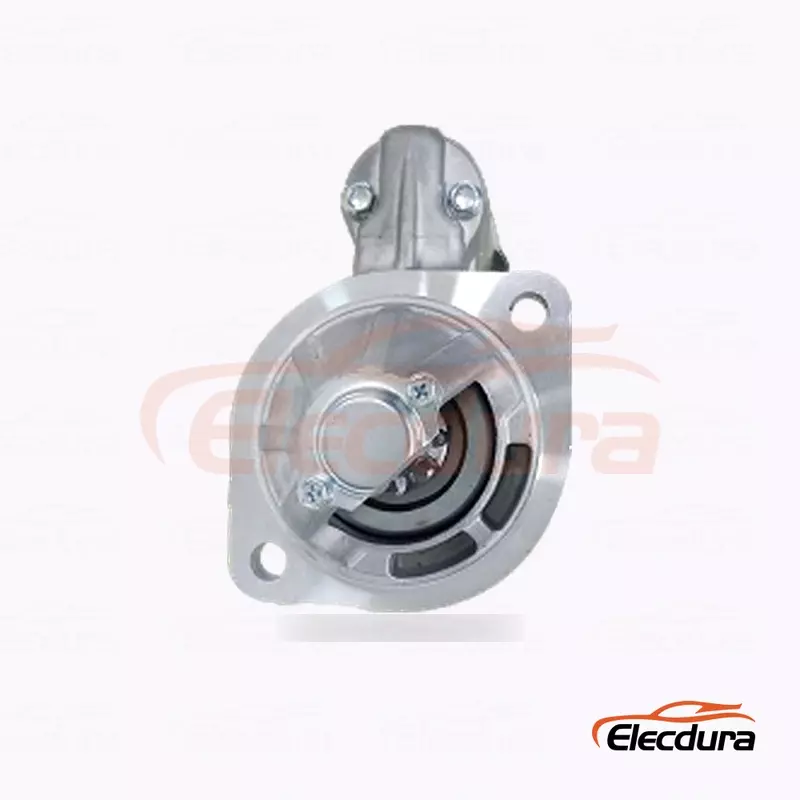

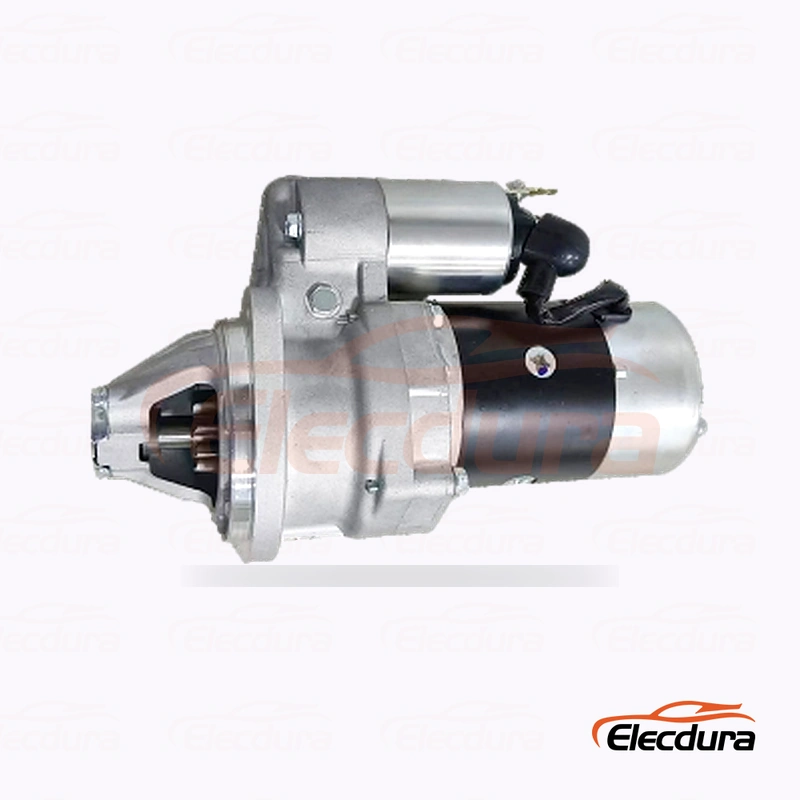

12995377010 Yanmar 4TNE98 Starter Motor 12V 3.0kW 9T

12995377010 Starter Motor for Compact construction and industrial-equipment starter programs Supply

12995377010 is cross-referenced with Hitachi S13-138 and S13-138A and is listed for Yanmar 4TNE98 equipment, with Komatsu WB140-2 references also appearing in the market. The supplied configuration is 12V, 3.0kW, 9-tooth and clockwise. Confirm the engine plate, flange and two-hole pattern before ordering.

Elecdura Starter Motor Supply Overview

12995377010 Starter Motor Specifications

Application and OE Cross-Reference Review for 12995377010

Yanmar 4TNE98 is repeatedly listed; some parts pages also map the number to Komatsu WB140-2 / 4D106 equipment. Confirm the actual engine and machine. Application data narrows the search; the complete OE number and physical starter remain the final fitment controls.

Before-Order Matching Checks for 12995377010

For Compact construction and industrial-equipment starter programs, confirm the old-unit label, machine or vehicle record, electrical rating, drive end, mounting face and terminals before releasing a purchase order. Keep any rating conflict or suffix difference visible in the approval file instead of hiding it in a generic product description.

Compact construction and industrial-equipment starter programs Receiving and Cost Control

Unit price is only one part of landed cost. A mixed rating, wrong pinion or unverified application can create returns, emergency freight and workshop downtime. Approve one traceable sample, record the critical identifiers and inspect incoming lots against the same baseline. Diagnose battery, cable, ground and ring-gear issues before condemning a replacement starter.

Wholesale Supply Information

12995377010 Starter Motor FAQ

Which cross-references should be checked for 12995377010?

Use 12995377010 or 129953-77010 as the primary identifier and compare S13-138, S13-138A, 12995377019 and DRS0795 where those numbers appear on the removed unit or approved source. Cross-reference numbers help locate the part, but the final decision still depends on the engine or machine record, mounting geometry, voltage, tooth count and terminal layout.

Which engines or machines are associated with this starter?

The strongest repeated application evidence is Yanmar 4TNE98, while other parts pages associate the same number with Komatsu WB140-2 using a 4D106 engine. These are not interchangeable application statements. Ask the buyer for the engine plate and machine model, then compare the old starter before quoting. Keep Yanmar and Komatsu application records separate in the distributor catalog.

What specifications define the supplied configuration?

The supplied record and independent starter pages identify a 12V, 3.0kW, 9-tooth clockwise unit. Public dimensions include a 95mm flange reference and a two-hole mounting arrangement on one replacement design. Because dimensions can vary by manufacturer, use those values as an approval baseline and compare the actual locating face, hole spacing, pinion position and rear terminals with the removed part.

Why can a correct number still produce a fitment dispute?

A number may be carried as an equivalent across several suppliers while the physical design, mounting clocking or intended machine differs. A unit that bolts up but uses the wrong pinion position or terminal orientation can fail in service. Require the full OE group, machine or engine data and clear photos before converting a 12995377010 inquiry into a repeat wholesale order.

How should incoming units be sampled?

Tie the receiving sample to the approved 12995377010 label and supplier drawing or photograph. Check 12V marking, 3.0kW rating, nine teeth, clockwise rotation, flange and two-hole pattern, terminal orientation, housing condition and packaging. Record the result by lot and quarantine any mixed S13-138 version until the difference is explained. This protects stock accuracy when Yanmar and Komatsu inquiries overlap.

Can S13-138A be treated as identical to S13-138?

It is a closely related Hitachi reference, but the suffix should not be ignored. Confirm whether the buyer's removed unit, mounting face, terminal arrangement and machine record support the suffix shown on the quotation. If a supplier proposes S13-138A as an equivalent, keep that equivalence documented and require sample approval before the full quantity is released.

What checks help distinguish starter failure from an engine issue?

Measure battery condition and cranking voltage, then check positive and ground voltage drop, control-circuit operation and ring-gear condition. A starter can appear weak when the electrical supply is restricted or the engine is mechanically hard to turn. Record the diagnostic evidence with the old part number, especially when a customer needs an urgent replacement for an excavator or compact machine.

What should be sent for a technical quotation?

Send the complete 12995377010 or S13-138 reference, Yanmar or Komatsu machine and engine model, quantity, destination and required packaging. Include photos of the nameplate, drive end, mounting face and terminals and state whether the order must match 95mm flange or two-hole geometry. This gives the supplier enough evidence to distinguish the application before price and lead time are confirmed.

Request a Quote for 12995377010 Starter Motors

Send the complete reference, application or engine data, old-unit photos, quantity, destination market and packaging or inspection requirements for a fitment-focused B2B quotation.
