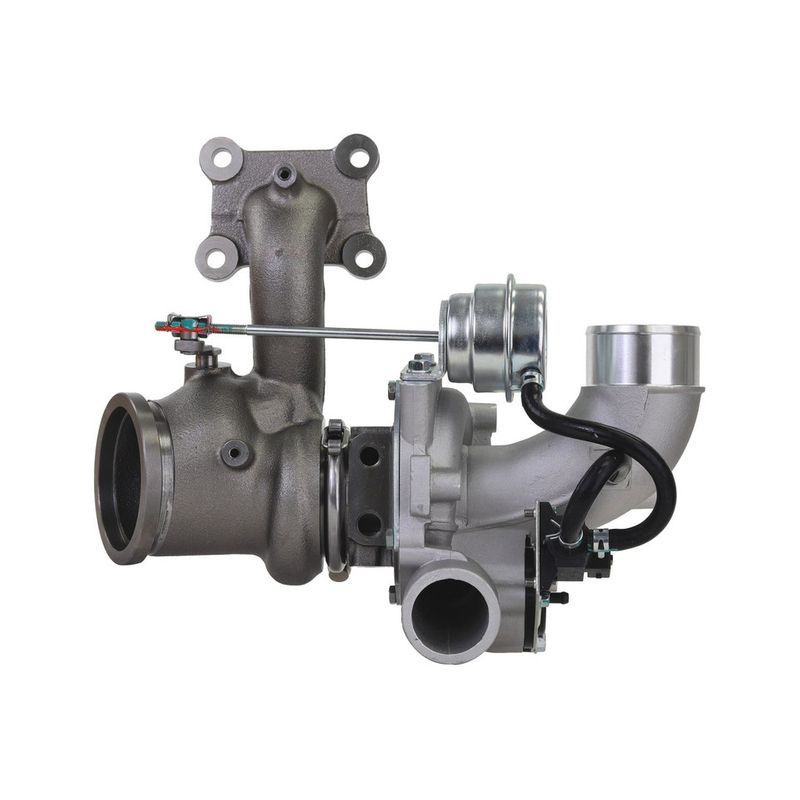

Key Benefits of the 2016 Ford Fusion 2.0L Turbocharger
Elecdurauto offers a high-performance replacement turbo for the 2016 Ford Fusion 2.0L EcoBoost, built to solve common failure points and outperform basic aftermarket alternatives. This unit (replaces OE part CJ5Z-6K682-F) is a smart choice for distributors, repair shops, and fleet managers who demand reliability.
One Part Number, Huge Coverage: This one turbo (replaces OE# CJ5Z-6K682-F) covers the most common Fords on the road: the Fusion, Escape, Edge, and Focus ST. It's a smart SKU that simplifies your inventory.
Bolt-On and Go: The actuator is pre-calibrated. Your technicians can install it and move on to the next job. No adjustments, no programming, no wasted time.
Stands Up to the Heat: The #1 failure on these turbos is a cracked manifold. We use a high-integrity casting and an Inconel turbine wheel specifically to prevent that failure. It's built to handle the heat of direct injection.
No Whine, No Vibrations: That whining noise customers complain about? It comes from a poorly balanced core. We VSR high-speed balance every single unit to eliminate that noise and protect the bearings for the long haul.
The Smart Business Choice: For distributors and shops, this is the right call. It's a dependable part that keeps customers happy, prevents comebacks, and protects your bottom line.
2016 Ford Fusion 2.0L Turbocharger Technical Specifications
| Specification | Description |
| Product Name | Turbocharger Assembly |
| Compatible Vehicles | 2012–2018 Ford Fusion, Escape, Edge, Focus ST, Taurus (2.0L EcoBoost) |
| Fitment Type | Direct Bolt-On Replacement |
| Condition | 100% Brand New |
| Dimensions (L × W × H) | 15.2 × 11.5 × 10.5 inches (estimated) |
| Weight | 19.8 lbs (9.0 kg) (estimated) |
| Actuator Included | Yes – Integrated Electronic Wastegate Actuator |
| Cooling Method | Liquid-cooled (Coolant) and Oil-cooled |
| Wastegate Type | Pneumatic Internal Wastegate |
| Gasket / Seal Kit Included | Yes (Mounting gaskets included) |
| Oil Supply Line Included | No |
| Exhaust Manifold Included | Yes – Integrated into Cylinder Head |
| Exhaust Brake Included | No |
| Temperature Sensor Included | No |
| Speed Sensor Included | No |
| Position Sensor Included | No |
| Geometry Type | Fixed Geometry |
| CHRA (Core Assembly) | Replaceable Cartridge (CHRA) |
| Compressor Wheel | Forged Aluminum – OEM Grade |
| Compressor Outlet Diameter | 1.89 in / 48 mm (estimated) |
| Balancing Method | VSR High-Speed & Thermal Balanced |
| Emission Compliance | Complies with vehicle emission standards (Euro V / Tier 4) |
Vehicle Compatibility with 2016 Ford Fusion 2.0L Turbocharger
| Year | Make | Model | Body & Trim | Engine & Transmission |
| 2018 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2017 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2017 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2016 | Ford | Escape | SE, Titanium | 2.0L L4 - Gas |
| 2016 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2016 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2016 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2016 | Lincoln | MKC | Black Label, Premiere, Reserve, Select | 2.0L L4 - Gas |
| 2016 | Lincoln | MKZ | Black Label, Base | 2.0L L4 - Gas |
| 2015 | Ford | Escape | SE, Titanium | 2.0L L4 - Gas |
| 2015 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2015 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2015 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2015 | Lincoln | MKC | Base, Black Label | 2.0L L4 - Gas |
| 2015 | Lincoln | MKZ | Base | 2.0L L4 - Gas |
| 2014 | Ford | Edge | Limited, SE, SEL | 2.0L L4 - Gas |
| 2014 | Ford | Escape | SE, Titanium | 2.0L L4 - Gas |
| 2014 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2014 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2014 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2014 | Lincoln | MKZ | Base | 2.0L L4 - Gas |
| 2013 | Ford | Edge | Limited, SE, SEL | 2.0L L4 - Gas |
| 2013 | Ford | Escape | SE, SEL, Titanium | 2.0L L4 - Gas |
| 2013 | Ford | Focus | ST | 2.0L L4 - Gas |
| 2013 | Ford | Fusion | SE, Titanium | 2.0L L4 - Gas |
| 2013 | Ford | Taurus | Limited, SE, SEL | 2.0L L4 - Gas |
| 2013 | Lincoln | MKZ | Base | 2.0L L4 - Gas |
| 2012 | Ford | Edge | Limited, SE, SEL | 2.0L L4 - Gas |
Engineered for Professionals: The 2016 Ford Fusion 2.0L Turbo
Our 2016 Ford Fusion 2.0L EcoBoost turbocharger is built to be a one-to-one replacement for OE part CJ5Z-6K682-F and the industry benchmark, 53039880462. We control the entire manufacturing line, from the integrity of the integrated manifold casting to the final high-speed VSR core balancing. For distributors and repair shops servicing the entire 2.0L platform—including the popular Escape and Edge—our process guarantees you deliver a turbo that fits right the first time, performs like original equipment, and eliminates costly comebacks.

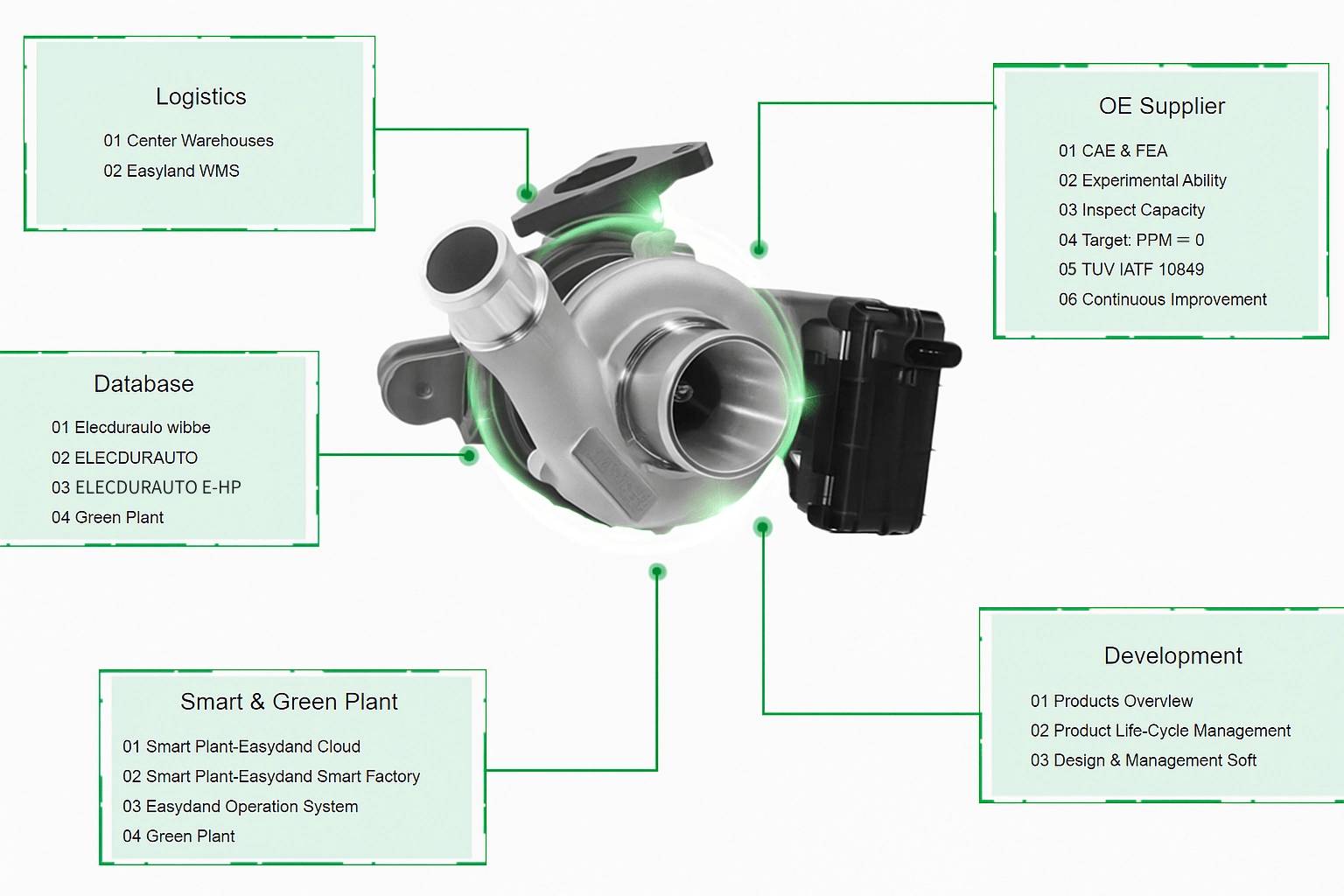

![OE-Level Support System Behind Every Turbocharger]()
2016 Ford Fusion 2.0L Turbocharger Production Workflow
Elecdurauto follows a fully integrated production process to ensure every turbocharger meets strict quality and performance standards. From raw material inspection and CNC machining to automated assembly and dynamic testing, each step is optimized for precision, consistency, and efficiency. This end-to-end system guarantees reliable output for both OEM replacement and aftermarket demand.
![Material Incoming Quality Control]()
Material Incoming Quality Control
![Precision CNC Machining Cluster]()
Precision CNC Machining Cluster
![Automated Material Loading Lathe (LU3000EX)]()
Automated Material Loading Lathe
![Three-Axis CMM Inspection (Xondex)]()
Three-Axis CMM Inspection
![In-Process Quality Monitoring]()
In-Process Quality Monitoring ![Automated Assembly Workstation (with QR Traceability)]()
Automated Assembly Workstation
![Functional Testing & Assembly Validation]()
Functional Testing & Assembly Validation
![Turbocharger Performance Test Bench]()
Turbocharger Performance Test Bench
OEM & Aftermarket Uses for 2016 Ford Fusion 2.0L Turbocharger
2016 Ford Fusion 2.0L Turbocharger Certifications & Industry Standards
![ISO 9001, ISO 14001, ISO 45001, IATF 16949 certified ignition coil manufacturer for OEM and aftermarket supply]()
Why Choose Elecdurauto for Your 2016 Ford Fusion 2.0L Turbocharger
Elecdurauto is more than a turbocharger supplier — we are a precision manufacturing partner trusted by global distributors, fleets, and aftermarket brands. Backed by world-class production capabilities, OEM-grade engineering, and a deep understanding of B2B demands, we deliver value far beyond the product.
1. World-Class Manufacturing Infrastructure
Over $45 million USD in total investment
Annual capacity: 1,000,000+ complete turbos and 2,000,000 CHRA units
Equipped with CNC machines and semi-automated lines from the US, UK, Germany, Japan, and Switzerland
Advanced R&D and testing center for turbochargers and core components
EMS 4.0 smart factory system with full digital integration (ERP, MES, PLM, CRM, SCM)
2. Precision. Speed. Flexibility.
Covers 500+ turbo models compatible with major OE brands
Supports small-batch, multi-spec orders with fast delivery (7–15 working days)
Maintains safety stock for fast-moving SKUs and urgent shipments
Flexible shipping: door-to-door by air, sea, or express (DHL, FedEx, Maersk)
3. Engineered for Performance & Durability
Turbochargers feature Inconel turbine wheels and forged aluminum compressors
Tested for thermal endurance (950°C–1100°C) and long-cycle durability
Designed to reduce emissions, increase torque, and improve fuel economy
Ideal for both automotive and marine applications with international-level quality
4. OEM-Standard Quality & Traceability
Manufactured to IATF 16949, ISO 9001, CE, RoHS certified standards
Strict QA at every step — from raw materials to final balance tests
Supports OEM & private label services (laser logo, QR traceability, custom packaging)
1-Year Unlimited Mileage Warranty & free QC reports included with every order
5. Customer-Driven R&D & Customization
100% customer-oriented design and reverse engineering services
Tailored development for special materials, designs, or performance upgrades
From full turbo assemblies to individual components — we are your one-stop turbo center
FAQs About the 2016 Ford Fusion 2.0L Turbocharger Replacement
1. Is this the right part for my 2016 Fusion?
This is the correct turbocharger for any 2016 Ford Fusion with the 2.0L EcoBoost engine. It is a direct replacement for OE number CJ5Z-6K682-F.
2. How do I know my turbo is bad?
You'll hear a high-pitched siren noise under boost, feel a significant lack of power, or see smoke. A P0299 code on your scanner is the final confirmation.
3. Is this a universal Ford turbo?
It's the go-to turbo for Ford's 2.0L platform, fitting the Escape, Edge, and Focus ST. It cross-references to 53039880462, making it one of the most versatile parts you can stock.
4. What's included with the purchase?
You get the full assembly: the turbo with its integrated manifold, a pre-calibrated actuator, and the necessary gaskets for a clean install.
5. How good is the warranty?
It's an 18-month, unlimited mileage warranty, backed by our strict quality control. Every unit is VSR balanced, and the proof is on the QC report in the box.
6. What's a realistic install time?
A professional technician should plan for 3-4 hours. It's a direct-fit part, but access is tight, so it takes time to do it right.
7. Can I tune the car with this turbo?
It's designed as a robust OE replacement. While it's not a performance upgrade, it can safely handle the increased pressure from a mild Stage 1 ECU tune.
8. What about B2B services?
We are built for B2B. We offer full support for distributors, including private labeling, custom packaging, and efficient logistics for global and domestic partners.
