65262017067A Daewoo DH370 Starter Motor Wholesale

65262017067A Starter Motor Fleet Replacement Supply for Daewoo DH370 excavator and Tata Daewoo Novus

65262017067A supports Daewoo DH370 excavator and Tata Daewoo Novus sourcing where buyers need a defined electrical and drive-end match. Its 24V, 7.0kW, 11T CW specification must remain linked to the 24V 7.0kW 11T module-3 starter represented by its own catalog product image; a visually related unit may belong on a different RFQ line.

Before comparing 65262017067A prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

65262017067A Starter Motor Technical Data for Fleet Parts Buyers

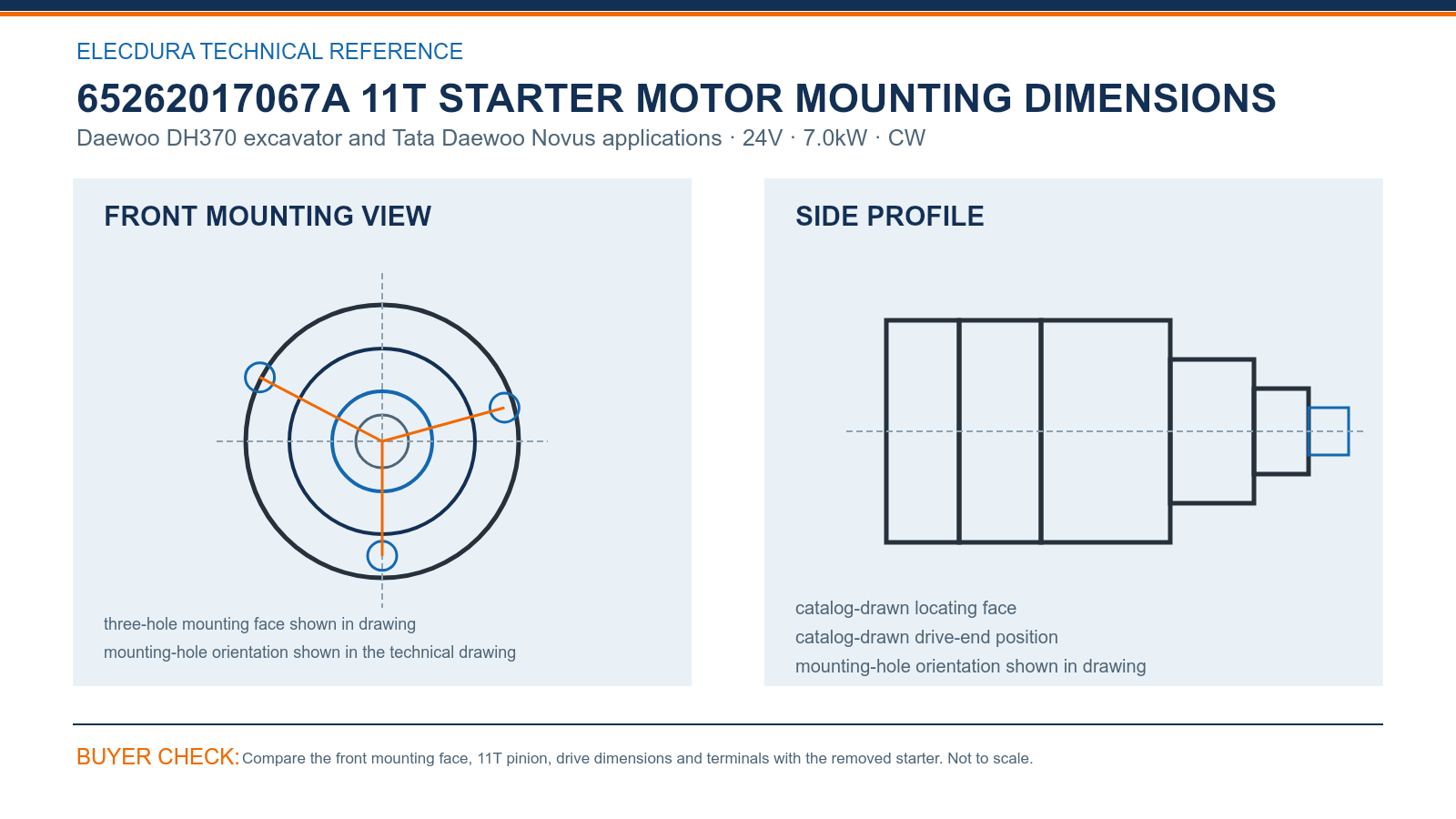

The 65262017067A dimensional review starts at the mounting face: verify three-hole mounting face shown in drawing, mounting-hole orientation shown in drawing and catalog-drawn locating face. Then compare the catalog-drawn drive-end position. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 65262017067A, electrical and mechanical identity must agree: 24V, 7.0kW, 11T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

65262017067A Starter Motor Cross-Reference Review for Fleet Buyers

The 65262017067A cross-reference group includes S1094, 116626, 30051600075A, 30051600075B, 65262017058A, 65262017062C, 65262017067. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 7.0kW, 11T, CW, mounting geometry and terminals.

If a mixed 65262017067A enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

65262017067A Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 65262017067A can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Daewoo DH370 excavator and Tata Daewoo Novus population, recent consumption and transfer time between service locations. Keeping 65262017067A, the 11T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 65262017067A, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

65262017067A Starter Motor Questions from Commercial Buyers

Before removing 65262017067A, what should the workshop test under load in a Daewoo DH370 workshop workshop?

Before fitting 65262017067A, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does 65262017067A require a physical comparison for Daewoo applications during workshop sourcing?

For 65262017067A, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 7.0kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with 65262017067A identify an interchangeable unit in a Daewoo DH370 workshop sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S1094, 116626, 30051600075A, 30051600075B, 65262017058A to locate possible matches, then confirm 24V, 7.0kW, 11T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which mounting-face points distinguish the specified 65262017067A version during a Daewoo DH370 workshop inspection?

Place the removed starter and 65262017067A on the same mounting-face orientation. Compare catalog-drawn locating face, mounting-hole orientation shown in drawing, the three-hole mounting face shown in drawing and the catalog-drawn drive-end position. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can 65262017067A stock be separated by application risk in a Daewoo DH370 workshop program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 65262017067A usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving 65262017067A during a Daewoo DH370 workshop receiving check?

For 65262017067A, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match three-hole mounting face shown in drawing, catalog-drawn locating face and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for 65262017067A in a Daewoo DH370 workshop sourcing program?

Send the complete OE number, exact Daewoo DH370 excavator and Tata Daewoo Novus details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 7.0kW 11T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review 65262017067A after installation in a Daewoo DH370 workshop review?

Keep the carton or product traceability code and note when and where 65262017067A was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

65262017067A Ask for Starter Motor Export Pricing

Prepare the 65262017067A enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
