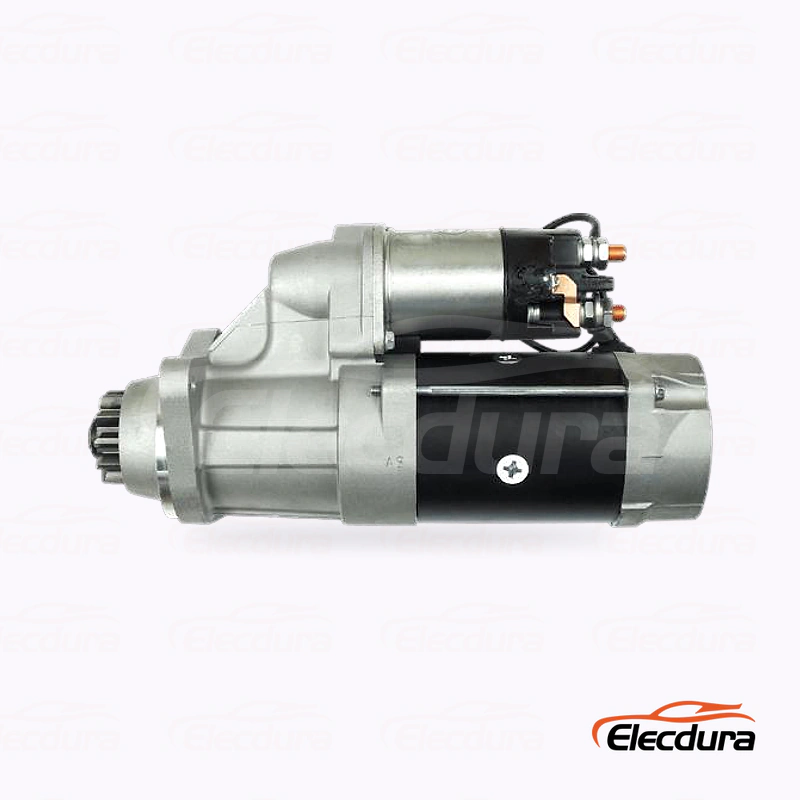

S9114 Daewoo Solar 340 Starter Motor Wholesale

S9114 Starter Motor Wholesale Application Support for Daewoo Solar 340 and 215-9 excavators

For Daewoo Solar 340 and 215-9 excavators, S9114 gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 6.0kW, 11T and CW, with particular attention to 24V 6.0kW 11T module-3 drive for the Solar 340 and 215-9 catalog record, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the S9114 enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

S9114 Starter Motor Mounting Reference for Commercial Buyers

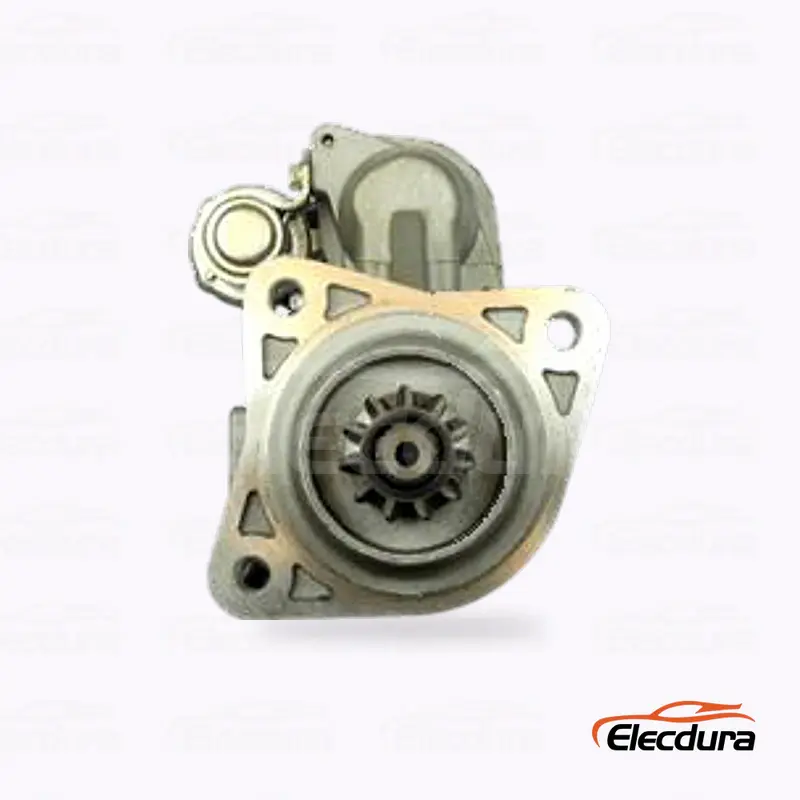

Check the S9114 drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø11 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 48 mm distance to drive gear. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The S9114 drive-end decision is completed by 11T, module 3 and CW, together with 24V and 6.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S9114 Starter Motor Cross-Reference Boundary for Importers

The S9114 cross-reference group includes S9114, 262017074C, 652017070, 652017070D, 652017124, 65262017070, 65262017070D. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 6.0kW, 11T, CW, mounting geometry and terminals.

If a mixed S9114 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

S9114 Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare S9114 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified S9114 drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A S9114 order should still be released against the complete OE number, Daewoo Solar 340 and 215-9 excavators details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

S9114 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming S9114 during a Daewoo Solar 340 service-network inspection?

Place the removed starter and S9114 on the same mounting-face orientation. Compare Ø89 locating diameter, Ø127 mounting-hole circle, the 3 × Ø11 mounting holes and the 48 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

When does a cross-reference related to S9114 need a separate quotation in a Daewoo Solar 340 service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S9114 group is acceptable only when 24V, 6.0kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why does S9114 require a physical comparison for Daewoo applications during service-network sourcing?

For S9114, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 6.0kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Which cranking-circuit tests should precede replacement of S9114 in a Daewoo Solar 340 service-network workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S9114. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which operating factors should guide a fleet's S9114 reserve quantity in a Daewoo Solar 340 service-network program?

Review workshop consumption by the stated Daewoo Solar 340 and 215-9 excavators population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical S9114 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for S9114 during a Daewoo Solar 340 service-network receiving check?

Use a first-lot sample to confirm S9114, 24V, 6.0kW, 11T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S9114 without delay in a Daewoo Solar 340 service-network sourcing program?

List S9114 together with the supported equipment record, 24V, 6.0kW, 11T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S9114 in a Daewoo Solar 340 service-network review?

For S9114, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S9114 Email for Starter Motor B2B Pricing

A complete RFQ for S9114 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 6.0kW 11T CW starter, MOQ, packaging, warranty and shipping choices.
