1201626 Doosan DL06 Starter Motor Wholesale Supply

1201626 Starter Motor Wholesale Application Support for Doosan DL06 engine

For Doosan DL06 engine, 1201626 gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 5.5kW, 13T and CW, with particular attention to 24V 5.5kW 13T module-3 unit with a 45 mm drive-end distance for the 1201626 record, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the 1201626 enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

1201626 Starter Motor Mounting Reference for Commercial Buyers

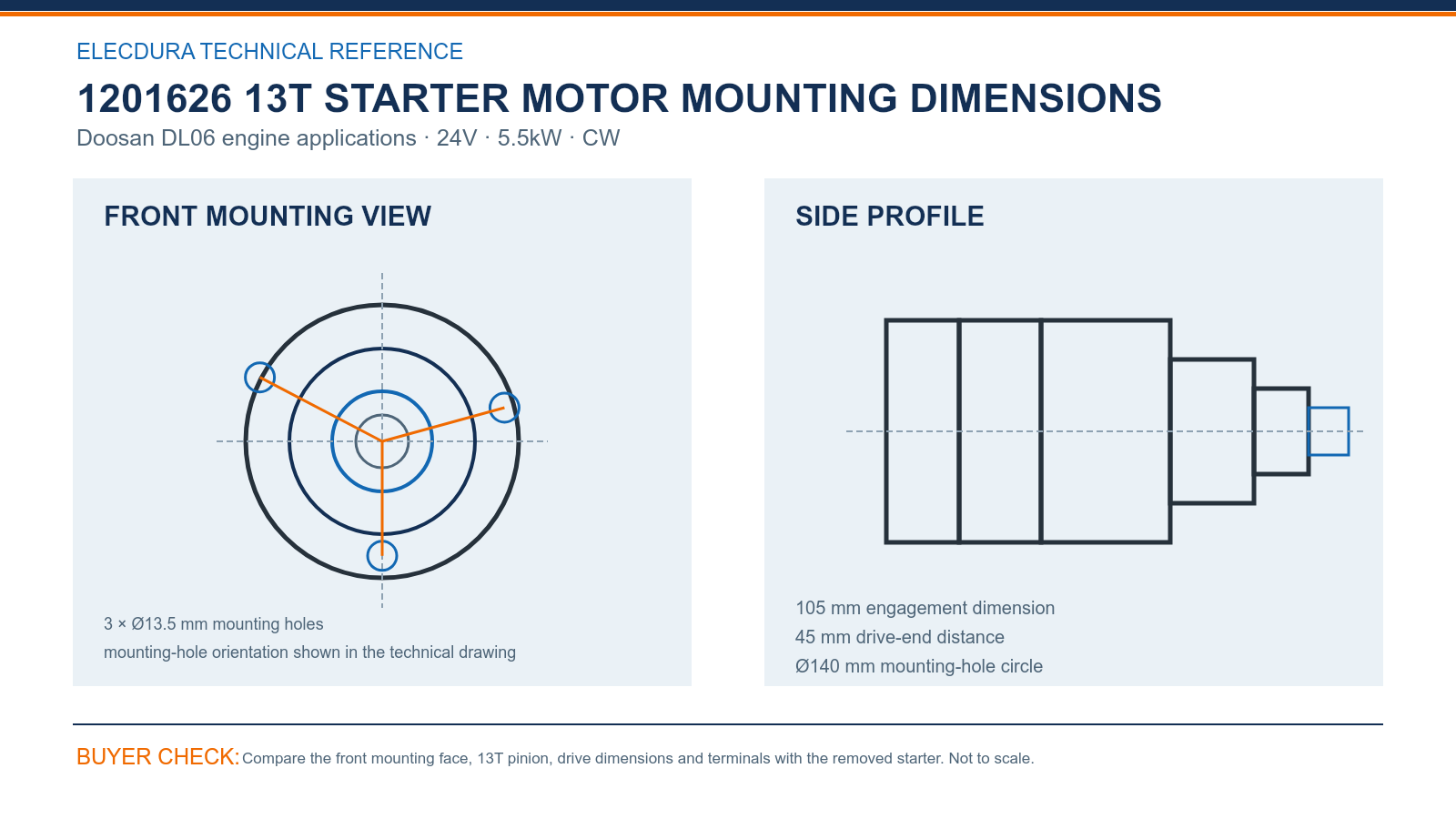

Check the 1201626 drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø13.5 mm mounting holes, 105 mm engagement dimension, Ø140 mm mounting-hole circle and 45 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The 1201626 drive-end decision is completed by 13T, module 3 and CW, together with 24V and 5.5kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

1201626 Starter Motor Cross-Reference Boundary for Importers

The 1201626 cross-reference group includes 1201626, S000V201626, 30051600039A, S0001201626. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 5.5kW, 13T, CW, mounting geometry and terminals.

If a mixed 1201626 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

1201626 Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare 1201626 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified 1201626 drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A 1201626 order should still be released against the complete OE number, Doosan DL06 engine details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

1201626 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving 1201626 during a Doosan DL06 service-network receiving check for the 45 mm Doosan drive-end variant?

For 1201626, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø13.5 mm mounting holes, 105 mm engagement dimension and the specified 13T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What fitment evidence makes a quotation for 1201626 reliable during service-network sourcing for the 45 mm Doosan drive-end variant?

Use the complete removed-unit number and exact Doosan DL06 engine record. Compare the 13T pinion, 3 × Ø13.5 mm mounting holes, 105 mm engagement dimension and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

How should a mixed-reference enquiry for 1201626 be prepared in a Doosan DL06 service-network sourcing program for the 45 mm Doosan drive-end variant?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 1201626 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Before removing 1201626, what should the workshop test under load in a Doosan DL06 service-network workshop for the 45 mm Doosan drive-end variant?

Before fitting 1201626, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for 1201626 during a Doosan DL06 service-network inspection for the 45 mm Doosan drive-end variant?

For 1201626, use a straight front view to compare the 3 × Ø13.5 mm mounting holes and Ø140 mm mounting-hole circle; use the side view for 105 mm engagement dimension and 45 mm drive-end distance. Complete the check with 13T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How should Doosan distributors plan stock for 1201626 in a Doosan DL06 service-network program for the 45 mm Doosan drive-end variant?

Keep the 45 mm version separate in stock from the related 47 mm catalog product. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for 1201626 in a Doosan DL06 service-network sourcing program for the 45 mm Doosan drive-end variant?

A useful RFQ states 1201626, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving 1201626 in a Doosan DL06 service-network review for the 45 mm Doosan drive-end variant?

For a service review of 1201626, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

1201626 Email for Starter Motor B2B Pricing

A complete RFQ for 1201626 should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 5.5kW 13T CW starter, MOQ, packaging, warranty and shipping choices.
