S1095 Doosan DX500 Starter Motor Wholesale Supply

S1095 Starter Motor B2B Fitment Guide for Doosan DX500 and Daewoo Solar S470LC-V excavators

Large-excavator parts distributors, mine operators and field-service contractors can use S1095 as the commercial identity for the starter required in Doosan DX500 and Daewoo Solar S470LC-V excavators. The order should preserve the 11T pinion and the supplier-defined 24V 7.5kW 11T module-4.233 unit for DX500 and S470LC-V equipment, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full S1095 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

S1095 Starter Motor Drive-End Drawing for Aftermarket Distributors

For S1095 first-lot sampling, place the old and new starters in the same front-facing position. Check three-hole mounting face shown in drawing, catalog-specified locating face, mounting-hole orientation shown in drawing and catalog-specified drive-end position. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S1095 mounting check, verify 24V, 7.5kW, 11T and CW with module 4.233. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S1095 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S1095, UD02094S, 19080035, 8200589, DRS0975N, 300516-00020, 300516-00020A can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 7.5kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

S1095 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S1095, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S1095 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved S1095 configuration remains defined by 24V, 7.5kW, 11T, CW, mounting geometry and terminals, which should be retained in the purchase record.

S1095 Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S1095 during a Doosan DX500 dealer receiving check?

For S1095, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match three-hole mounting face shown in drawing, catalog-specified locating face and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What workshop readings are useful when diagnosing a starting complaint involving S1095 in a Doosan DX500 dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S1095. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How can an importer avoid mixing S1095 with a similar drive-end version during dealer sourcing?

For S1095, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 11T, mounting-hole orientation shown in drawing, catalog-specified locating face and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

When does a cross-reference related to S1095 need a separate quotation in a Doosan DX500 dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S1095 group is acceptable only when 24V, 7.5kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

What physical controls belong on a first-lot check for S1095 during a Doosan DX500 dealer inspection?

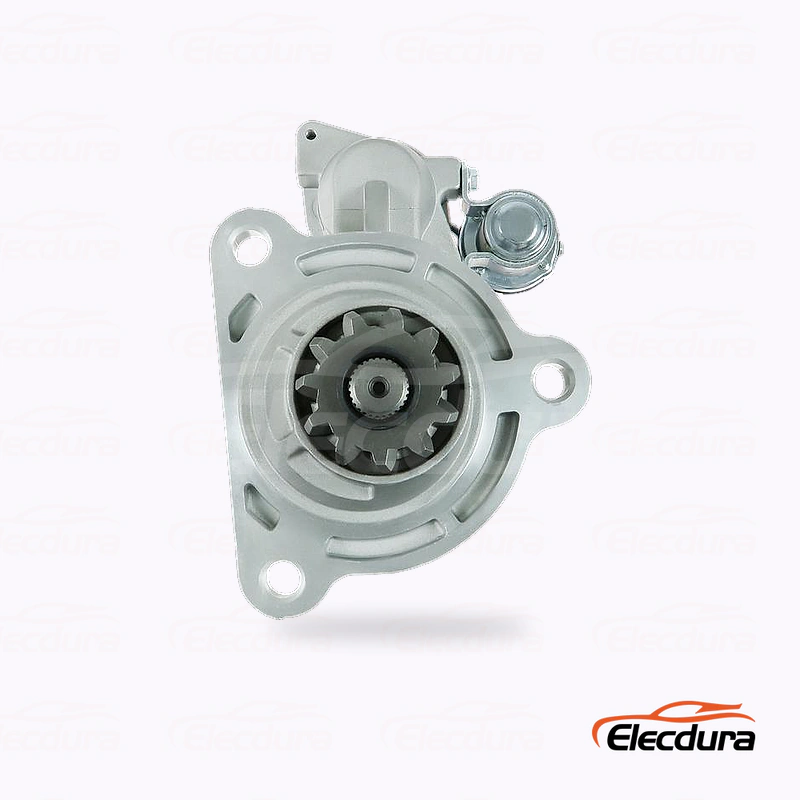

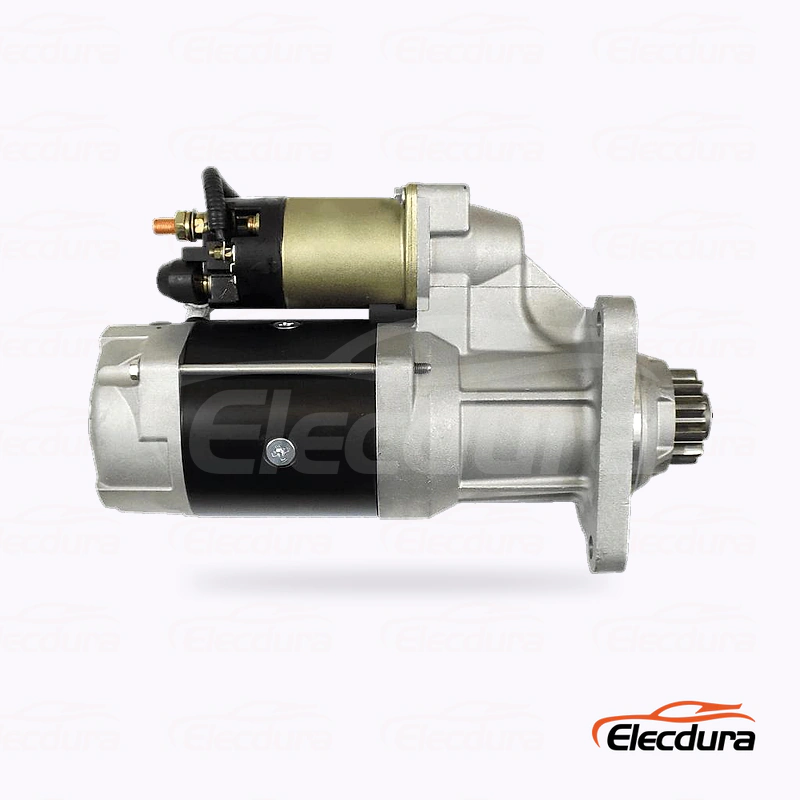

For S1095, use a straight front view to compare the three-hole mounting face shown in drawing and mounting-hole orientation shown in drawing; use the side view for catalog-specified locating face and catalog-specified drive-end position. Complete the check with 11T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How should Doosan distributors plan stock for S1095 in a Doosan DX500 dealer program?

Set critical-spare quantities from site remoteness and excavator utilization, with the accepted sample retained. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S1095 in a Doosan DX500 dealer sourcing program?

A useful RFQ states S1095, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S1095 in a Doosan DX500 dealer review?

For a service review of S1095, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S1095 Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with S1095, the supported Doosan DX500 and Daewoo Solar S470LC-V excavators record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 7.5kW, 11T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
