129608-77010 Yanmar 3JH3 Case 12V 1.4kW 11T Starter Motor Wholesale

129608-77010 Yanmar 3JH3 Starter for Marine and Equipment Distributors

A marine engine dealer and a Case equipment branch may search the same number for different reasons. Recording the 3JH3 or host machine, duty environment and replacement timing beside 129608-77010 lets one product line serve both channels without blending their demand or service expectations.

The 1.4kW output and 11T module-2.54 drive distinguish this unit from heavier Yanmar starters. Confirm the two Ø13 holes, Ø120 face, Ø95 locating reference, 45° upper orientation, and 20 mm and 33 mm side positions before purchasing for a vessel or compact machine.

129608-77010 1.4kW Starter Motor Data with 45-Degree Mounting View

For product and bin descriptions, use 12V, 1.4kW, 11T, module 2.54 and clockwise rotation together. This complete set helps a distributor prevent a 2.5kW Yanmar unit from being treated as an acceptable substitute simply because several engine references overlap.

129608-77010 Yanmar 3JH3 Starter Dimensions for Equipment Buyers — compare the drawing with the removed starter before placing a volume order.

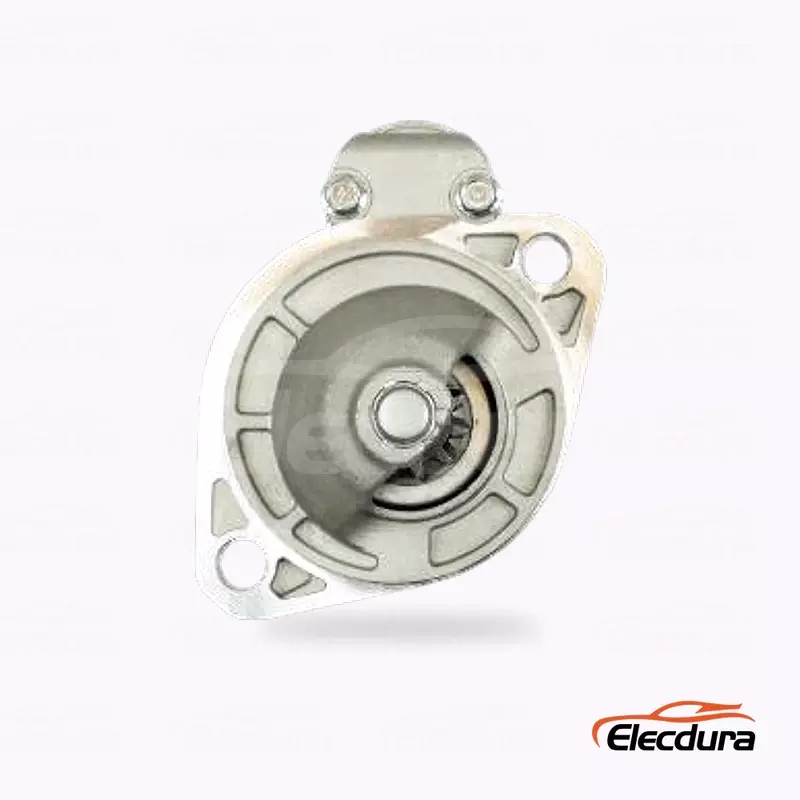

Center the removed starter in the front photograph so the 45° mounting orientation and two Ø13 holes can be judged. A side image should include the Ø95 locating surface, 20 mm pinion position and 33 mm nose-to-face reference, with both terminals unobstructed.

129608-77010 Reference Matching Across Yanmar and Case Enquiries

129608-77010, 129698-77010 and 129242-77010 form the main Yanmar number group. S114-815, S114-817 and 18219 help rotating-electrical searches, while the full engine or Case machine information keeps the quotation tied to the buyer’s intended installation.

Marine buyers should state vessel and engine use, while compact-equipment buyers should provide machine model and serial. Keeping these channels separate supports packing, delivery and after-sales discussions even when the same confirmed starter is sourced through one wholesale purchase.

129608-77010 Starter Supply for Marine and Compact Equipment Channels

For marine destinations, request extra terminal and moisture protection; for equipment branches, prioritize impact-resistant packing and clear outer labels. Sampled incoming units should match the 1.4kW label, eleven-tooth drive, two-hole face and accepted terminal views.

Elecdura’s production video presents starter assembly and electrical testing. It helps marine and compact-equipment buyers evaluate supply capability while they specify sample checks, carton protection and delivery schedules suited to their own distribution channel.

129608-77010 Yanmar 3JH3 Starter FAQs for B2B Buyers

How should a marine dealer describe a 129608-77010 request?

State the Yanmar 3JH3 engine variant, vessel information, complete 129608-77010 or S114 marking and the old starter’s label. Add clean photographs of the drive end and terminals. The selected unit is 12V 1.4kW 11T, so the request should remain separate from heavier Yanmar starters used in agricultural or construction equipment.

What should a Case equipment buyer add to a 129608-77010 enquiry?

Include the Case machine model and serial, engine identification, operating environment and every readable starter number. Send mounting-face, pinion and terminal views from the removed unit. This gives the supplier enough context to address the compact-equipment application while checking the same 1.4kW eleven-tooth product used in the selected Yanmar 3JH3 definition.

Why does the 45-degree mounting reference matter for 129608-77010?

The two-hole drive end includes a 45° orientation reference, an Ø120 face, Ø95 locating diameter, 33 mm nose-to-face and 20 mm pinion-side value. Compare the old flange square to the camera. A motor can look correct from the side yet place the solenoid or mounting ears incorrectly when those references do not match.

How can buyers use S114-815 and S114-817 with 129608-77010?

Keep each Hitachi number complete, including A suffixes, and pair it with 129608-77010 rather than replacing the Yanmar reference. The combined number set improves supplier search. Final comparison should still use the 12V 1.4kW 11T rating, two-hole geometry and terminal position because related S114 starters can serve different engine packages.

What packing is appropriate for 129608-77010 marine-channel stock?

Protect the pinion, nose and electrical studs, use a clean moisture-resistant inner barrier and stop the starter moving inside the carton. Mark the full part number and 1.4kW rating outside. Marine distributors should store cartons in a dry location and inspect sample packaging before sending units to coastal dealers or vessel service workshops.

When should a distributor hold 129608-77010 as separate stock?

Separate stock is useful when the business serves Yanmar marine engines or confirmed Case applications and repeatedly receives the same 1.4kW eleven-tooth demand. Track usage by channel, not only by OE number. This avoids consuming a small marine reserve for an unrelated compact-equipment request and helps set different reorder points for coastal and inland branches.

Which circuit checks are useful before replacing a 129608-77010 starter?

Measure battery condition, voltage at the starter during cranking, positive and ground-side drop, solenoid signal and connection tightness. Inspect the ring gear if engagement is noisy. Record the results with engine information. Marine installations also deserve attention to corrosion and cable condition, which can produce slow cranking even when the starter itself is serviceable.

What information supports pricing for 129608-77010?

Send the Yanmar engine or Case machine details, all 129608 and S114 numbers, 12V 1.4kW label, straight flange, pinion and terminal images, purchase quantity, destination and delivery deadline. For marine orders, note packing and moisture-resistant packing expectations. Elecdura can then discuss the product configuration, volume pricing, sample arrangement and lead time in one reply.

Ask for 129608-77010 Yanmar Starter Motor Wholesale Pricing

Send the Yanmar 3JH3 engine or Case machine details, complete 129608-77010 or S114 marking, rating label, centered mounting-face, pinion and terminal photographs, quantity, destination and packing request to info@elecdurauto.com. Elecdura will compare the 1.4kW product and reply with wholesale pricing and lead time.
