129953-77010 Yanmar 4TNE98 12V 2.8kW 9T Starter Motor Wholesale

129953-77010 Yanmar 4TNE98 Starter for Excavator Parts Distributors

A stopped excavator creates a different purchasing pressure from planned engine overhaul stock. State whether 129953-77010 is for a Yanmar 4TNE98 engine, Komatsu S4D106 machine and an urgent jobsite or warehouse reserve so the quotation can address both product and delivery need.

This 129953-77010 product is specified at 2.8kW. Confirm the 9T module-3 drive, two Ø13.5 holes, Ø120 face, Ø95 locating reference, 30° orientation and 21 mm pinion-side position before allocating the starter to a Yanmar 4TNE98 or Komatsu S4D106 order.

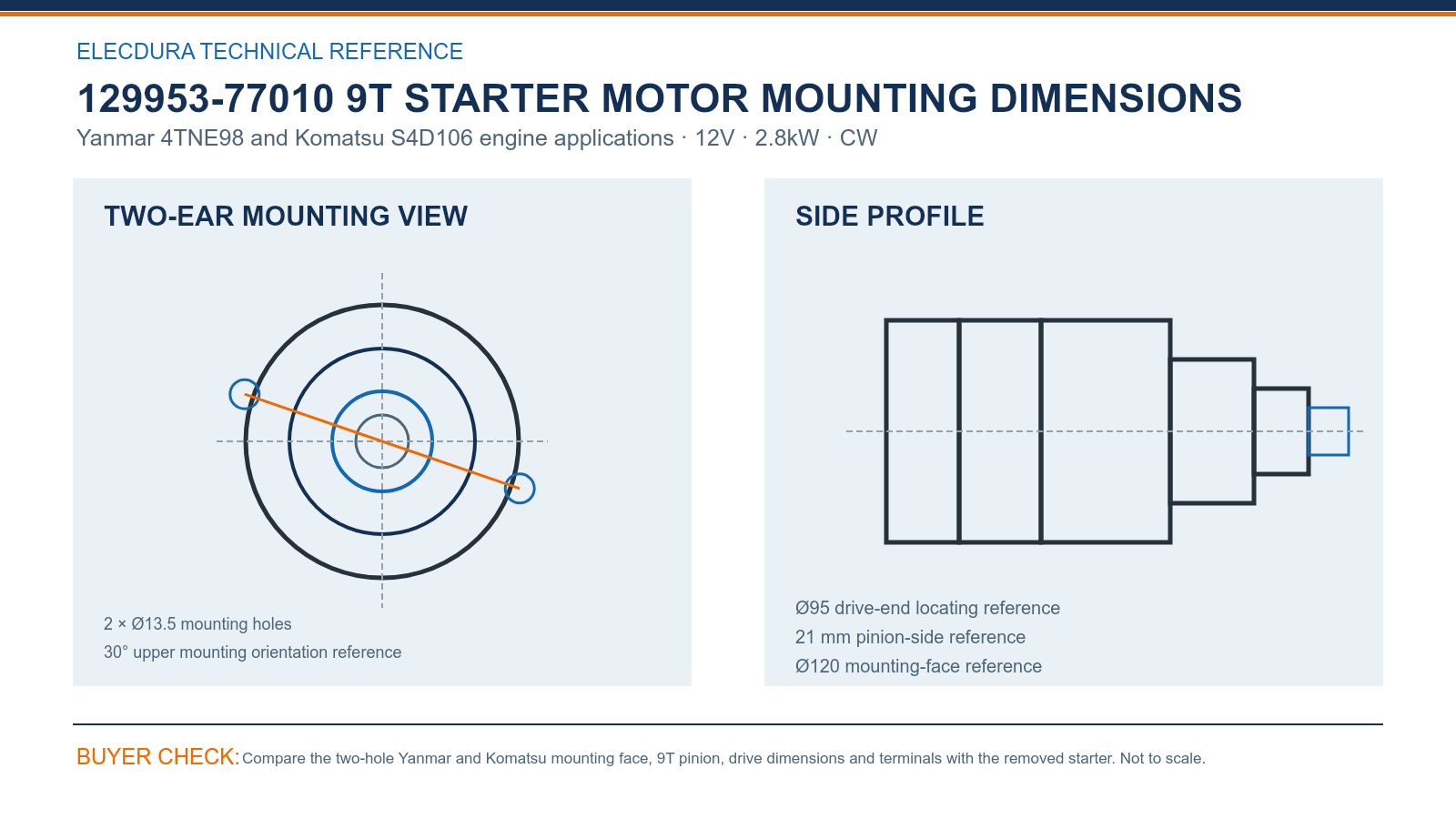

129953-77010 2.8kW Starter Motor Data and 30-Degree Mounting Drawing

The complete purchasing definition is 12V, 2.8kW, 9T, module 3 and clockwise rotation. Keeping the output together with the drive data gives parts counters a stable identity and prevents a broader Yanmar number search from changing the product being quoted.

129953-77010 Yanmar 4TNE98 Starter Mounting Dimensions — compare the drawing with the removed starter before placing a volume order.

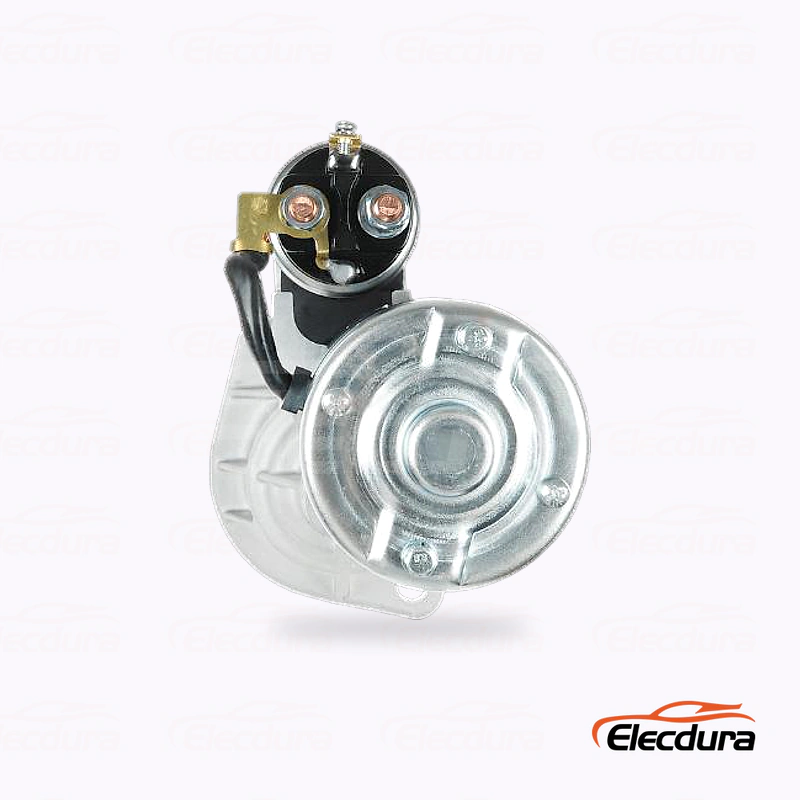

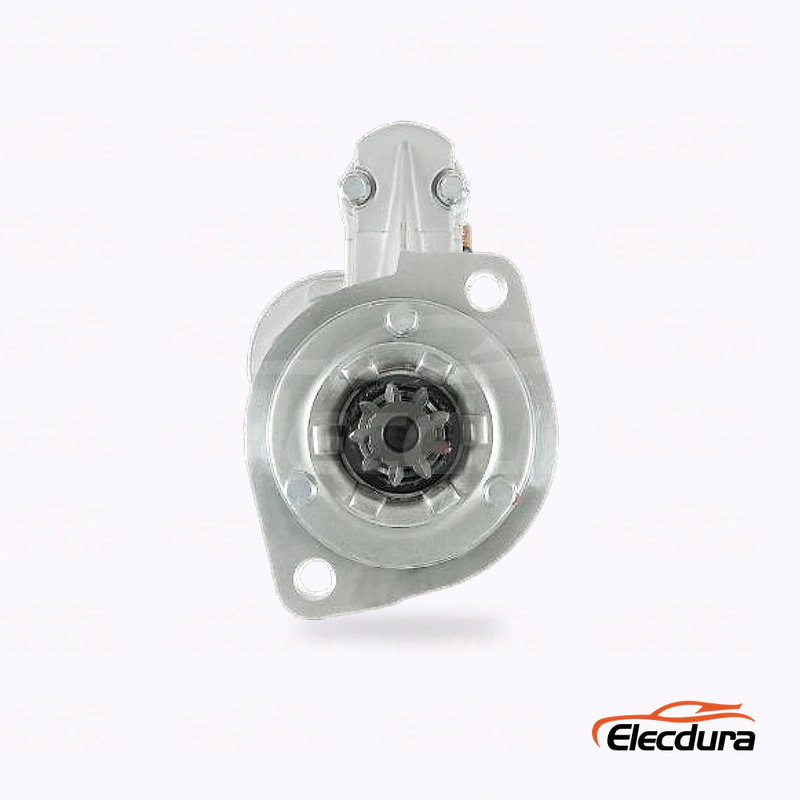

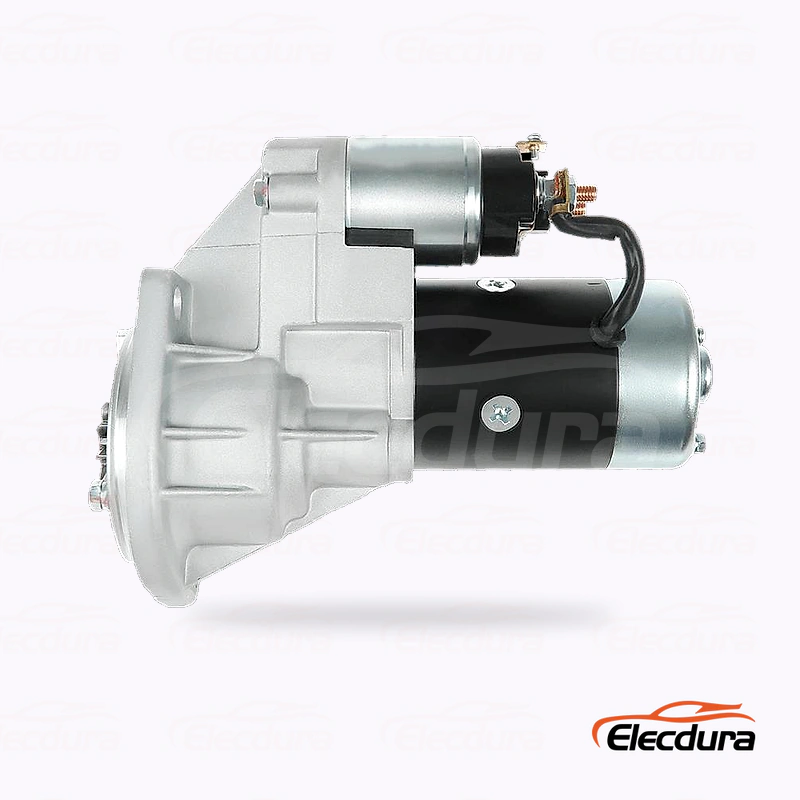

Use a centered flange photograph to compare the 30° upper orientation and both Ø13.5 holes. The side view should show the Ø95 locating surface and 21 mm pinion position, while the terminal view confirms whether cables will reach without rerouting.

129953-77010 and S13-138 Matching for Komatsu Engine Buyers

129953-77010 and 129953-77019 are the main Yanmar numbers, with S13-138, S13-138A, 19694N, 112672 and 116144 supporting searches. Keep 4TNE98 or S4D106 on the same line so cross references remain tied to the intended engine installation.

A Komatsu branch may use the machine model and serial, while an engine dealer may lead with 4TNE98 build details. Both routes are useful when they end with the same 2.8kW module-3 drive and measured two-hole face, allowing purchasing to consolidate a confirmed item.

129953-77010 Starter Stock Planning for Excavator Service Territories

Remote service territories benefit from cartons marked with 129953-77010, 2.8kW and 9T. Sample the first incoming lot for pinion, housing, locating face and terminals, then position emergency reserve according to machine count, distance and normal replenishment lead time.

Elecdura’s video introduces starter assembly and electrical testing for B2B supply. Excavator-parts buyers can use it when discussing first-lot inspection, label content, packing strength and staged delivery for the selected 129953-77010 product.

129953-77010 Yanmar and Komatsu Starter Motor FAQs

How should an excavator-parts buyer define 129953-77010?

Use the Yanmar 4TNE98 or Komatsu S4D106 engine information, machine model and complete old-starter marking. Add the selected 12V 2.8kW 9T rating plus flange, pinion and terminal photographs. This gives an excavator supplier a product-specific basis for quotation instead of relying on a general Yanmar or Komatsu engine description during an urgent no-start repair.

Which drive-end details should be checked for 129953-77010?

Compare the two Ø13.5 mounting holes, Ø120 face, Ø95 locating reference, 30° upper-ear orientation and 21 mm pinion-side value. Count nine teeth and confirm module 3. A straight drive-end photograph is essential because the motor body can resemble other compact diesel starters while the ear angle or pinion position is different.

How do S13-138 and 19694N help identify 129953-77010?

They provide additional search routes for the same purchasing enquiry. Keep S13-138 or S13-138A complete and include 19694N when it appears on the old unit. The references should be accompanied by the 4TNE98 or S4D106 application, 2.8kW label and measured face so the offer remains tied to the required product.

What information is useful for an urgent Komatsu S4D106 request?

Send the machine model and serial, S4D106 engine details, failure symptoms, all starter numbers and photographs before asking for dispatch. State the destination and latest acceptable arrival date. The sales team can then discuss the 129953-77010 configuration and available lead time while the workshop completes battery, cable and ring-gear checks at the jobsite.

How can a dealer set reserve stock for 129953-77010?

Count active 4TNE98 and S4D106 machines by branch, review previous starter consumption and consider distance to field sites. Separate emergency reserve from normal sales stock. After the 2.8kW nine-tooth configuration is confirmed, use machine population and replenishment time to set reorder points that reflect downtime exposure rather than a flat quantity for every location.

What should receiving inspect on a first batch of 129953-77010 starters?

Verify the 12V 2.8kW label, nine-tooth module 3 drive, mounting-ear orientation and terminal layout against the accepted sample. Inspect protection around the pinion and electrical studs and confirm carton labels. A documented sample check gives branch warehouses a quick reference before the units are allocated to Yanmar-engine or Komatsu-equipment customers.

Which checks help separate a starter fault from a jobsite electrical problem?

Measure loaded battery voltage, cable drop on both sides of the circuit, ground condition and solenoid signal. Confirm that the engine can rotate and inspect the ring gear if there is grinding. Attach readings and symptoms to the 129953-77010 request so purchasing does not treat every slow-crank event as a failed 2.8kW starter.

What belongs in a 129953-77010 wholesale quotation request?

Provide the engine and machine identity, 129953-77010, S13-138 or other complete markings, 12V 2.8kW label, mounting-face, pinion and terminal images, quantity, destination, deadline and packing preference. Elecdura can use those details to discuss product configuration, tiered pricing, first-lot inspection, production schedule and suitable shipping arrangements.

Request 129953-77010 Yanmar Starter Motor Distributor Pricing

Send the Yanmar 4TNE98 or Komatsu S4D106 engine and machine details, full 129953-77010 or S13-138 marking, rating label, mounting, pinion and terminal photographs, quantity, urgency, destination and packing request to info@elecdurauto.com. Elecdura will compare the 2.8kW unit and return distributor pricing and delivery options.
