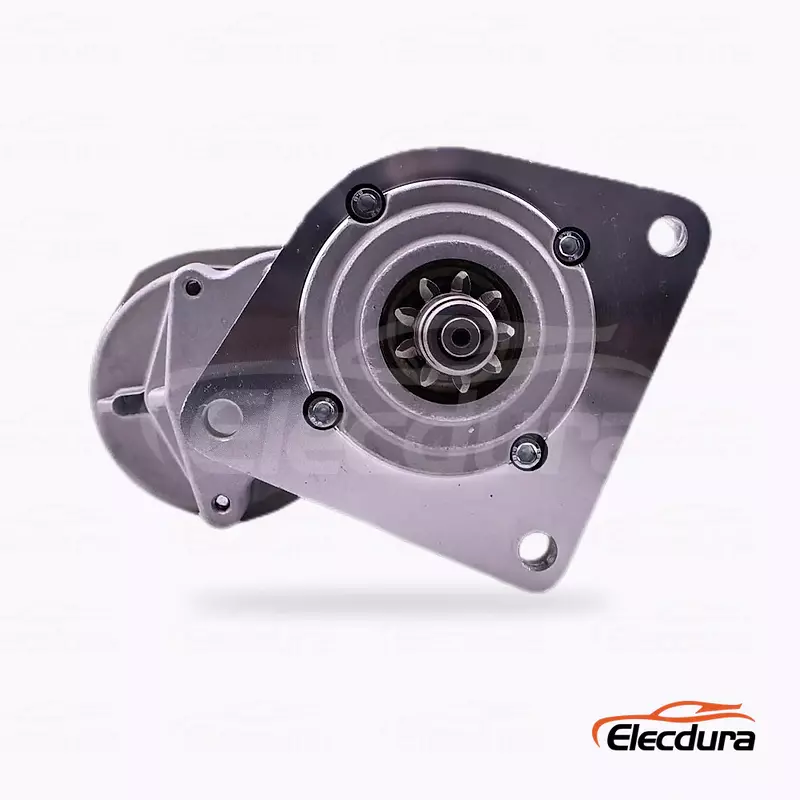

15481-63010 Kubota M6950 Starter Motor Wholesale Supply

15481-63010 Kubota M6950 Starter Motor Support for Tractor Dealers

15481-63010 is positioned for Kubota M6950 tractor service, where downtime often drives urgent purchasing. The 12V, 2.5kW and 9-tooth specification identifies the electrical and drive version, while the wide 146 mm three-hole face distinguishes it from smaller Kubota starters.

Send the tractor model or serial, old-unit label and straight mounting-face photograph. Elecdura will compare the nine-tooth pinion, 27 mm drive reference and terminal orientation before quoting, helping the dealer avoid receiving a unit that cannot seat on the engine.

15481-63010 Starter Motor Programs for Agricultural Parts Wholesalers

Elecdura can support a first tractor-fitment sample, followed by regular distributor quantities in neutral packaging. Private-label requests can include buyer artwork, barcodes and destination labels after the product identity and order volume are agreed.

1. Approve the sample on the stated M6950 application.

2. Store the mounting and terminal images with the dealer SKU.

3. Inspect each later lot against the nine-tooth and 146 mm controls.

Watch Elecdura starter-motor assembly and test procedures below. To turn the video capability into a relevant offer, provide the Kubota M6950 record, old-unit photos and planned stock quantity; Elecdura can respond with the sample route, packaging and lead time.

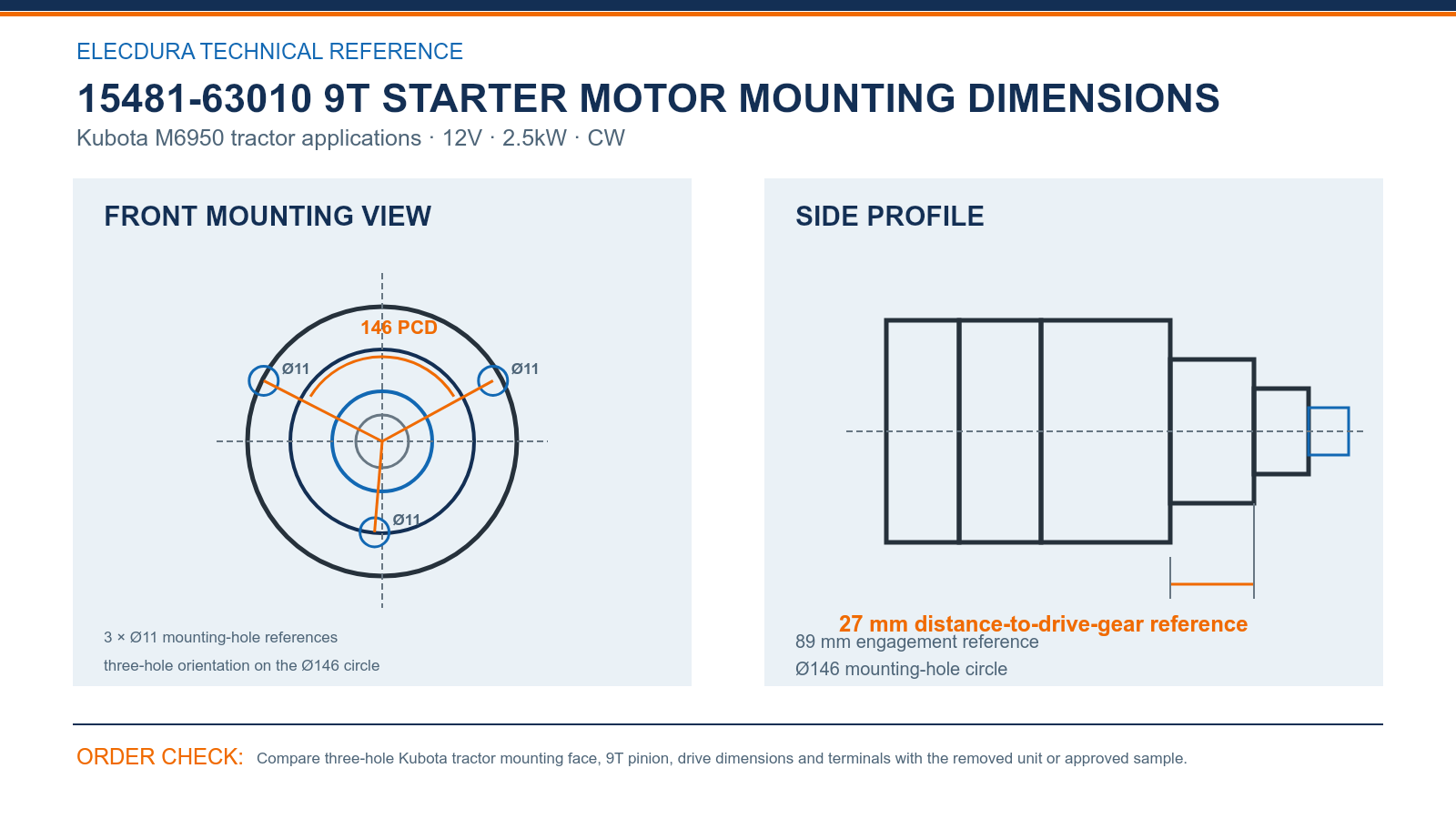

15481-63010 Starter Motor Specifications and B2B Fitment Drawing

15481-63010 9T starter motor mounting and drive-end dimensions for buyer sample comparison.

The M6950 application is supported by a larger Ø146 mounting-hole circle and a short 27 mm drive-gear distance. Those dimensions give agricultural-parts buyers a clear way to distinguish this 9-tooth Kubota starter from compact units that may share a similar Denso appearance.

Compare the three Ø11 holes, locating area and terminal orientation on the tractor’s removed starter. A receiving team can then use the same dimensions to inspect samples and later shipments without relying on carton labels alone.

15481-63010 Kubota Starter Motor Dimensions for Wholesale Orders

References 15481-63010, 15481-63012 and Denso 028000-7730 through -7732 are used to locate the replacement group. The dimensional check is equally important: three Ø11 holes lie on the 146 mm circle, with an 89 mm engagement and 27 mm drive-gear distance.

Use calipers and center measurements on the removed unit, then retain the result with the M6950 record. That file gives purchasing, workshop and receiving teams the same physical definition for seasonal replenishment.

15481-63010 Starter Motor Wholesale FAQ

What makes 15481-63010 specific to the Kubota M6950 inquiry?

The M6950 tractor record, 12V 2.5kW rating, nine-tooth pinion and wide three-hole mounting face should agree. Do not rely on Kubota branding alone because the manufacturer used different starters across tractor families. A readable label or service number plus a straight face photo lets the supplier determine whether this is the correct replacement group.

How should the 146 mm mounting circle be checked?

Measure between the centers of the three mounting positions or use a suitable template based on the approved unit. The technical image identifies the 146 mm circle, but it should not be scaled from the screen. Record the actual measurement and note which holes are threaded so a casting with a smaller or differently oriented triangle is rejected early.

Why does the 27 mm drive reference matter on this Kubota starter?

The distance to the drive gear affects how the pinion meets the ring gear. A starter can bolt to the engine yet engage too deeply or too shallowly if the nose and resting position differ. Compare the 27 mm reference and pinion location with the removed unit, then listen for clean engagement during the sample installation.

Can 028000-7730 be used to order 15481-63010?

It belongs to the same replacement search group and is useful when the Kubota label is missing. Preserve the complete Denso suffix and verify the M6950 application, 12V 2.5kW rating, nine teeth and mounting dimensions. If an 028000-7730-family unit has another face or terminal arrangement, it should remain a separate purchasing line.

What photographs should an agricultural dealer provide?

Send the full starter profile, readable label, clean pinion, straight mounting face and rear terminal view. Include the tractor plate or service record. These images let the supplier compare tooth count, face width, solenoid clocking and cable connections. A single angled photo usually hides the very differences that cause installation delays during a busy season.

How should seasonal 15481-63010 stock be received?

Inspect units from several cartons before allocating them to branches. Check complete references, nine-tooth pinions, wide three-hole castings, terminal protection and packing. Compare one sample with the approved M6950 unit and record the lot. Holding mixed or damaged pieces before the planting season is much cheaper than handling urgent field returns.

What packaging protects this Kubota starter in export shipments?

The carton and inner supports should prevent the heavy starter from striking its terminals or drive end. Neutral packaging is suitable for standard orders, while private-label cartons can be reviewed for qualified volumes. Keep the product reference, voltage and lot identity visible so the importer can receive and trace the shipment even when branded artwork is used.

Which facts should appear in a 15481-63010 quote request?

Provide the tractor model or serial, full Kubota or Denso number, quantity, destination, required date and preferred packaging. Add pinion, mounting and terminal photographs and state whether a sample is required. With those details, Elecdura can quote one verified nine-tooth version and explain MOQ, normal lead time, warranty and inspection arrangements.

Request a 15481-63010 Starter Motor Wholesale Quote

Send 15481-63010 or the full old-unit reference, Kubota M6950 model or serial details, nine-tooth and mounting-face photos, quantity, destination and packaging preference. Elecdura will return a 12V 2.5kW quotation tied to the 146 mm face and approved sample.

Mention whether the order supports dealer stock, workshop replacement or an M6950 fleet. Elecdura can match the commercial terms to the sample requirement and supply neutral or qualified private-label packaging with the necessary technical identity.
