23300-06J01 Nissan TD42 F03 24V 4.5kW Starter Motor Wholesale

23300-06J01 Nissan TD42 F03 Starter Motor for Forklift Parts Wholesalers

An F03 forklift that cannot start can stop pallet movement, loading or production support even when the engine itself is serviceable. A distributor enquiry should therefore connect 23300-06J01 with the TD42 engine, truck series, shift pattern, branch quantity and the date the customer needs the unit on site.

The three-ear face, Ø140 mounting reference and Ø105 locating diameter must agree with the removed starter. Confirm 11T, module 3 and the stated 4.5kW output together, because a nearby TD42 starter may share several numbers while using another housing, rating or installed cable position.

23300-06J01 24V 4.5kW Starter Dimensions for Material-Handling Buyers

A warehouse description that includes 23300-06J01, Nissan TD42, F03, 24V, 4.5kW, 11T and CW gives counter staff a usable product identity. It also lets purchasing compare quotations on the same configuration instead of mixing vehicle and lift-truck versions under a short TD42 label.

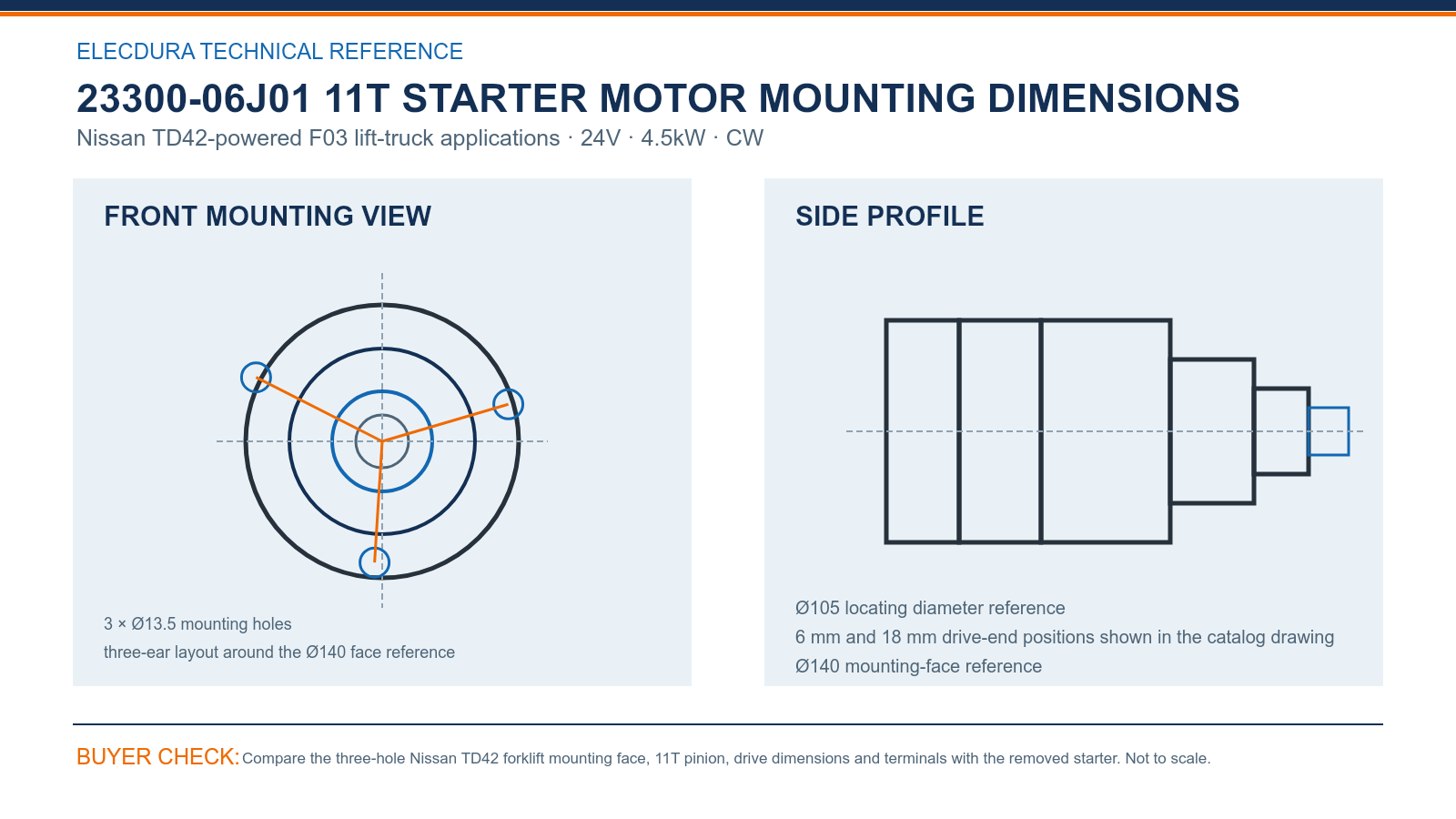

23300-06J01 Nissan TD42 F03 Starter Dimensions for Forklift Buyers — compare the drawing with the removed starter before placing a volume order.

Photograph all three ears squarely and compare the Ø140 face, Ø105 locating reference and the 6 mm and 18 mm drive positions. Add the terminal side with cables removed from view, allowing technical staff to check both mechanical seating and installed access before the first fleet quantity is dispatched.

23300-06J01 Reference Separation for Nissan F03 Fleet Procurement

23300-06J01 sits within a broad Hitachi group that includes S25-110, S25-142B, S25-162 and S25-164A. Use those numbers to locate candidates, then keep the forklift series and old-unit images on the same enquiry so a search match does not become an unsupported interchange promise.

Forklift fleets should forecast by active F03 units, daily starting cycles, shift coverage and distance from the service branch. A central warehouse can hold routine stock while high-utilization customer sites receive a smaller emergency reserve, all under the same confirmed 23300-06J01 physical identity.

23300-06J01 Forklift Starter Supply and High-Cycle Stock Support

Receiving staff should sample pinion count, mounting ears, nose machining, terminal protection and rating labels across the first shipment. Strong individual packing matters for heavy starters moving through multiple depots, and readable 23300-06J01 carton markings shorten the time required to issue the right unit during a breakdown.

Forklift-parts distributors can view Elecdura starter assembly and end-of-line electrical testing in the video below. Use the footage to align sampling, packing and repeat-order expectations, while the TD42 engine, F03 series and three-ear geometry continue to define the product being quoted.

23300-06J01 Nissan TD42 Forklift Starter Questions for Distributors

What identifies the correct 23300-06J01 unit for an F03 lift truck?

Provide the Nissan F03 truck series, TD42 engine plate, complete removed-starter marking and the stated 24V 4.5kW 11T configuration. Clear front, side and rear photographs should show all three ears and terminals. This gives the distributor a lift-truck-specific basis instead of treating every TD42 starter as the same warehouse item.

Why should daily starting cycles be included in an F03 fleet request?

Starts per shift and truck utilization show how quickly a fleet may consume service stock and how costly a no-start event would be. Combined with active truck count and branch response time, these figures help the distributor divide 23300-06J01 quantities between routine replenishment and emergency reserve without inflating every location equally.

How do the Ø140 face and Ø105 locating reference help forklift matching?

The two diameters describe where the three-ear starter seats and centers against the engine housing. Photograph the old face squarely, then compare the 6 mm and 18 mm drive positions from the side. This measured check can reject a similar TD42 unit before it reaches a warehouse fleet and interrupts scheduled handling work.

Can S25-162 or S25-164A be ordered as 23300-06J01 without further checks?

Use those Hitachi numbers to find candidate supply, then confirm the full suffix, F03 application, 11T module-3 pinion, mounting face and terminal orientation. A cross-reference narrows the search but does not show installed cable clearance or housing variation. Keep the accepted photographs with the purchase order and later branch transfers.

Which photos are most useful when the forklift cannot be moved to a workshop?

Take a readable label image, a square drive-end view, both body sides, a close pinion view and a rear terminal photograph before removing or shipping the starter. Include the truck plate and TD42 engine plate. These images allow a distributor to compare 23300-06J01 remotely and reduce a second service visit caused by an avoidable mismatch.

What should receiving staff verify on a bulk lot of F03 starters?

Check carton identity, rating labels, eleven-tooth pinions, all three ears, locating surfaces, solenoid studs and packing supports across a sample of the shipment. Compare the units with the accepted F03 image set and record the lot. Quarantine a different housing or terminal side before it is mixed with fleet-ready 23300-06J01 stock.

How can a branch label prevent TD42 vehicle and forklift stock from mixing?

Include 23300-06J01, Nissan F03, TD42, 24V 4.5kW and 11T on the bin card and carton label. Attach a small accepted drive-end image where the system permits. This wording keeps the industrial application visible even when another TD42 product shares several Nissan or Hitachi numbers in the search database.

Which commercial details should a forklift distributor send with an RFQ?

Send truck count, expected order quantity, annual consumption, delivery branches, required date, packing preference and any private-label or inspection request. Pair those details with the F03 and TD42 technical evidence. Elecdura can then review the physical starter and propose price breaks, production timing and shipment planning for the actual material-handling program.

Request 23300-06J01 Nissan TD42 Forklift Starter Distributor Terms

Send the Nissan F03 truck series, TD42 engine plate, complete 23300-06J01 or related marking, front, side and terminal photographs, fleet quantity, delivery location and required date to info@elecdurauto.com. Elecdura will review the lift-truck configuration and prepare distributor pricing, packing and shipment terms.
