23300-95011 Nissan UD FE6 Starter Motor Wholesale Supply

23300-95011 Starter Motor Supply for Nissan UD Truck Parts Distributors

Medium- and heavy-duty truck distributors can use a first FE6 sample to confirm the stated power, mounting and cable layout. Elecdura can follow with neutral-carton supply and review branded packaging for qualified programs.

The video shows Elecdura starter assembly and electrical testing. Send the FE6 truck details and old-unit rating with the request so the response can specify whether this 2.5kW version is the intended item and which sample checks are needed.

23300-95011 Nissan UD FE6 Starter Motor Help for Truck Buyers

23300-95011 is offered for Nissan UD trucks with the FE6 engine as a 12V, 2.5kW and 11-tooth configuration. Buyers should state that rating in the inquiry because many public FE6 replacement offers describe a 4.0kW version.

Send the truck model, year or chassis record, old-unit label and face/terminal photographs. Elecdura will compare the 105 mm engagement, 35 mm drive distance and Ø140 three-hole circle so the quotation identifies one version rather than blending different FE6 starters.

23300-95011 Nissan FE6 Starter Motor References for Distributor Stock

23300-95011, 23300-95017, S15-02, S15-03, S1502 and S1503 appear in the replacement family. These numbers help reconcile UD service records and rebuilt labels, but the selected 2.5kW rating must remain explicit.

Count the 11-tooth drive and compare all three Ø13.5 holes on the 140 mm circle. If the old unit is marked 4.0kW or has another nose depth, open a separate inquiry; do not rewrite the product specification to force a match.

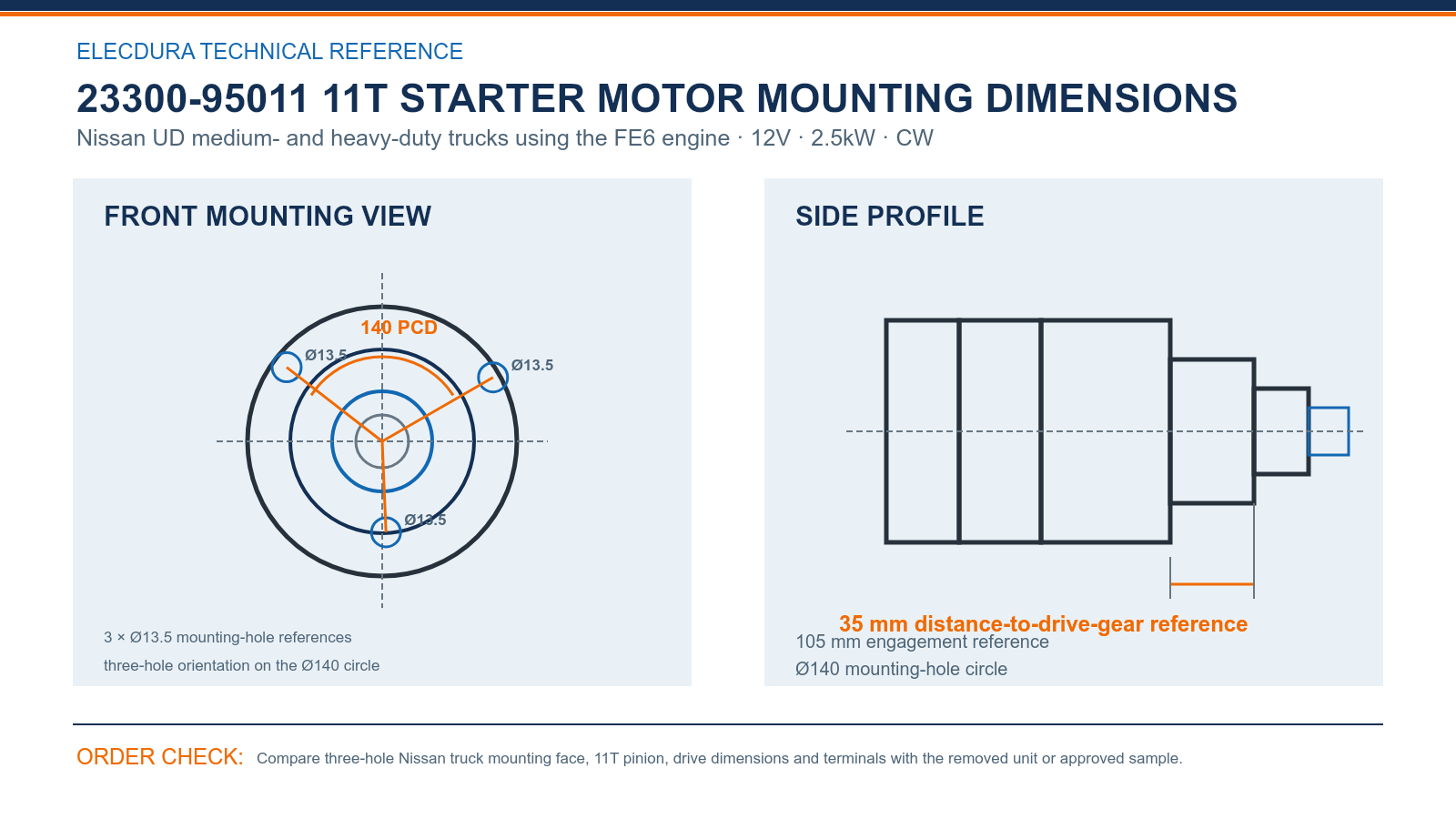

23300-95011 Starter Motor Specifications and B2B Fitment Drawing

23300-95011 11T starter motor mounting and drive-end dimensions for buyer sample comparison.

The FE6 market includes higher-output starter offers, so Nissan UD importers need dimensions that support the stated 12V 2.5kW product. A Ø140 mounting circle, 105 mm engagement and 35 mm drive-gear distance create a clear inspection set for the 11-tooth version.

Confirm the three Ø13.5 holes and terminal arrangement against the truck’s old starter. Put the measured values on the RFQ and sample report so the quotation cannot be mistaken for a 4.0kW FE6 unit sourced under a related number.

23300-95011 Starter Motor Wholesale FAQ

Why is the 2.5kW rating emphasized for 23300-95011?

This product is specified as 12V and 2.5kW, while many open-market FE6 offers describe a 4.0kW starter. The RFQ, quotation and purchase order should therefore state 2.5kW and be compared with the old-unit label. A buyer needing the 4.0kW configuration should request it as a separate version rather than treating the ratings as interchangeable.

Which Nissan UD information is needed before quoting this starter?

Provide the truck series or model, production year, chassis information and FE6 engine record, plus the complete starter label. Nissan UD medium- and heavy-duty trucks can have different starter versions across years and markets. These truck details help Elecdura limit the offer and compare the correct power, mounting face and terminal layout.

How should Hitachi S15-02 and S15-03 references be used?

They are useful cross-references for identifying the physical family, particularly when the Nissan label has been replaced during a rebuild. Preserve the complete Hitachi number and check it against 23300-95011 or 23300-95017. Then confirm the selected 2.5kW output, 11 teeth, three-hole face and terminals before placing both numbers under one distributor SKU.

What do the 105 mm and 35 mm dimensions confirm?

The 105 mm engagement and 35 mm distance-to-drive-gear references describe the position of the drive relative to the mounting face. Compare them with the removed unit and approved sample. A starter with the same bolt pattern but another nose depth can create poor ring-gear engagement, noise or immediate installation failure on an FE6 truck.

How is the Ø140 Nissan truck mounting face checked?

Measure the three Ø13.5 hole positions around the 140 mm circle from a face-on view and note their orientation relative to the solenoid. The online technical image is a reference, not a scale drawing. Record actual centers and identify any threaded positions so receiving teams can distinguish this heavy-duty casting from a similar-looking face.

What should a fleet workshop record during the sample trial?

Record the truck and engine identity, old and supplied ratings, battery condition, cable voltage drop, mounting fit, terminal clearance and cranking behavior. Photograph the installed starter and label. These observations show whether the 2.5kW sample meets the identified fleet requirement and give the buyer a practical basis for a larger order or a request for another version.

How should a 23300-95011 shipment be separated at receiving?

Check cartons across the lot for the specified 2.5kW label, 11-tooth pinion, Ø140 casting, terminal protection and full Nissan or Hitachi reference. Hold any unit marked 4.0kW or carrying a different drive end. Record pass, fail and hold quantities before stock is released, preventing two FE6 versions from being mixed in the same bin.

What information supports a fast Nissan UD wholesale offer?

Send the complete reference, truck model, chassis or year, FE6 engine record, old-unit rating and clear product photographs. Add quantity, destination, required date, carton request and sample requirement. Elecdura can then return the selected product specification, MOQ, normal lead time, warranty and packing information without leaving the critical power-version question ambiguous.

Request a 23300-95011 Starter Motor Wholesale Quote

Send 23300-95011 or the full Nissan/Hitachi reference, UD truck model and FE6 details, old-unit power label, mounting and terminal photos, quantity and destination. Elecdura will quote the specified 12V 2.5kW 11T version with its sample and packaging terms.

Make the required 2.5kW rating visible on the RFQ and provide the FE6 truck market served by the order. Elecdura can respond with sample, inspection and packing terms for this version without mixing it with a higher-output Nissan UD starter.
